Restore Full Power — OEM-Grade Armature Built for the G18SE3 7" Angle Grinder
The ID HQ Series Armature [G18SE3] is a precision-engineered replacement armature designed specifically for the 7" angle grinder, delivering reliable electro-mechanical energy conversion to restore full tool performance. Built with a high-grade magnetic core, precision copper winding, and a durable commutator assembly, this genuine spare part (Part No. 30371) ensures your grinder operates at peak efficiency with minimal downtime.
| Key Features | Perfect For |
|
|
- Precision Copper Winding for Maximum Power Output: The armature features tightly wound, high-conductivity copper coils that efficiently convert electrical energy into rotational mechanical force. The winding geometry is engineered to minimise resistance and heat generation, ensuring the grinder sustains its rated RPM under heavy load without premature thermal failure.
- Laminated Magnetic Core for Reduced Energy Loss: The core is constructed from stacked silicon steel laminations, a design that significantly reduces eddy current losses common in solid-core alternatives. This results in a cooler-running, more energy-efficient armature that translates directly into longer motor life and consistent cutting or grinding performance.
- Precision-Machined Commutator for Reliable Brush Contact: The multi-segment copper commutator is machined to tight tolerances, guaranteeing uniform surface contact with the carbon brushes at all times. This eliminates erratic sparking, reduces brush wear, and maintains a stable electrical connection — critical for consistent tool speed and control during demanding grinding applications.
- Direct OEM-Compatible Fit for the G18SE3 Platform (Part No. 30371): Every dimension — shaft diameter, core length, and commutator geometry — is matched precisely to the original G18SE3 motor housing and bearing seats. This ensures a zero-adjustment, drop-in installation that restores the grinder to factory performance specifications without the need for machining or adapter components.
- Durable Construction for High-Demand Industrial Use: The armature assembly is built to withstand the continuous vibration, elevated temperatures, and mechanical stress inherent to heavy-duty 7" angle grinding tasks including metal cutting, weld dressing, surface preparation, and stone grinding. The materials and manufacturing process are selected to deliver service life comparable to the original equipment.
- Cost-Effective Repair Over Full Motor or Tool Replacement: By replacing only the failed armature rather than the entire motor assembly or tool, users can restore the G18SE3 to full working condition at a fraction of the cost. This makes the ID HQ Series Armature an economically sound choice for professional repair workshops, rental fleets, and high-volume construction sites where tool uptime is critical.

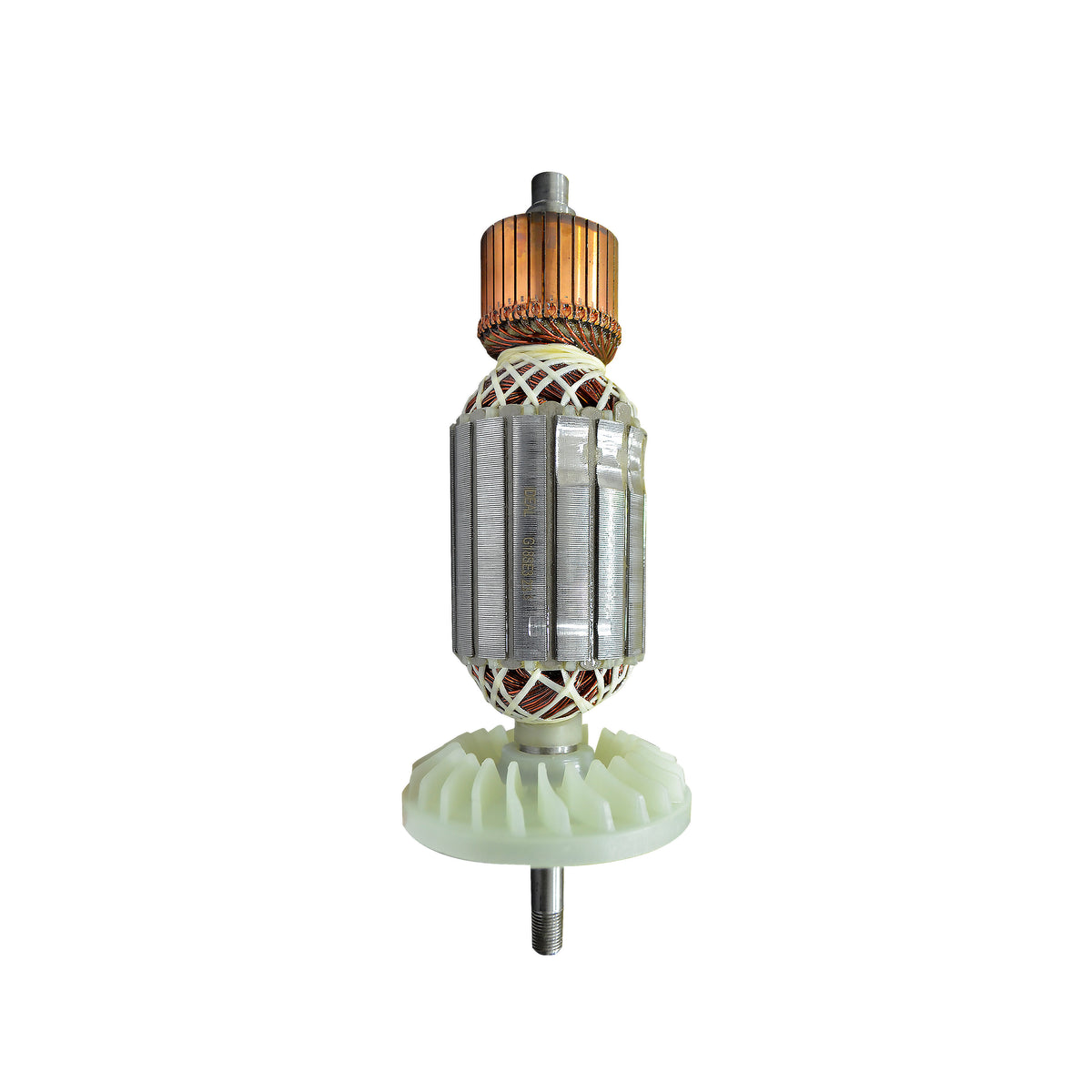

This armature spare part (Part No. 30371) is supplied as a complete armature assembly ready for installation into the ID G18SE3 7" angle grinder. The package includes the armature unit with its pre-assembled commutator and wound core, allowing technicians to proceed directly with the repair without sourcing additional sub-components.
General Purchase & Comparison Queries
Is this armature compatible with my ID G18SE3 7" angle grinder?
Yes. This armature (Part No. 30371) is engineered exclusively for the ID HQ Series G18SE3 7" angle grinder. Every critical dimension — including the shaft diameter, core length, and commutator geometry — is matched to the original motor housing. If you own a G18SE3 model, this is a direct drop-in replacement requiring no modifications.
Is it better to replace the armature or buy a new angle grinder?
In most cases, replacing the armature is significantly more cost-effective than purchasing a new tool, particularly for a professional-grade grinder like the G18SE3. The armature is the primary wear component in the motor; if the tool housing, gear assembly, and guards are intact, a new armature restores the grinder to full OEM performance at a fraction of the replacement cost.
How does the ID HQ Series armature compare to generic aftermarket alternatives?
Generic aftermarket armatures are often manufactured to looser tolerances and may use lower-grade copper winding and core laminations. The ID HQ Series armature is built to OEM specifications, meaning the winding resistance, core dimensions, and commutator finish are matched to the original design. This translates to a more reliable repair, longer service life, and consistent tool performance compared to generic substitutes.
Product-Specific and Usage Queries
What does the armature do inside the angle grinder motor?
The armature is the rotating component at the heart of the angle grinder's electric motor. It consists of a laminated magnetic core wound with copper coils and fitted with a commutator. When electrical current flows through the windings via the carbon brushes and commutator, it interacts with the stator's magnetic field to generate rotational torque, which drives the grinder's spindle and disc.
Can I install this armature myself, or do I need a technician?
The armature replacement is a direct drop-in installation for the G18SE3 motor housing. Experienced users comfortable with power tool disassembly can perform the swap using standard tools. However, if you are unfamiliar with motor assembly procedures, it is recommended to have the installation carried out by a qualified power tool repair technician to ensure correct seating of bearings, brush alignment, and reassembly of the gear housing.
What are the signs that my G18SE3 armature needs replacing?
Common indicators of a failed or failing armature include: excessive sparking inside the tool body, a burning smell during operation, significant loss of power or erratic speed, the motor failing to start despite power being present, or visible burn marks on the commutator or windings. If you observe any of these symptoms, stop using the tool immediately and inspect the armature before further operation.
Problem/Solution-Oriented Queries
My G18SE3 grinder has lost power but the brushes look fine — could it be the armature?
Yes. If the carbon brushes are within acceptable wear limits and the tool still exhibits reduced power, intermittent operation, or overheating, the most likely culprit is a shorted or open-circuit armature winding. A winding fault causes the motor to draw excessive current without producing proportional torque, leading to heat build-up and power loss. Replacing the armature with Part No. 30371 should resolve the issue.
The grinder sparks heavily inside — is this an armature or brush problem?
Heavy, uneven sparking can result from either worn carbon brushes or a damaged commutator surface on the armature. First, inspect and replace the brushes if worn. If sparking continues with new brushes, the commutator segments on the armature are likely pitted, unevenly worn, or have a shorted winding — all conditions that require armature replacement. The ID HQ Series armature (Part No. 30371) features a freshly machined commutator to restore clean brush contact.
Will a new armature fix my grinder if it stops mid-use and won't restart?
If the grinder stops suddenly during use and will not restart — but the power supply, switch, and brushes test correctly — there is a strong likelihood of a thermally failed or open-circuit armature winding. Excessive heat from a failing armature can cause winding insulation to break down, creating an open circuit. Replacing the armature with the ID HQ Series Part No. 30371 and ensuring adequate ventilation during operation should restore normal function.
