Restore Full Power — The Precision Armature That Keeps Your Angle Grinder Running at Peak Performance

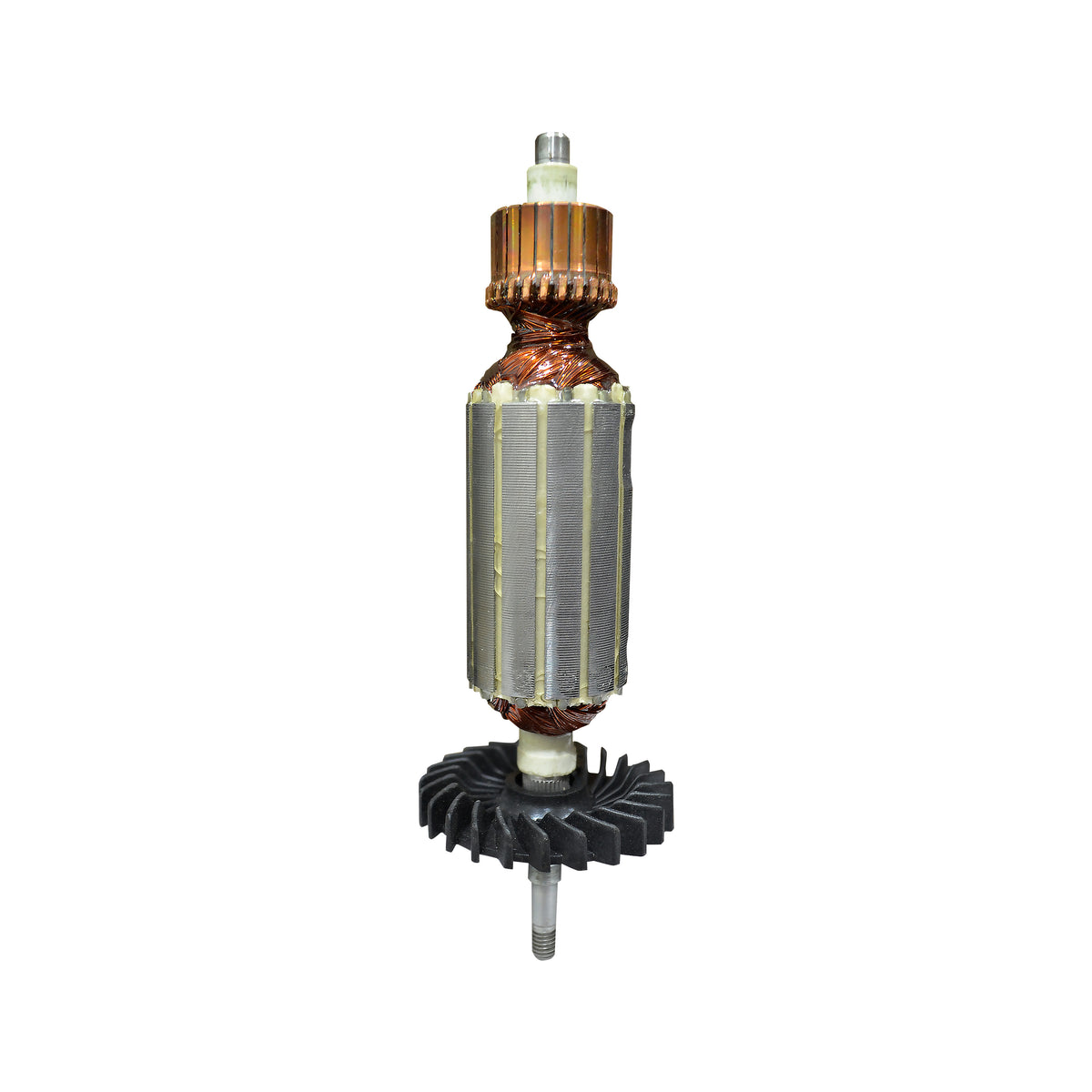

The ID HQ Series Armature for the DW4120 4.5" Angle Grinder is a precision-engineered power tool spare part designed as a direct replacement for Makita-type angle grinder armatures. Featuring a high-grade magnetic core, precision-wound copper coils, and a machined commutator, this angle grinder armature restores full motor performance and extends the working life of your tool. Identified by part reference 30385, it is the trusted choice for power tool repair, maintenance workshops, and professional service technicians.
| Key Features | Perfect For |
|---|---|
|
|
- Makita-Type Direct Fit (Part Ref: 30385): Engineered as a drop-in replacement for the DW4120 4.5" angle grinder, this armature matches the original OEM dimensions, shaft diameter, and commutator segment count — eliminating guesswork and reducing installation time for technicians and experienced DIY users alike.
- High-Grade Magnetic Core Construction: The laminated silicon steel core minimises eddy current losses, ensuring that electrical energy is efficiently converted into rotational mechanical energy. This results in stronger torque delivery, reduced motor temperature, and a noticeably more responsive grinder during demanding cutting and grinding tasks.
- Precision Copper Winding for Thermal Stability: Each armature is wound with high-conductivity copper wire, carefully layered to optimise current flow and distribute heat evenly across the winding. This reduces the risk of insulation breakdown and premature failure, especially under sustained heavy-load operation common in metalworking and masonry applications.
- Machined Commutator for Consistent Brush Contact: The precision-turned commutator provides a smooth, uniform surface for carbon brush contact, reducing arcing, brush wear, and electrical noise. A well-machined commutator is critical to the longevity of the entire motor assembly and helps maintain steady RPM under variable load conditions.
- HQ Series Build Quality — Engineered for Durability: Part of the ID HQ (High Quality) Series, this armature undergoes stricter manufacturing tolerances than standard aftermarket parts. The result is a spare component that performs closer to OEM specification, offering repairers and end users a reliable, long-lasting solution rather than a short-term fix.
This armature spare part is supplied as a tested replacement component and is compatible with Makita-type 4.5" angle grinder motors of the DW4120 configuration. It is packaged to prevent transit damage and arrives ready for installation by a competent technician or experienced user.
General Purchase & Comparison Queries
Is this armature compatible with my angle grinder?
This armature is specifically designed for Makita-type 4.5" angle grinders of the DW4120 configuration and is listed under part reference 30385. If your grinder shares this motor configuration, this is a direct-fit replacement. We recommend verifying your tool's model number and existing armature part number before purchasing to ensure full compatibility.
How does the ID HQ Series compare to a standard aftermarket armature?
The ID HQ (High Quality) Series is manufactured to tighter tolerances than standard aftermarket spare parts. This means better dimensional accuracy, higher-grade copper winding, and a more precisely machined commutator — all of which translate to longer service life, more stable RPM under load, and a repair that holds up to professional use rather than needing replacement again in short order.
Is it more cost-effective to replace the armature or buy a new angle grinder?
In most cases, replacing the armature spare part is significantly more economical than purchasing a new grinder, particularly for quality tools. The armature is one of the most common failure points in an angle grinder's motor, and a precision replacement from the ID HQ Series restores full performance at a fraction of the cost of a new unit — making it the preferred choice for workshops, tradespeople, and repair-minded users.
Product-Specific and Usage Queries
What does an armature do in an angle grinder?
The armature is the rotating core of the angle grinder's electric motor. It consists of a laminated magnetic core, copper windings, and a commutator. When electrical current passes through the windings, it interacts with the stator's magnetic field to generate rotation — converting electrical energy into the mechanical energy that drives the grinder's disc. A worn or burnt armature results in loss of power, excessive sparking, or complete motor failure.
Can I install this armature myself, or do I need a technician?
Armature replacement requires disassembly of the angle grinder motor housing, careful handling of the brush assembly, and correct reassembly to ensure safe operation. Experienced DIY users with familiarity in power tool repair can complete this task, but for best results — and to ensure the tool operates safely — we recommend installation by a qualified power tool repair technician. Always disconnect the tool from power before beginning any repair work.
What are the signs that my angle grinder armature needs replacing?
Common symptoms of a failing or burnt armature include: a noticeable reduction in motor power or speed, excessive sparking from the brush area, a burning smell during operation, the tool failing to start despite a working power supply, or visible charring/discolouration on the commutator segments. If your grinder displays any of these signs, the armature should be inspected and replaced as necessary to prevent further motor damage.
Problem/Solution-Oriented Queries
My angle grinder has lost power and sparks excessively — will a new armature fix this?
Excessive sparking and power loss are among the most common indicators of armature failure, often caused by worn commutator segments, shorted windings, or damaged insulation. In many cases, replacing the armature with a quality unit like this ID HQ Series DW4120 armature (Part Ref: 30385) will fully restore motor performance. However, it is also advisable to inspect the carbon brushes and stator at the same time, as prolonged running with a faulty armature can cause secondary wear to these components.
The replacement armature I fitted previously failed quickly — what could cause this?
Premature failure of a replacement armature is usually caused by one of the following: fitting a low-quality aftermarket part with substandard winding or commutator finish; failing to replace worn carbon brushes at the same time (worn brushes create uneven contact and accelerate commutator damage); or an underlying electrical fault such as a shorted stator that continues to damage new armatures. The ID HQ Series addresses the quality aspect — but always pair a new armature with fresh brushes and a stator inspection for a complete, lasting repair.
I can't find the exact part number for my grinder — how do I confirm this is the right armature?
To confirm compatibility, cross-reference the part reference number 30385 with your existing armature's label or your tool's service manual. Key physical checks include: shaft diameter, overall armature length, commutator diameter, and number of commutator segments. If you are uncertain, please contact our team with your grinder's model number and we will help confirm whether this DW4120 Makita-type armature is the correct fit before you purchase.
