Restore Full Cutting Power — Precision-Built Armature for the DeWalt DW28700

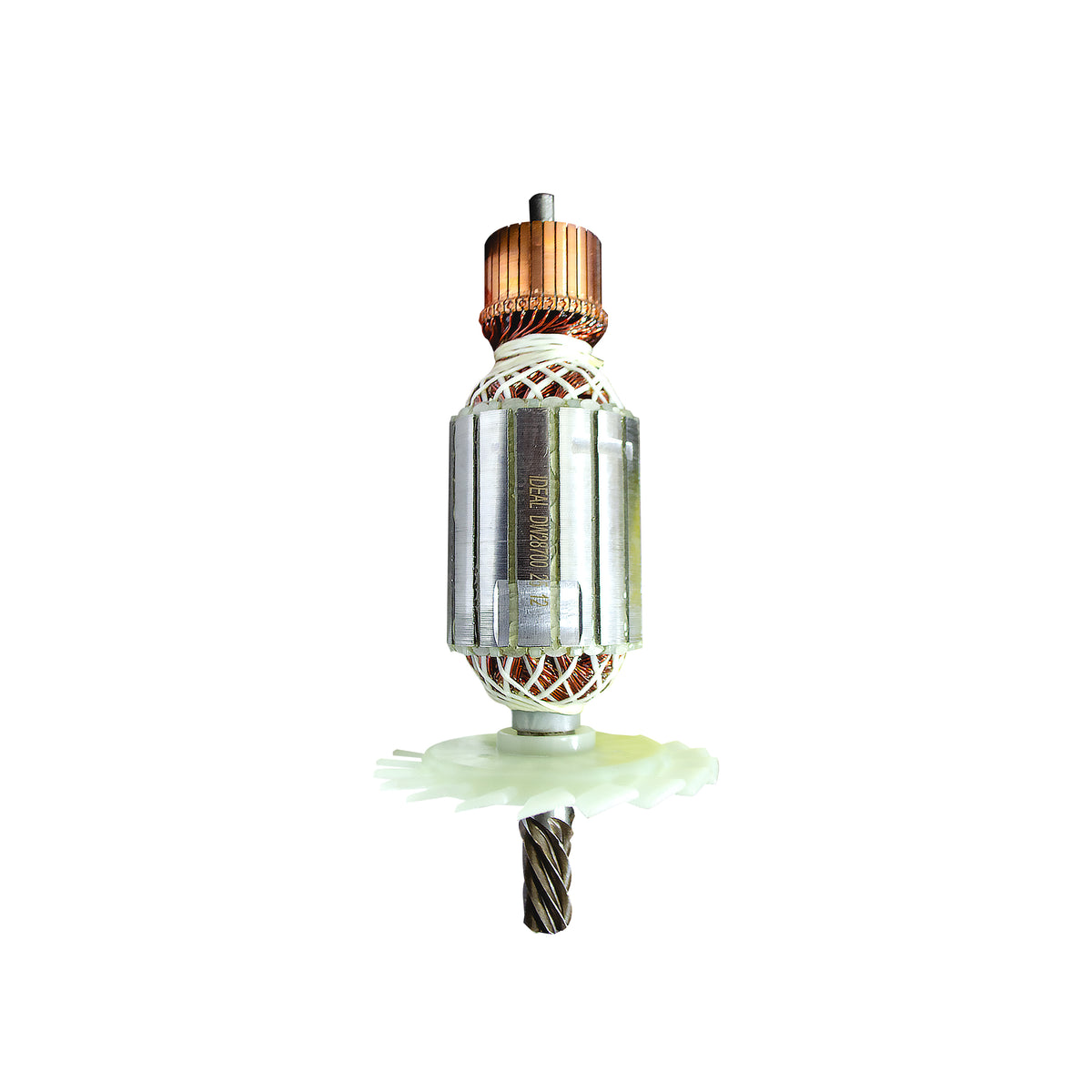

The ID HQ Series Armature for DW28700 14" Cut-Off Saw (Part No. 30297) is a precision-engineered OEM-compatible replacement armature designed to restore full performance to your DeWalt DW28700 cut-off saw. Built with a high-grade magnetic core, copper windings, and a precision-balanced commutator, this power tool spare part delivers reliable energy conversion from electrical to mechanical, ensuring your saw runs at peak efficiency.
| Key Features | Perfect For |
|---|---|
|
|
- Exact-Fit Compatibility (Part No. 30297): Engineered specifically as a drop-in replacement armature for the DeWalt DW28700 14" cut-off saw, this part eliminates guesswork during repair. The shaft dimensions, commutator diameter, and winding specifications are matched to OEM tolerances, ensuring a secure fit without modification.
- High-Efficiency Magnetic Core: The laminated magnetic core minimises eddy current losses, allowing maximum electrical energy to be converted into rotational mechanical force. This translates to consistent RPM output and reduced heat generation during extended cutting sessions.
- Precision Copper Winding: The armature features tightly wound copper coils with high-purity conductors that maintain low electrical resistance. This ensures that the motor draws power efficiently, reducing strain on brushes and other internal components — a key factor in power tool motor longevity.
- Balanced Commutator for Smooth Operation: The precision-turned commutator maintains consistent contact with carbon brushes throughout its rotation, minimising arcing and electrical wear. A well-balanced commutator also reduces mechanical vibration, protecting bearings and gears downstream in the drivetrain.
- Heavy-Duty Construction for Professional Use: This HQ Series armature is manufactured to withstand the high thermal and mechanical demands of cutting ferrous metals, masonry, and other tough materials. Whether used on a job site or in a workshop, the armature maintains structural integrity through repeated heavy-duty cycles.
- Restores Original Saw Performance: A worn or damaged armature is one of the most common causes of reduced RPM, excessive sparking, overheating, or complete motor failure. Replacing it with this genuine-spec spare part (30297) directly restores the DW28700 to its rated cutting capacity and motor output.
This armature is supplied as a complete replacement unit. It is compatible with the standard brush and bearing configuration of the DW28700, and is designed for straightforward installation by qualified repair technicians or experienced users familiar with power tool motor servicing.
General Purchase & Comparison Queries
Is this armature compatible with the DeWalt DW28700 14" Cut-Off Saw?
Yes. The ID HQ Series Armature (Part No. 30297) is specifically designed as a direct replacement for the DeWalt DW28700 14" cut-off saw. It matches the original OEM shaft diameter, commutator dimensions, and winding specifications for a precise, modification-free fit.
How does this armature compare to the original DeWalt spare part?
The HQ Series armature is manufactured to OEM-equivalent tolerances, using high-purity copper windings and a laminated magnetic core comparable to the original factory part. In many cases, the build quality and thermal performance are on par with or exceed standard replacement options, at a more accessible price point for repair professionals and end users.
Can I use this armature for preventive maintenance, or only for repair?
While most users replace the armature when they experience symptoms of motor failure — such as reduced RPM, overheating, or excessive sparking — it is also a sound choice for preventive maintenance. If your saw has seen heavy use and the armature is showing signs of commutator wear or insulation degradation, replacing it proactively prevents unexpected tool downtime.
Product-Specific and Usage Queries
What is the role of the armature in the DW28700 cut-off saw?
The armature is the rotating core of the motor. It consists of a laminated magnetic core, copper windings, and a commutator. When electrical current passes through the windings, the armature generates a magnetic field that interacts with the stator, producing the rotational force that drives the saw's abrasive cutting disc. A damaged or worn armature directly reduces cutting power and efficiency.
Do I need to replace the carbon brushes when fitting this armature?
It is strongly recommended to inspect and replace the carbon brushes whenever the armature is replaced. Worn brushes can score the new commutator surface, reducing the lifespan of the replacement part. Fitting a fresh set of brushes alongside this Part No. 30297 armature ensures optimal contact and extends the overall service interval of the motor.
Is this armature suitable for heavy-duty or continuous use applications?
Yes. The HQ Series armature is constructed to handle the thermal and mechanical demands of cutting ferrous metals, steel, and masonry materials that are typical of the DW28700's intended applications. The laminated core design minimises heat buildup, and the precision-wound copper coils maintain low resistance even during sustained heavy-duty operation.
Problem/Solution-Oriented Queries
My DW28700 is sparking excessively and losing power — will replacing the armature fix this?
Excessive sparking and power loss are classic symptoms of a worn or damaged armature. A degraded commutator surface, shorted windings, or a burnt coil all cause irregular current flow, leading to arcing at the brush contact points. Replacing the armature with this Part No. 30297 unit — along with a fresh set of carbon brushes — is the most direct solution to restore normal motor operation.
My saw is overheating quickly. Could a faulty armature be the cause?
Yes. A damaged armature with shorted windings or increased electrical resistance generates significantly more heat than normal during operation. If your DW28700 cut-off saw is overheating within a short time of use, it is a strong indicator that the armature is failing. Fitting this replacement armature will restore efficient energy conversion and reduce abnormal motor heat generation.
The saw motor runs but the disc spins slowly — is this an armature issue?
Slow disc rotation at full trigger engagement is often caused by an armature with damaged or partially shorted windings, which reduces the effective torque and RPM output of the motor. Before replacing the armature, it is worth ruling out a worn drive belt or disc flange issue. However, if the motor itself is confirmed to be underperforming, the HQ Series replacement armature (30297) is the appropriate corrective part for the DW28700 motor assembly.
