ID HQ SERIES ARMATURE [5007C] CIRCULAR SAW SPARE PART [Hitachi Type] - 30114

This armature is engineered to the Hitachi 5007C circular saw specification and is compatible with Hitachi-type circular saw models that share the same motor frame and armature dimensions. The product reference is SKU 30114. If you are unsure of your model's compatibility, we recommend checking your tool's model plate or contacting us with your saw's model number before purchasing.

Replacing a worn or burnt armature is significantly more cost-effective than purchasing a new tool. At AED 39.00, this HQ Series armature restores your circular saw to full operating condition for a fraction of the cost of a new unit. It also reduces waste and downtime — particularly valuable for contractors and workshops where tool availability is critical.

The ID HQ Series by Ideal Power Tools is held to a higher quality assurance standard than generic aftermarket parts. Each armature is checked for dimensional accuracy, winding insulation resistance, and commutator concentricity. This means you get a part that closely matches the original OEM specification — reducing the risk of premature failure, overheating, or incompatibility that is common with low-grade generic alternatives.

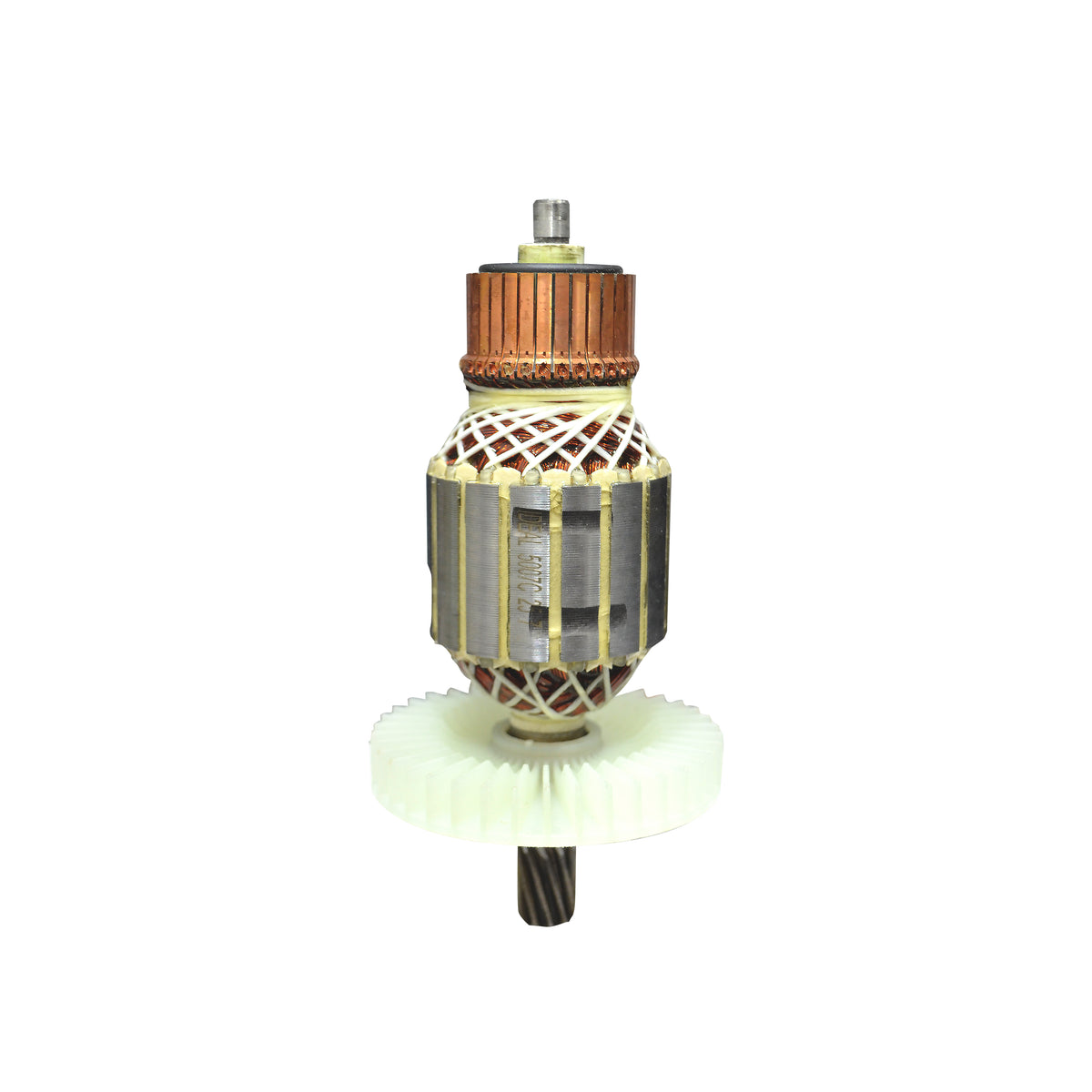

The armature assembly consists of three core components working in unison: the laminated steel magnetic core, which minimises energy loss; the precision copper winding, which carries the electrical current to generate magnetic flux; and the copper commutator, which transfers current to the carbon brushes and enables continuous rotation. Together, these elements convert the electrical input from the power supply into the mechanical rotational force that drives the circular saw blade.

This armature is designed as a direct drop-in replacement, meaning no machining or custom modification is required. However, armature replacement involves disassembling the motor housing, handling electrical windings, and reassembling under correct torque. It is recommended for individuals with hands-on power tool repair experience or qualified service technicians. If you are not confident working inside a power tool motor, we advise having the part fitted by a professional repair centre.

Yes — when correctly installed, an HQ Series armature wound to the original turn-count and gauge specification will restore your circular saw's rated RPM and torque output. The precision copper winding ensures the motor draws the correct current load, while the machined commutator maintains consistent brush contact for smooth, stable power delivery across the full operating range.

Yes, a failing or burnt armature is one of the most common causes of overheating, power loss, and erratic performance in circular saws. Signs of armature failure include excessive sparking at the brushes, burning smell, reduced blade speed under load, or the tool failing to start. If your saw exhibits any of these symptoms, inspecting and replacing the armature with the ID HQ Series 5007C armature (SKU 30114) is a reliable first-line repair.

Heavy sparking is typically caused by a worn or pitted commutator surface, a shorted winding, or uneven brush contact — all of which are symptoms of armature degradation. Replacing the armature with this HQ Series unit provides a freshly machined commutator with uniform surface geometry, which restores consistent brush contact and eliminates excessive arcing. Note: if the carbon brushes are also heavily worn, replacing them alongside the armature will give the best result.

To confirm fitment, cross-reference your circular saw's model number (found on the tool's rating plate or label) with the Hitachi 5007C specification this armature is built to. The key identifiers are the shaft diameter, overall armature length, commutator diameter, and winding voltage rating. If you have a previous armature to hand, these dimensions can be measured directly. For additional confirmation, contact Ideal Power Tools with your tool's model number and we can verify compatibility before you order.
