Restore Peak Impact Power — Engineered to Last Blow After Blow

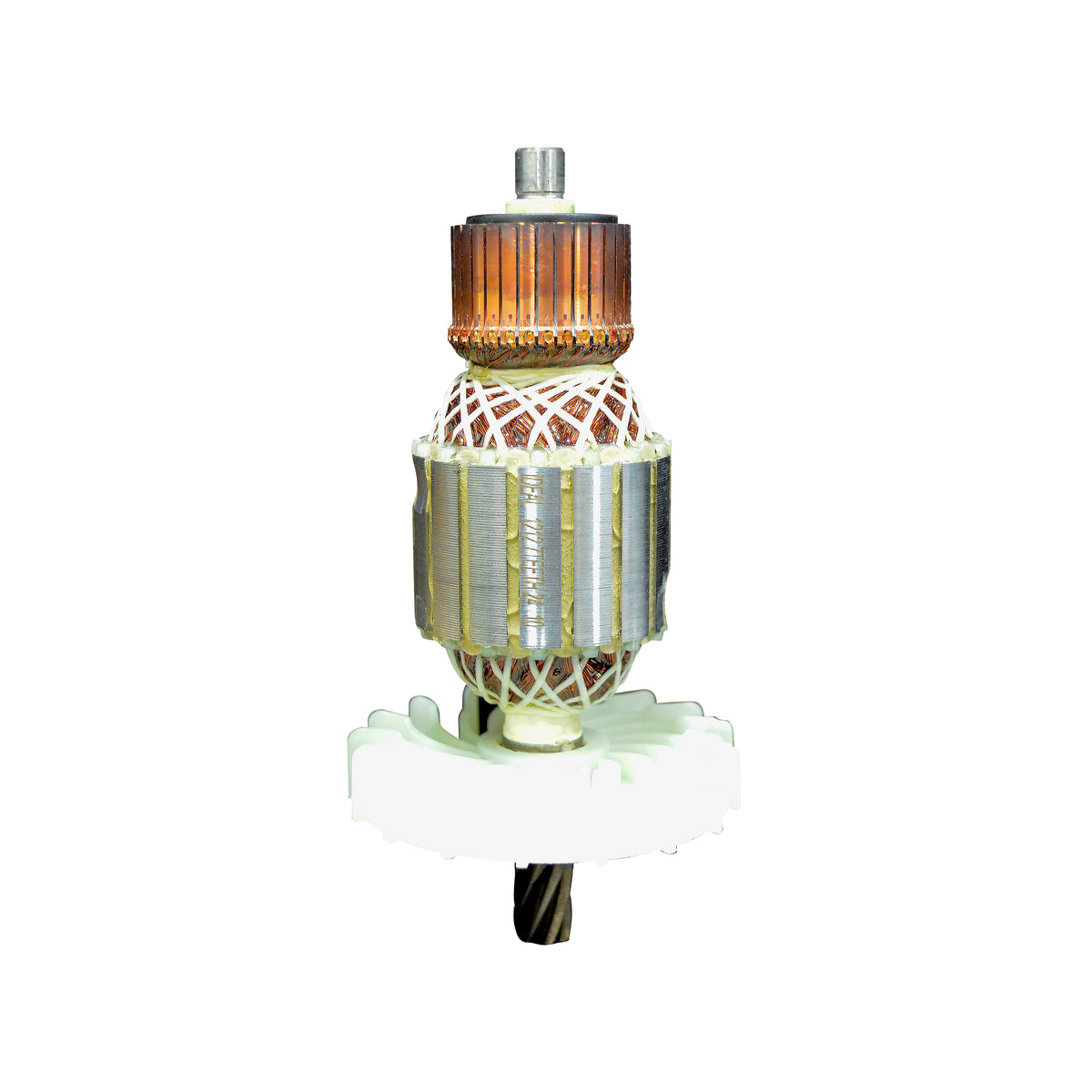

The ID HQ Series Armature [1212] [7 Teeth] is a premium demolition hammer spare part engineered for Makita-type 1212 demolition hammers. Built with high-grade copper windings and a 7-teeth helical shaft (spiral gear pinion), this replacement armature delivers precise electro-mechanical energy conversion, restoring your tool to full factory performance with a direct-fit installation.
| Key Features | Perfect For |
|
|
- High-Grade Copper Winding Construction: The armature is wound with premium-quality pure copper wire that ensures optimal electrical conductivity, minimal resistance, and superior heat dissipation — critical for sustaining power output during prolonged heavy-duty demolition work without performance degradation.
- 7-Teeth Helical Spiral Gear Pinion Shaft: The 7-teeth helical gear drive is machined to precise tolerances, enabling smooth, efficient torque transfer from the armature to the hammer mechanism. The helical tooth profile reduces gear noise, distributes impact loads evenly, and extends drivetrain service life compared to straight-cut alternatives.
- Dynamically Balanced Precision Rotor: Each armature undergoes dynamic balancing to eliminate micro-vibrations that accelerate bearing wear, degrade brush contact, and cause premature motor failure. The result is a noticeably smoother operation, reduced operator fatigue, and extended tool longevity even under continuous high-RPM conditions.
- Reinforced Commutator for High-RPM Reliability: The reinforced commutator segments are engineered for consistent electrical contact with carbon brushes across thousands of operating hours. The precision-machined surface minimises spark formation, reduces brush erosion, and maintains stable current flow — directly translating to consistent striking energy at the chisel.
- Heat-Resistant Insulation Varnish Coating: The entire winding assembly is coated with a thermal-grade insulation varnish that seals the copper windings against dust intrusion, moisture, and thermal overload — a common failure point in demolition environments. This protective layer maintains dielectric integrity and prevents inter-winding short circuits during sustained load cycles.
- Direct-Fit Replacement for Makita-Type 1212 Demolition Hammers: Manufactured to OEM-equivalent dimensions and specifications, this armature installs directly into compatible 1212-type demolition hammer housings without modification, reducing downtime and eliminating the need for professional fitting.
This armature spare part is supplied with all necessary components for a complete motor rebuild, and its design conforms to the quality and safety standards expected of professional-grade power tool replacement parts. It is identified by part reference 30118 and is compatible with the Makita-type 1212 demolition hammer platform.
General Purchase & Comparison Queries
Is this armature compatible with my demolition hammer?
This armature is specifically designed for Makita-type 1212 demolition hammers (part reference 30118). It is engineered to OEM-equivalent dimensions for a direct-fit installation. If your hammer is a 1212-type compatible model, this armature will fit without modification. If you are unsure, check your tool's model plate or contact us with your tool's model number.
Why choose this armature over a generic replacement?
The ID HQ Series armature is manufactured with high-grade copper windings, a reinforced commutator, and a heat-resistant insulation varnish — features that generic low-cost alternatives often omit. These construction details directly impact the longevity of the repair, the stability of power output, and the protection of surrounding motor components such as carbon brushes and bearings.
Is it more cost-effective to replace the armature or buy a new tool?
In most cases, replacing the armature spare part is significantly more economical than purchasing a new demolition hammer. The armature is one of the most common wear components in electric demolition hammers, and a quality replacement like this one can restore the tool to near-original performance at a fraction of the cost of a new unit — making it the preferred choice for professional workshops and cost-conscious tradespeople alike.
Product-Specific and Usage Queries
What does the 7-teeth helical shaft design do?
The 7-teeth helical spiral gear pinion shaft is the interface between the armature and the hammer's gear drive system. The helical tooth geometry allows for smoother, quieter torque transfer compared to straight-cut gears, and distributes mechanical impact loads across a wider contact area. This reduces wear on both the armature shaft and the mating gear, contributing to a longer overall drivetrain service life.
How does the dynamic balancing of the rotor affect performance?
A dynamically balanced rotor minimises the micro-vibrations generated at high RPM that are a primary cause of premature bearing failure and carbon brush wear. In a demolition hammer, where vibration is already an inherent operating condition, a well-balanced armature helps isolate motor vibration from mechanical vibration, resulting in smoother operation, reduced operator hand-arm fatigue, and a measurably longer service interval between motor maintenance events.
What winding material is used and why does it matter?
This armature uses pure copper windings, not aluminium substitutes. Copper offers significantly lower electrical resistance, better thermal conductivity, and higher current-carrying capacity — all of which translate to more efficient power conversion, less heat build-up during extended operation, and a longer winding lifespan. The windings are also sealed with a heat-resistant insulation varnish for additional protection against dust and thermal stress.
Problem/Solution-Oriented Queries
My demolition hammer has lost power or is running rough — could the armature be the cause?
Yes. A worn or damaged armature is one of the most frequent causes of power loss, intermittent operation, excessive sparking at the brushes, or rough running in demolition hammers. Signs of armature failure include burning smell, visible scorch marks on the commutator, excessive brush wear, or the motor cutting in and out under load. Replacing the armature with this HQ Series direct-fit unit will typically resolve these symptoms and restore full impact performance.
Will excessive heat damage this armature during heavy use?
This armature is engineered for demanding conditions. The heat-resistant insulation varnish applied to the copper windings protects against thermal degradation during sustained high-load operation. Coupled with the copper winding's superior heat dissipation properties versus aluminium, the armature is designed to withstand the thermal cycling typical of professional demolition work. For best results, allow the tool to cool periodically during extended continuous use as per standard tool-care practice.
Is installation straightforward, or do I need a specialist?
This armature is a direct-fit replacement designed to match the OEM dimensions of the Makita-type 1212 demolition hammer, which means no custom fitting or machining is required. A technician with basic power tool repair experience and standard workshop tools can complete the swap. However, if you are not confident working with electric motor components, we recommend having the replacement carried out by a qualified power tool service centre to ensure correct brush seating and commutator alignment.
