ID EP110 ELECTRIC PLANER MACHINE [G-240V] [Makita Type] - 26556
Chat with us
Choose options
Professional Power, Precision Finish — Built for the Workshop That Demands Both

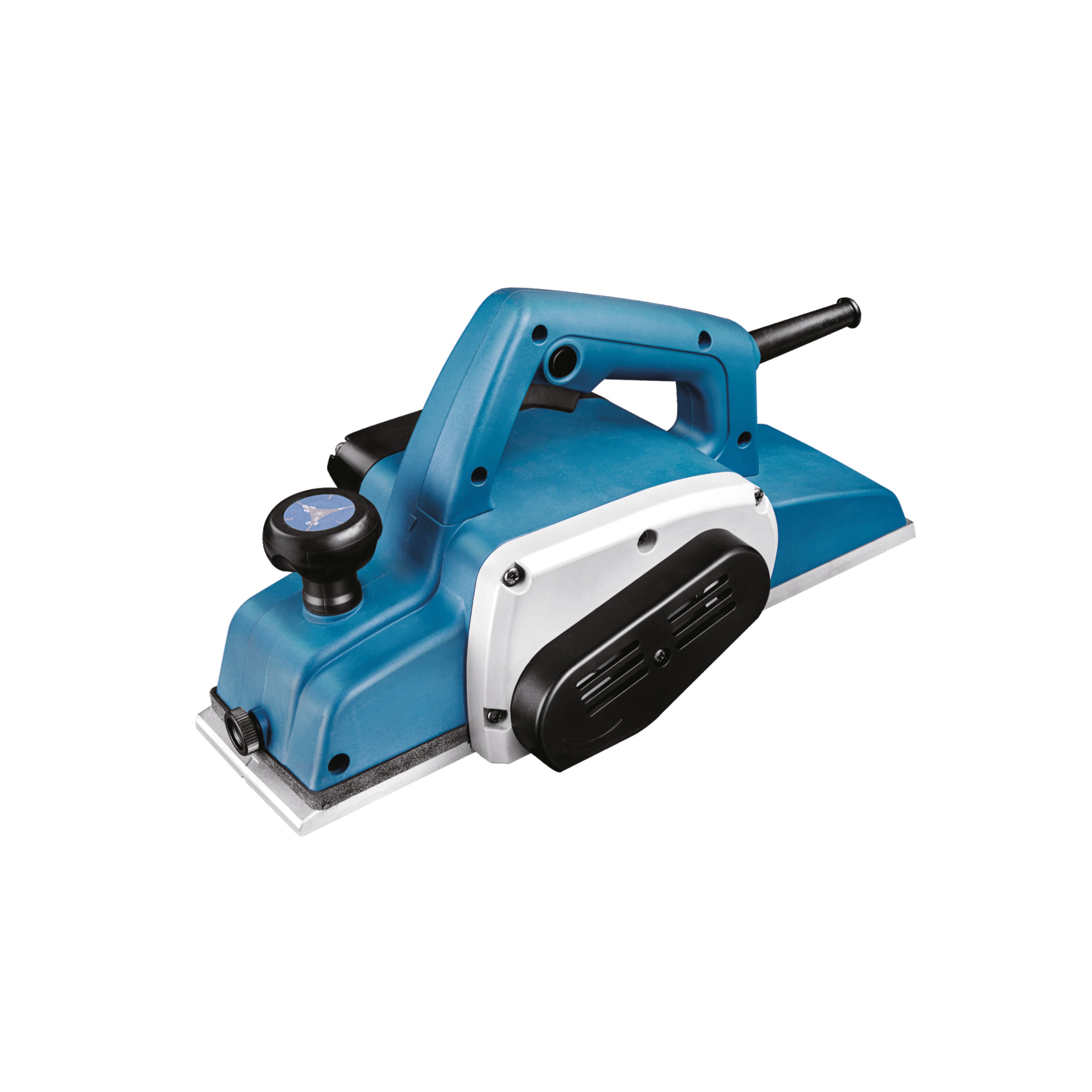

The ID EP110 Electric Planer Machine is a professional-grade 110mm wood planer engineered for heavy-duty woodworking, carpentry, and furniture making. Rated at 840W with a no-load speed of 16,500 r/min, this Makita 1100-type planer delivers a precise 2mm cutting depth and a wide 110mm planing width, ideal for achieving smooth, uniform surfaces on timber with professional efficiency. Supplied with a Type G British 3-Pin plug for direct use across the UAE and GCC markets.
| Key Features | Perfect For |
|
|
- 840W Rated Power Input at 220–240V / 50–60Hz: The EP110 draws on a robust 840-watt motor operating across a wide voltage range of 220–240V AC at both 50Hz and 60Hz, making it compatible with power supplies across the UAE, UK, and international markets. This power output ensures the machine maintains consistent blade speed even when working through dense hardwoods or reclaimed timber.
- 110mm Planing Width with 2mm Maximum Cutting Depth: With a generous 110mm planing width, the EP110 covers broad timber surfaces in fewer passes, significantly reducing working time on large panels or beams. The 2mm maximum planing depth allows for controlled, aggressive stock removal when levelling rough-sawn lumber or correcting warped boards.
- 16,500 r/min No-Load Speed for Superior Surface Quality: The high-speed 16,500 RPM blade rotation produces an exceptionally fine surface finish, minimising tear-out and reducing the need for extensive sanding. This speed is optimised for the Makita 1100-type blade geometry, ensuring clean, consistent cuts across the grain.
- Double Insulation for Maximum Operator Safety: The EP110 is built with a double insulation system, meaning the internal electrical components are fully isolated from the outer housing. This eliminates the risk of electric shock even in the absence of an earth connection, meeting international safety standards for power tools used in professional environments.
- Compact Build at 4.2kg Net Weight — Balanced for Extended Use: Weighing just 4.2kg, the EP110 strikes the ideal balance between power and portability. The ergonomic form factor reduces operator fatigue during extended planing sessions, while the robust construction ensures long-term durability in demanding workshop or on-site conditions.
- CB-Certified and Comprehensively Tested for International Compliance: The EP110 carries CB certification — the internationally recognised mark of comprehensive machine safety testing — confirming it meets the rigorous electrical and mechanical standards required for professional power tool use. The package includes the machine, a guide book, an auto-stop carbon set, a blade gauge, a sharpening holder assembly, and a socket wrench, providing everything needed for immediate setup and ongoing blade maintenance.
General Purchase & Comparison Queries
Is the ID EP110 compatible with Makita 1100 blades and accessories?
Yes. The ID EP110 Electric Planer is designed as a Makita 1100-type machine, meaning it is fully compatible with standard Makita 1100-series replacement blades and accessories. This makes sourcing spare blades and consumables straightforward, as Makita-type components are widely available through professional tool suppliers.
Does this planer come with a UK/UAE-compatible plug?
Yes. The EP110 is supplied with a Type G British 3-Pin plug, which is the standard plug type used across the UAE, UK, and many GCC countries. No plug adapter is required for use in the UAE — simply plug in and begin work.
What is included in the box with the EP110 Electric Planer?
The EP110 ships as a complete, ready-to-use package. Inside the box you will find the planer machine, a guide book, an auto-stop carbon set (1 pair), a blade gauge, a sharpening holder assembly, and a socket wrench — providing all the tools needed for initial setup and routine blade maintenance without requiring additional purchases.
Product-Specific and Usage Queries
What is the maximum planing width and cutting depth of the EP110?
The EP110 offers a maximum planing width of 110mm and a maximum cutting depth of 2mm. The 110mm width allows you to plane wide boards in a single pass, while the 2mm depth setting is suitable for both fine finishing passes and more aggressive stock removal on rough-sawn timber.
What types of wood can the EP110 handle effectively?
The EP110's 840W motor and 16,500 r/min blade speed make it capable of handling a wide range of timber species, from softwoods such as pine and cedar to medium-density hardwoods like oak and walnut. For very dense exotic hardwoods, it is recommended to take lighter passes to maintain surface quality and extend blade life.
How does the double insulation feature protect the user?
Double insulation means the EP110's internal electrical components are completely isolated from the outer plastic housing using two independent layers of insulation. This design ensures that even if the primary insulation were to fail, the secondary layer prevents any live current from reaching the tool's exterior — protecting the operator from electric shock without requiring an earthed power supply.
Problem/Solution-Oriented Queries
The planer is leaving ridges on the wood surface — what should I check?
Ridges on the planed surface are most commonly caused by dull or misaligned blades. Use the included blade gauge and sharpening holder assembly to inspect blade height and alignment. Ensure both blades are set to an equal projection height above the outfeed table. If blades are worn, replace them with compatible Makita 1100-type blades for best results.
The motor seems to be losing power mid-cut — what could cause this?
Power loss during operation is often related to worn carbon brushes. The EP110 includes an auto-stop carbon set precisely for this reason — the auto-stop feature halts the motor when brushes reach the end of their service life, preventing motor damage. Replace the carbon brush set using the included pair and the socket wrench. Always ensure the machine is unplugged before performing any maintenance.
Can I use the EP110 on a 110V power supply?
No. The EP110 is rated for 220–240V AC operation only. Using it on a 110V supply without a suitable step-up transformer will result in significantly reduced performance and may damage the motor. If you require a 110V version for site use, please contact us to check availability of alternative voltage configurations.

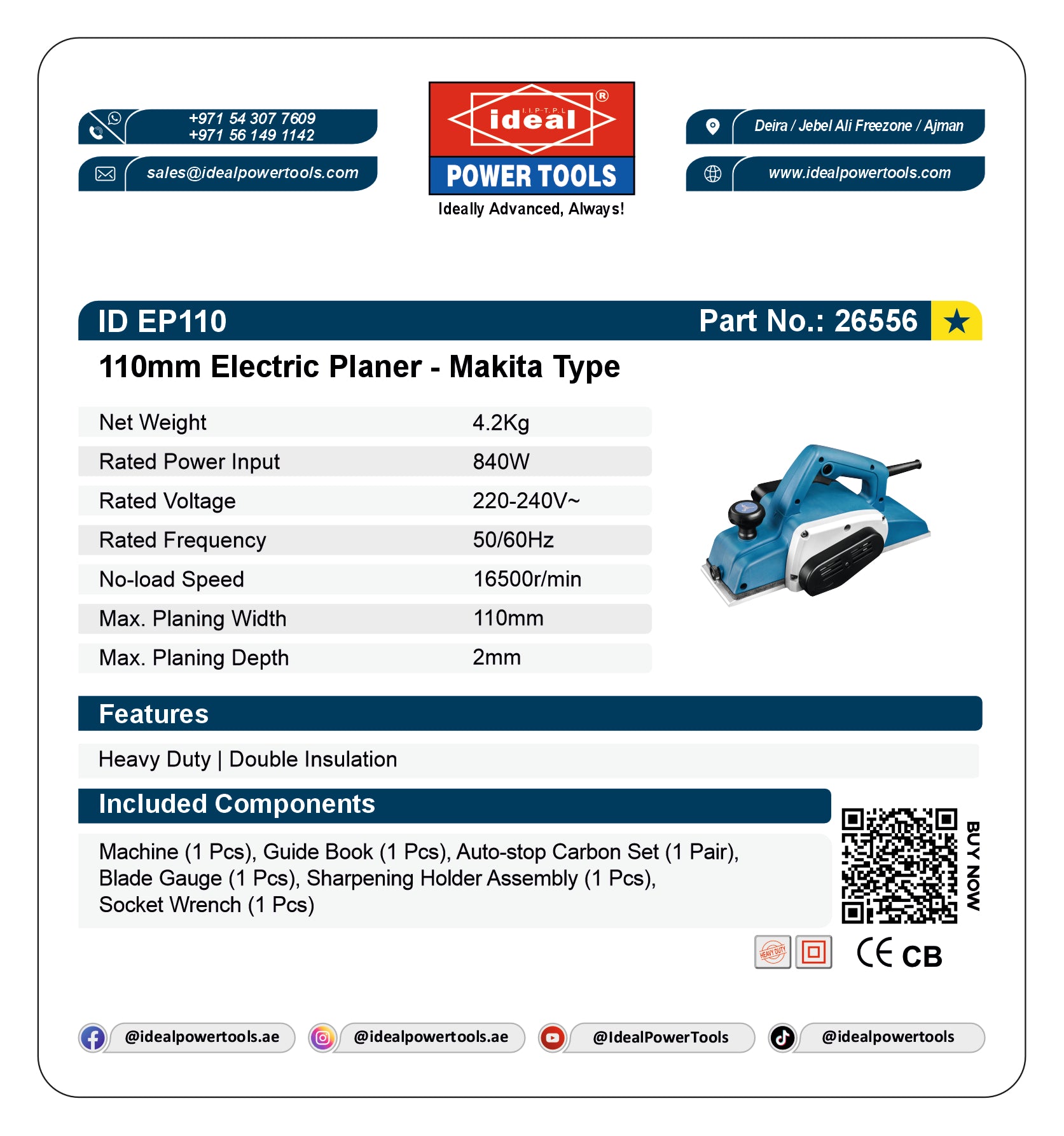

Machine (1 Pcs), Guide Book (1 Pcs), Auto-Stop Carbon Set (1 Pair), Blade Gauge (1 Pcs), Sharpening Holder Assembly (1 Pcs), Socket Wrench (1 Pcs)
