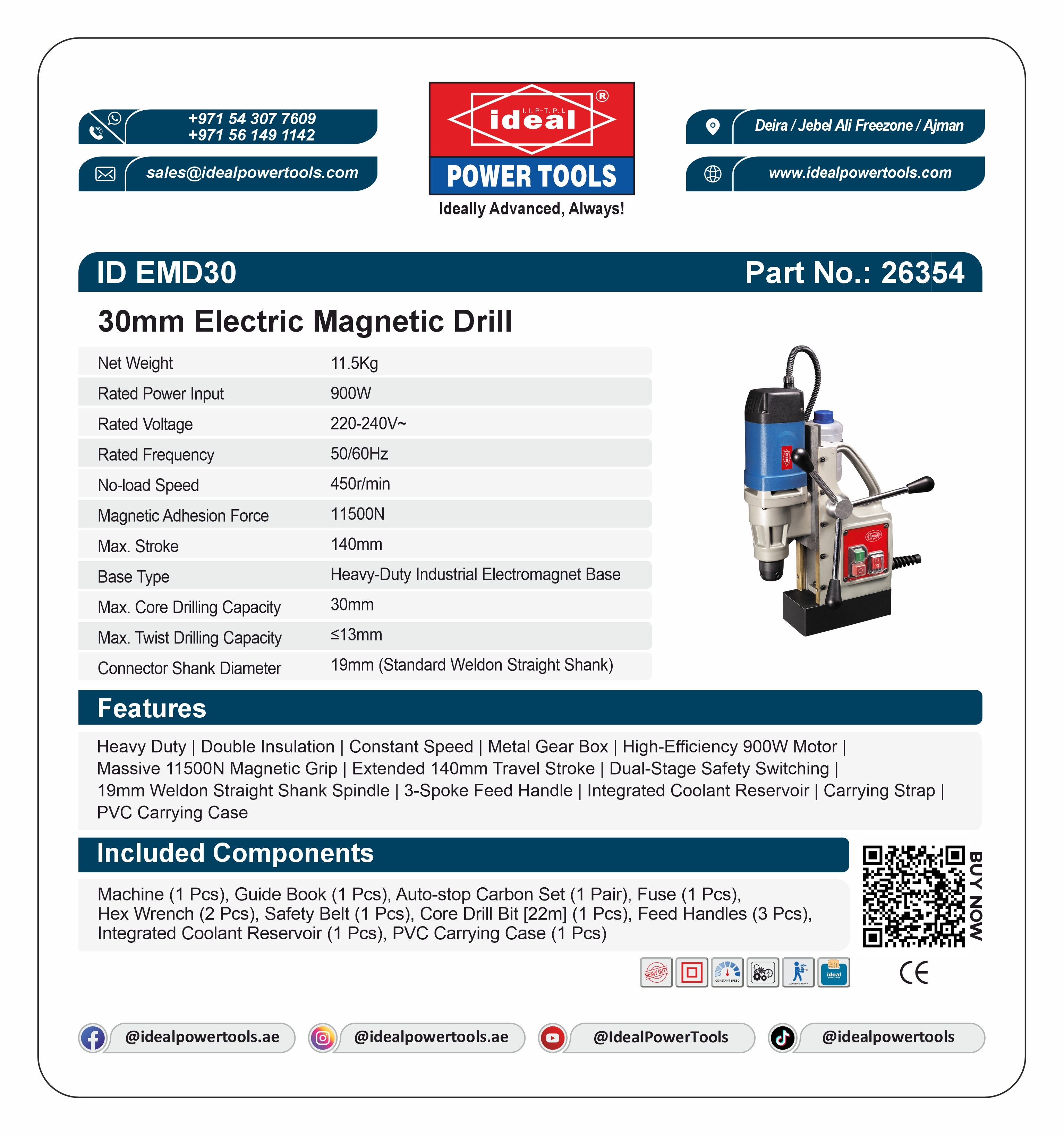

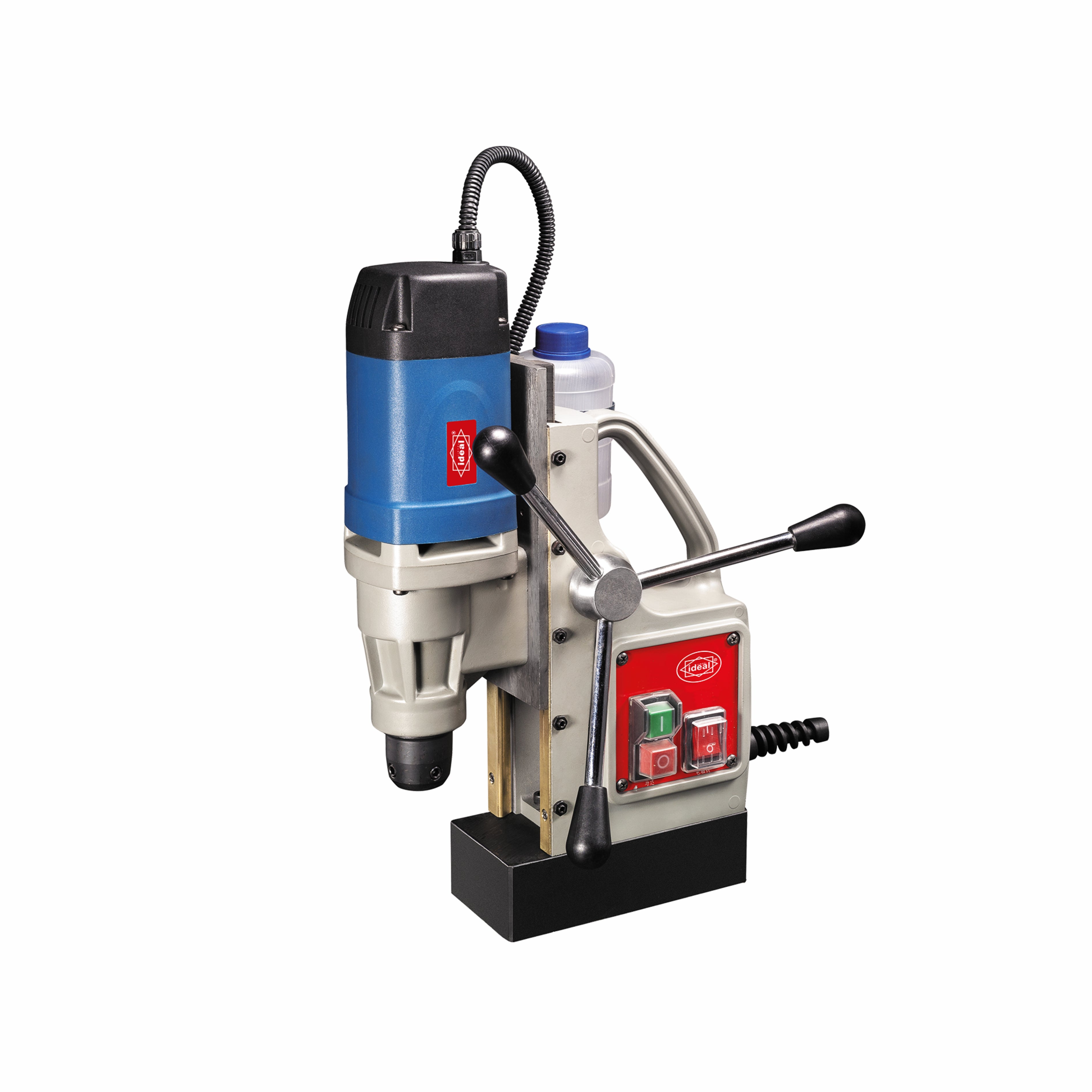

The ID EMD30 Electric Magnetic Core Drill Machine is a professional-grade magnetic base core drill engineered for precision large-diameter hole drilling in structural steel, I-beams, plates, and pipework. Powered by a 900W high-torque motor with a 11500N electromagnetic base, this industrial magnetic drill press delivers controlled, burr-free annular cutting at 450 RPM, purpose-built for construction, fabrication, and mechanical installation trades. Supplied with a Type G plug (British 3-Pin) for direct use across GCC, UK, and compatible markets.
| Key Features | Perfect For |
|---|---|
|
|
Industrial Precision. Uncompromising Grip. Built for the Toughest Structural Drilling Jobs.
- 900W Motor with Constant-Speed Electronics: The high-efficiency motor delivers a focused 450 RPM no-load speed with constant-speed electronics that maintain consistent cutting velocity even under heavy load — ensuring clean, burr-free annular cuts through structural steel without stalling or speed drop-off.
- 11500 Newton Electromagnetic Base — Maximum Holding Force: The heavy-duty industrial electromagnet base generates 11500N of magnetic adhesion force, anchoring the machine firmly to ferrous workpieces for vertical, horizontal, and inverted overhead drilling. The base activates via a dedicated toggle switch, completely independent of the motor circuit.
- 140mm Extended Travel Stroke for Deep-Section Work: A generous 140mm maximum stroke allows the use of longer annular cutters and enables single-pass drilling through thick structural sections, heavy plates, and stacked beams — eliminating the need for multiple setups or repositioning.
- Dual-Stage Independent Safety Switching System: The control panel enforces a strict operational sequence: the electromagnetic base must be fully energized via the toggle switch before the green motor start button becomes active. This critical interlock prevents accidental free-hand motor engagement, protecting both the operator and the workpiece.
- 19mm Weldon Straight Shank Spindle with Dual Grub-Screw Clamping: The industrial-grade tool holder accepts all standard 19mm (3/4") Weldon shank annular core cutters, secured by two set-screws for zero-slip, high-torque clamping. Compatible with the widest range of HSS and TCT annular cutters available on the market.
- Integrated Gravity-Fed Coolant Reservoir: The built-in semi-transparent coolant bottle delivers cutting fluid directly to the annular cutter through the spindle, extending cutter life, reducing heat buildup, and producing cleaner hole edges — essential for prolonged cutting sessions in thick material.
- Double Insulation Construction and Metal Gearbox: Engineered with double insulation so electrical components are fully isolated from the outer casing, eliminating shock risk in wet or conductive environments. The robust metal gearbox ensures smooth, efficient power transmission and long-term mechanical durability under continuous industrial use.
- Complete Ready-to-Work Package: Supplied with a 22mm core drill bit, auto-stop carbon set, hex wrenches, safety belt, three feed handles, integrated coolant reservoir, fuse, guide book, and a rigid PVC carrying case — everything required to begin drilling on arrival. The machine carries CE (Machine Test) certification, confirming compliance with European safety and electromagnetic compatibility standards.
General Purchase & Comparison Queries
What makes the ID EMD30 different from a standard pillar drill or bench drill press?
Unlike a fixed bench drill press, the ID EMD30 magnetic core drill uses an 11500N electromagnetic base to clamp directly onto the ferrous workpiece itself — whether that is a vertical I-beam, a horizontal steel plate, or an overhead structural section. This means the machine travels to the work rather than the work traveling to the machine, making it indispensable for on-site construction, fabrication, and maintenance tasks where moving the workpiece is impractical or impossible. It also uses annular core cutters rather than twist drills, which remove only a thin ring of material and produce a clean, precise hole far more efficiently than a conventional drill bit.
Is the ID EMD30 compatible with annular cutters from other brands?
Yes. The 19mm Weldon straight shank spindle is the global industry standard for magnetic drill presses, meaning the ID EMD30 accepts annular core cutters from virtually all major tooling manufacturers. The dual grub-screw (set-screw) clamping system locks the cutter shank securely, preventing rotation or pull-out under load. The machine is supplied with a 22mm annular core cutter to get you started immediately, and you can expand your cutter set up to the machine's 30mm maximum core drilling capacity.
Which plug type does this machine use, and which countries is it compatible with?
The ID EMD30 is supplied with a Type G plug (British 3-Pin) and is rated for 220–240V / 50–60Hz mains supply. This makes it directly compatible with the UAE, Saudi Arabia, Qatar, Bahrain, Kuwait, Oman, the United Kingdom, Hong Kong, Singapore, and other markets that use the Type G socket standard. No adapter or transformer is required in these regions. Always verify your local socket type before use.
Product-Specific and Usage Queries
How does the dual-stage safety switching system work in practice?
The ID EMD30 features an independent dual-stage control panel that enforces a safe operational sequence. First, the operator positions the machine on the workpiece and activates the electromagnetic base via the dedicated toggle switch, which locks the machine firmly in place. Only after the magnet is energized will the green motor start button become active and allow the drill motor to run. This interlock prevents the motor from being started while the machine is unsecured, eliminating the risk of the drill spinning freely or the machine shifting during startup — a critical safety feature for overhead and vertical drilling positions.
What is the purpose of the integrated coolant reservoir, and is it mandatory to use it?
The integrated gravity-fed coolant reservoir — the semi-transparent bottle mounted behind the handle frame — delivers cutting fluid through the hollow spindle directly to the cutting edge of the annular cutter. Coolant serves two critical functions: it reduces heat buildup at the cutting edge, which extends cutter life significantly, and it lubricates the cut to produce cleaner hole edges with less burring. While the machine can physically operate without coolant for very short cuts in thin material, using cutting fluid is strongly recommended for all standard drilling operations, particularly in material thicker than 6mm, to protect both the cutter and the workpiece finish.
What is the maximum material thickness the ID EMD30 can drill through in a single pass?
The 140mm maximum stroke defines the total travel distance of the drill body along the vertical slide tracks. In practical terms, this means you can use annular core cutters up to approximately 130mm in cutting depth (allowing for shank engagement), enabling single-pass drilling through very thick structural steel sections, heavy base plates, and stacked beam assemblies without needing to reposition the machine. For the included 22mm annular cutter, the full stroke is available from the first use.
Problem/Solution-Oriented Queries
The magnetic base does not seem to be holding firmly — what should I check?
The 11500N electromagnetic base requires direct contact with a clean, flat ferrous (iron or steel) surface to achieve full holding force. If adhesion feels weak, check the following: ensure the base plate and workpiece surface are free of paint, rust, scale, or debris — even a thin layer of contamination significantly reduces magnetic grip. Confirm the workpiece is ferrous steel and not aluminium, stainless steel, or non-magnetic alloy, as the magnet will not adhere to non-ferrous materials. Also verify the toggle switch is fully engaged and the power supply is live. On curved or uneven surfaces, magnetic contact area is reduced, which lowers holding force — always work on the flattest available section of the workpiece.
The motor starts but the drill speed drops significantly under load — what is causing this?
The ID EMD30 is equipped with constant-speed electronics designed to maintain 450 RPM under normal cutting loads. If you are experiencing significant speed drop, the most common causes are: using a dull or worn annular cutter that requires excessive force to cut — replace or resharpen the cutter; applying excessive downward feed pressure via the 3-spoke feed handle — ease the feed rate to allow the cutter to work at its designed chip load; or operating without coolant in thick material, causing heat buildup that increases cutting resistance. Ensure the coolant reservoir is filled and flowing freely to the cutter during operation.
How should the ID EMD30 be transported and stored safely between jobs?

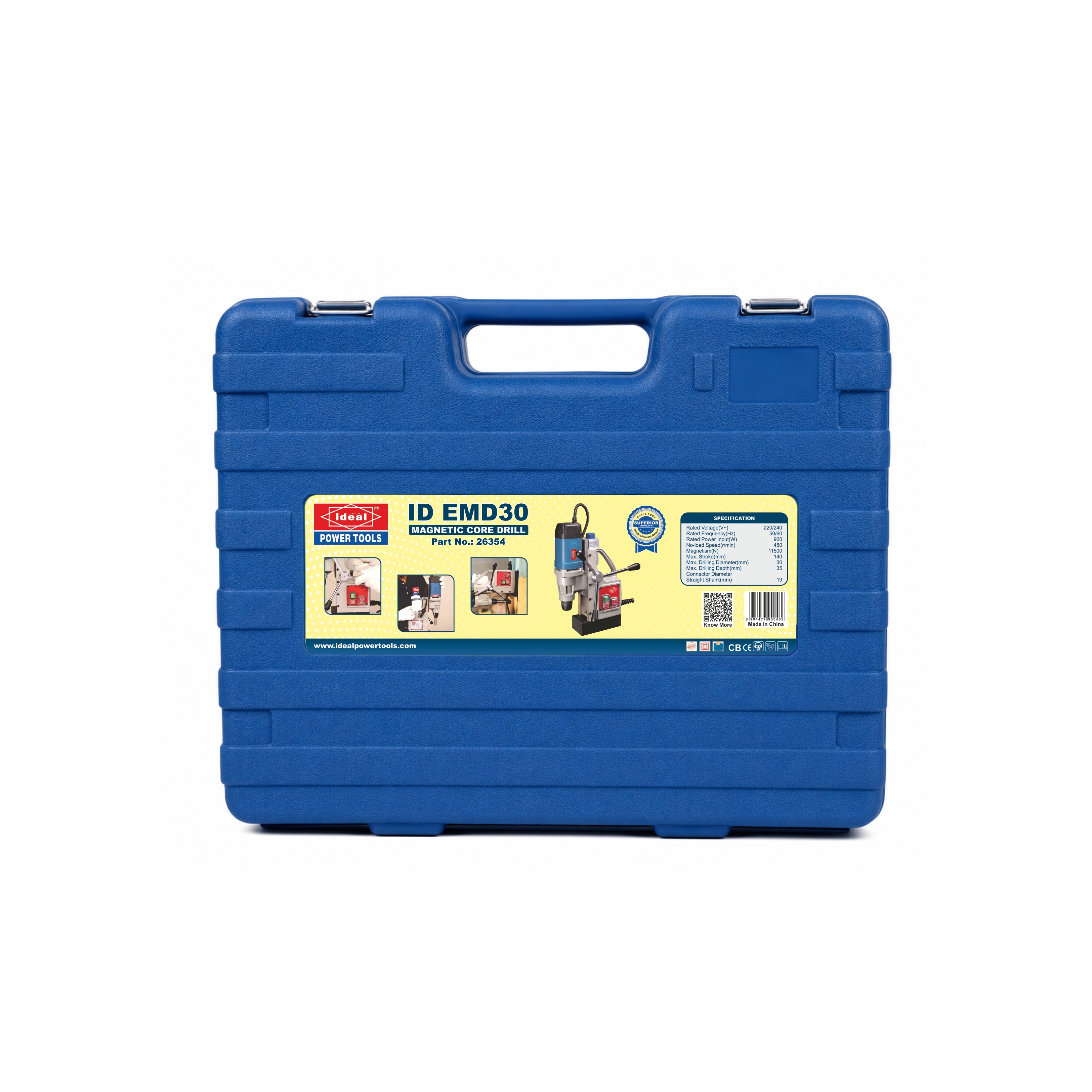

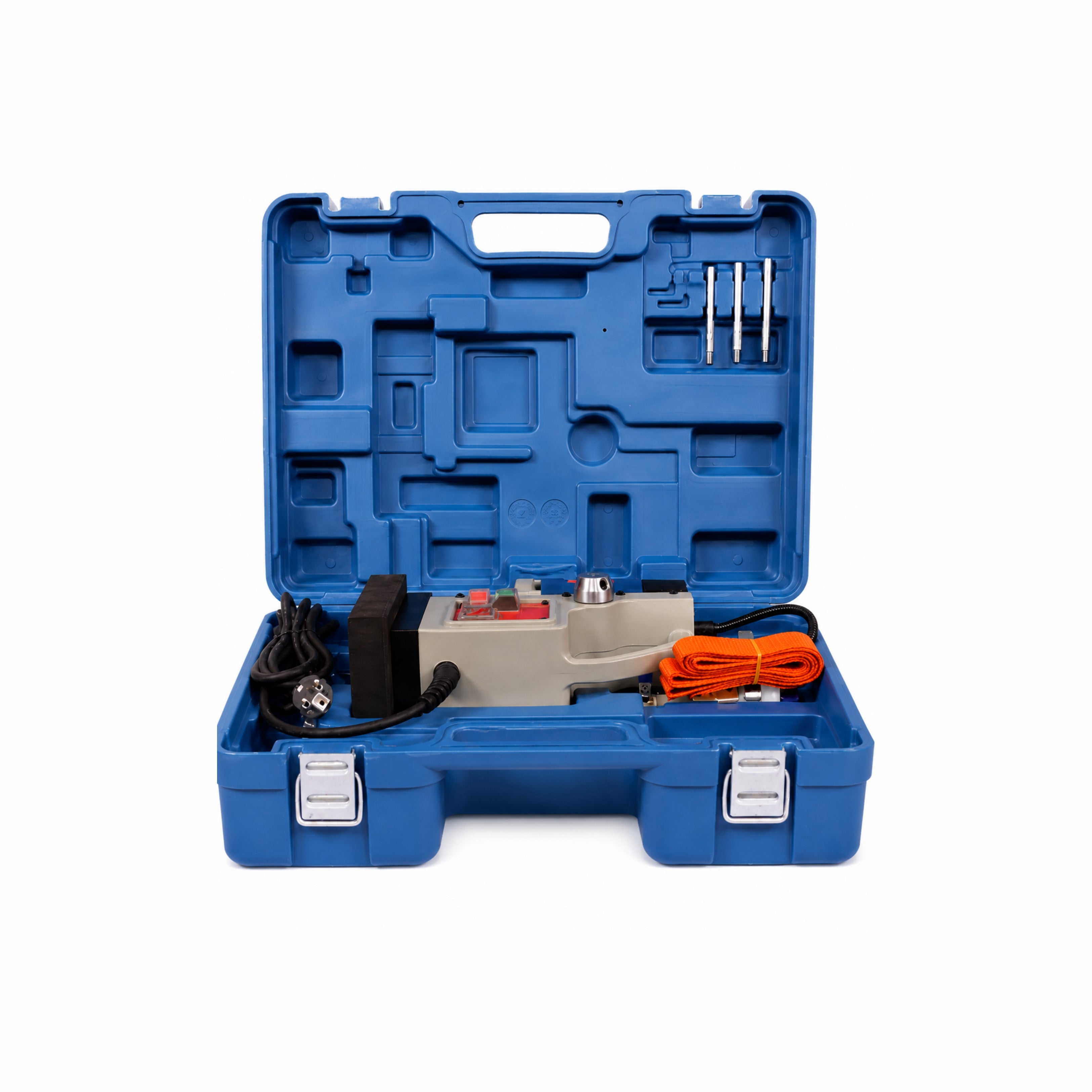

The ID EMD30 is supplied with a rigid PVC carrying case that protects the machine body, feed handles, and included accessories during transport and storage. The integrated heavy-duty safety belt and metal belt clip allow the machine to be carried securely on the body when moving between positions on a job site. Before transport, always drain the coolant reservoir to prevent spillage, remove the annular cutter from the spindle, and ensure all three feed handles are detached and stored in the case. Store the machine in a dry environment away from moisture to protect the electromagnetic base and motor windings.
Machine (1 Pcs), Guide Book (1 Pcs), Auto-stop Carbon Set (1 Pair), Fuse (1 Pcs), Hex Wrench (2 Pcs), Safety Belt (1 Pcs), Core Drill Bit [22m] (1 Pcs), Feed Handles (3 Pcs), Integrated Coolant Reservoir (1 Pcs), PVC Carrying Case (1 Pcs)
