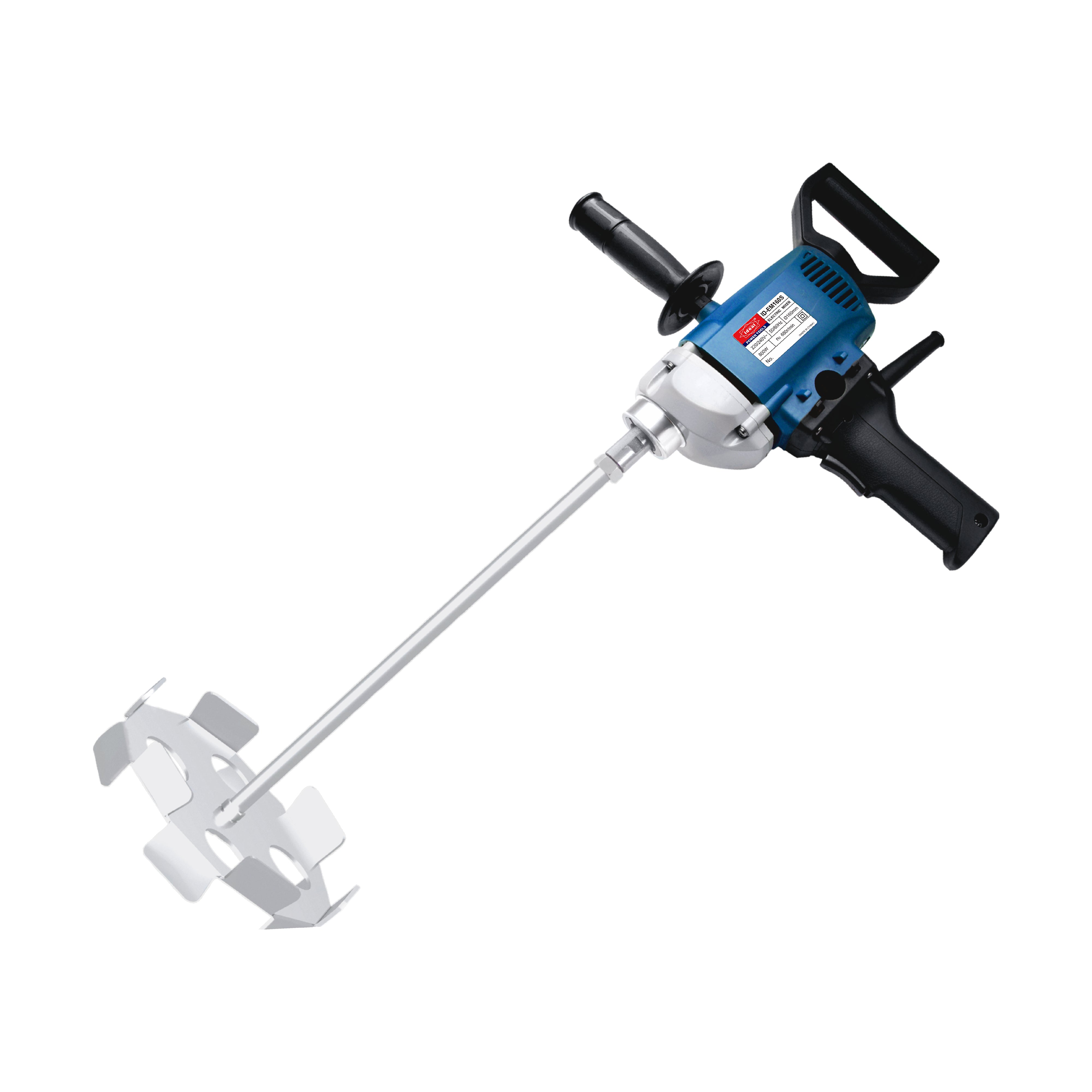

Professional Power, Precision Mixing — Built to Outlast Every Job
The ID EM160S Fan Type Electric Paint Mixer Machine is a professional-grade 800W electric paint mixer engineered for demanding mixing tasks in painting, construction, and industrial environments. Powered by a robust motor delivering 680 RPM no-load speed, this double-insulated heavy-duty mixer ensures safe, consistent, and thorough blending of paints, coatings, adhesives, and viscous liquids. Supplied with a 160mm stirrer paddle and a Type G (British 3-Pin) plug, it is ready for immediate use across UAE and GCC markets operating on 220–240V.
| Key Features | Perfect For |
|---|---|
|
|
- 800W Rated Power Input with 220–240V Compatibility: The EM160S draws 800 watts of rated power at 220–240V AC (50/60Hz), making it fully compatible with standard UAE and GCC electrical supplies. This high-output motor sustains consistent torque under load, ensuring thorough mixing of heavy-bodied materials without stalling or overheating during extended use.
- 690 RPM No-Load Speed for Controlled Blending: Operating at a no-load speed of 690 RPM, this mixer delivers a measured, controlled agitation that prevents air entrapment and splashing — critical when working with finish-grade paints and coatings where consistency directly impacts the final surface quality.
- 160mm Fan-Type Stirrer Paddle — Maximum Stirring Diameter: The included 160mm fan-type stirrer paddle is engineered to the machine's maximum rated paddle diameter, ensuring optimal fluid dynamics within the mixing vessel. The paddle geometry promotes bottom-to-top circulation, eliminating settled pigment and sediment for a perfectly homogeneous mix every time.
- Double Insulation for Jobsite Safety: Constructed with a fully double-insulated body, the EM160S ensures that live electrical components are completely isolated from the outer casing. This eliminates the risk of electric shock even in damp or wet construction environments, meeting the safety standards validated by CE (Machine Test) and CB (Comprehensive Machine Test) certifications.
- Ergonomic D-Handle with Auxiliary Handle Support: The primary D-handle combined with the included auxiliary handle provides a secure two-handed grip, distributing vibration and torque reaction across both arms. At a net weight of just 2.4 kg, the balanced design significantly reduces operator fatigue during prolonged mixing sessions on site.
- Auto-Stop Carbon Brush Set Included: The machine ships complete with an auto-stop carbon brush set, a stirring paddle, an auxiliary handle, and a user guide. The auto-stop carbon brushes automatically cut power when worn to their limit, protecting the motor armature from damage and extending the overall service life of the tool.
- CE and CB Certified for Quality Assurance: The ID EM160S carries CE certification (Machine Test) confirming compliance with European machinery safety directives, and CB certification (Comprehensive Machine Test) validating its electrical safety performance to international IEC standards — giving professionals and procurement teams confidence in its quality and regulatory standing.
General Purchase & Comparison Queries
What voltage and plug type does the ID EM160S use — is it compatible with UAE sockets?
Yes. The ID EM160S operates on 220–240V AC at 50/60Hz, which is fully compatible with the UAE standard electrical supply. It comes fitted with a Type G (British 3-Pin) plug, the standard plug type used across the UAE, making it ready to use straight out of the box without any adapter.
How does the EM160S compare to a standard handheld drill mixer?
Unlike a standard drill fitted with a mixing attachment, the ID EM160S is purpose-built as a dedicated paint mixer. Its 800W motor is optimised for sustained torque at a controlled 690 RPM, preventing the air entrapment and splashing common with high-speed drill mixers. The 160mm fan-type paddle and D-handle with auxiliary grip are specifically designed for two-handed mixing stability — a significant ergonomic and performance advantage over improvised drill-based solutions.
What is included in the box with the ID EM160S?
The package includes the EM160S mixer machine, a 160mm fan-type stirring paddle, an auxiliary handle, an auto-stop carbon brush set, and a user guide — everything needed to begin mixing immediately upon delivery.
Product-Specific and Usage Queries
What materials can the ID EM160S mix effectively?
The EM160S is suited for a wide range of materials including wall paints, primers, emulsions, tile adhesives, grouts, cement-based compounds, epoxy resins, sealants, and industrial coatings. Its 160mm fan-type paddle generates effective bottom-to-top circulation, making it particularly effective at re-suspending settled pigments and eliminating lumps in thick, viscous materials.
What is the maximum stirring paddle diameter supported by this machine?
The ID EM160S supports a maximum stirring paddle diameter of 160mm. The included paddle is already at this maximum specification. Using a paddle larger than 160mm is not recommended as it exceeds the motor's rated load capacity and may cause premature wear or motor damage.
What does the auto-stop carbon brush set do?
The auto-stop carbon brushes are a motor protection feature. Carbon brushes conduct electricity to the motor's rotating armature and naturally wear down over time with use. When the brushes reach the end of their service life, the auto-stop mechanism automatically cuts power to the motor, preventing the armature from being damaged by brush-less operation. This extends the overall lifespan of the machine and reduces costly repair needs.
Problem/Solution-Oriented Queries
Is the ID EM160S safe to use on a wet or damp construction site?
The EM160S is built with double insulation, meaning all live electrical components are fully isolated from the outer casing. This design eliminates the risk of electric shock from contact with the tool body, making it significantly safer in damp or wet environments typical of construction sites. Its CE and CB certifications further validate its electrical safety compliance to international standards.
The paint at the bottom of the bucket is not mixing — what should I do?
This is typically caused by the paddle not reaching the bottom of the vessel or the mixing speed being too low for the material's viscosity. The 160mm fan-type paddle on the EM160S is designed to promote bottom-to-top fluid circulation — ensure the paddle is fully submerged and positioned near the base of the bucket. Tilt the mixer slightly and move it in a slow circular motion to encourage full vessel circulation. If sediment is heavily compacted, begin mixing at the base before gradually raising the paddle.
The machine stopped working mid-use — what could be the cause?
If the machine stops unexpectedly, the most common cause is that the auto-stop carbon brushes have reached the end of their service life and have automatically cut power to protect the motor. Check the carbon brush condition and replace the brush set if worn. Other causes may include a tripped circuit breaker due to overload, or the machine being used with a paddle exceeding the 160mm maximum diameter, which places excessive load on the motor. Always ensure the machine is used within its rated specifications.
Machine (1 Pcs), Guide Book (1 Pcs), Auto-Stop Carbon Set (1 Pair), Auxiliary Handle (1 Pcs), Stirring Paddle (160mm)
