Professional Power, Precision Mixing — Built to Outlast Every Job

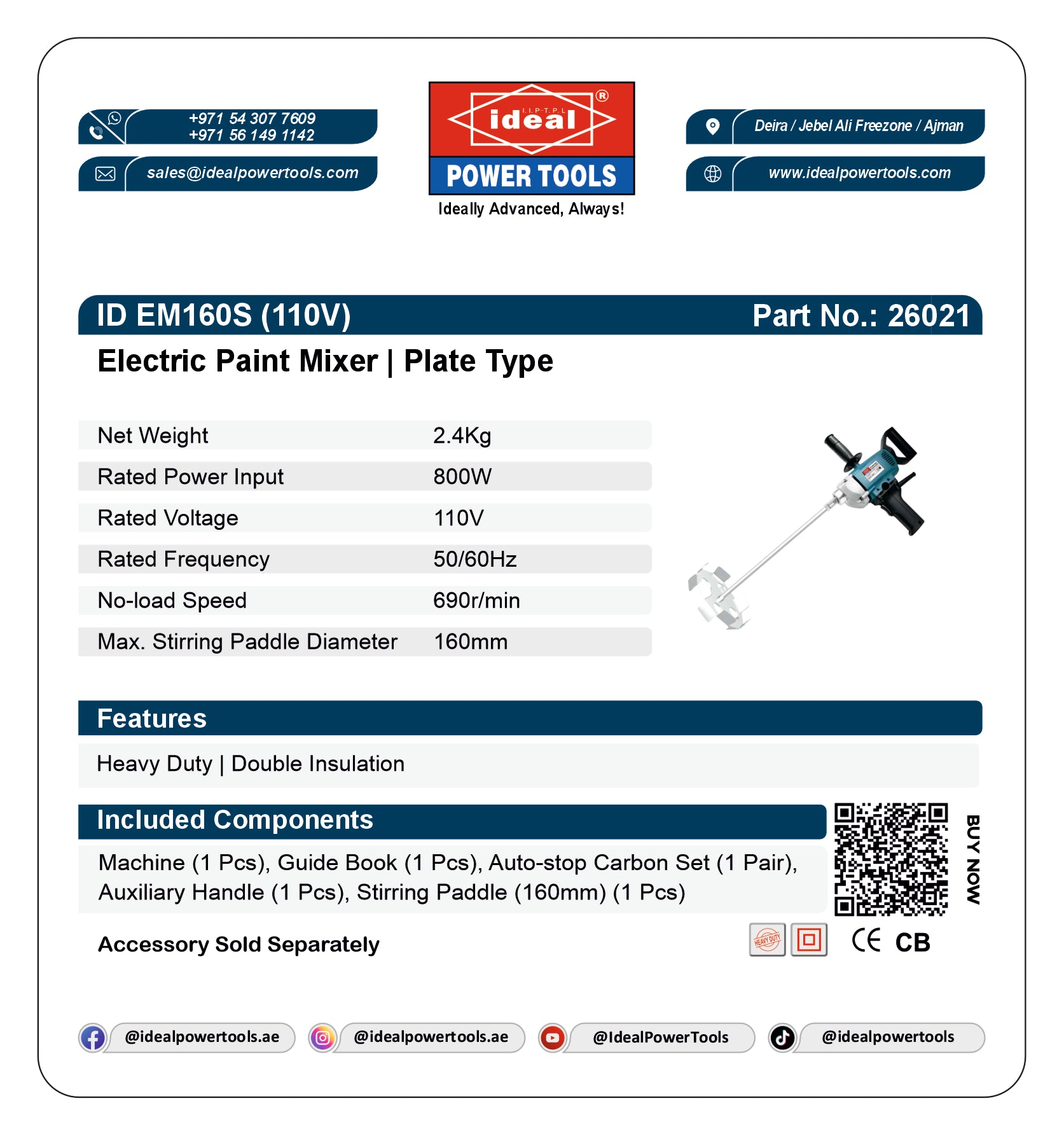

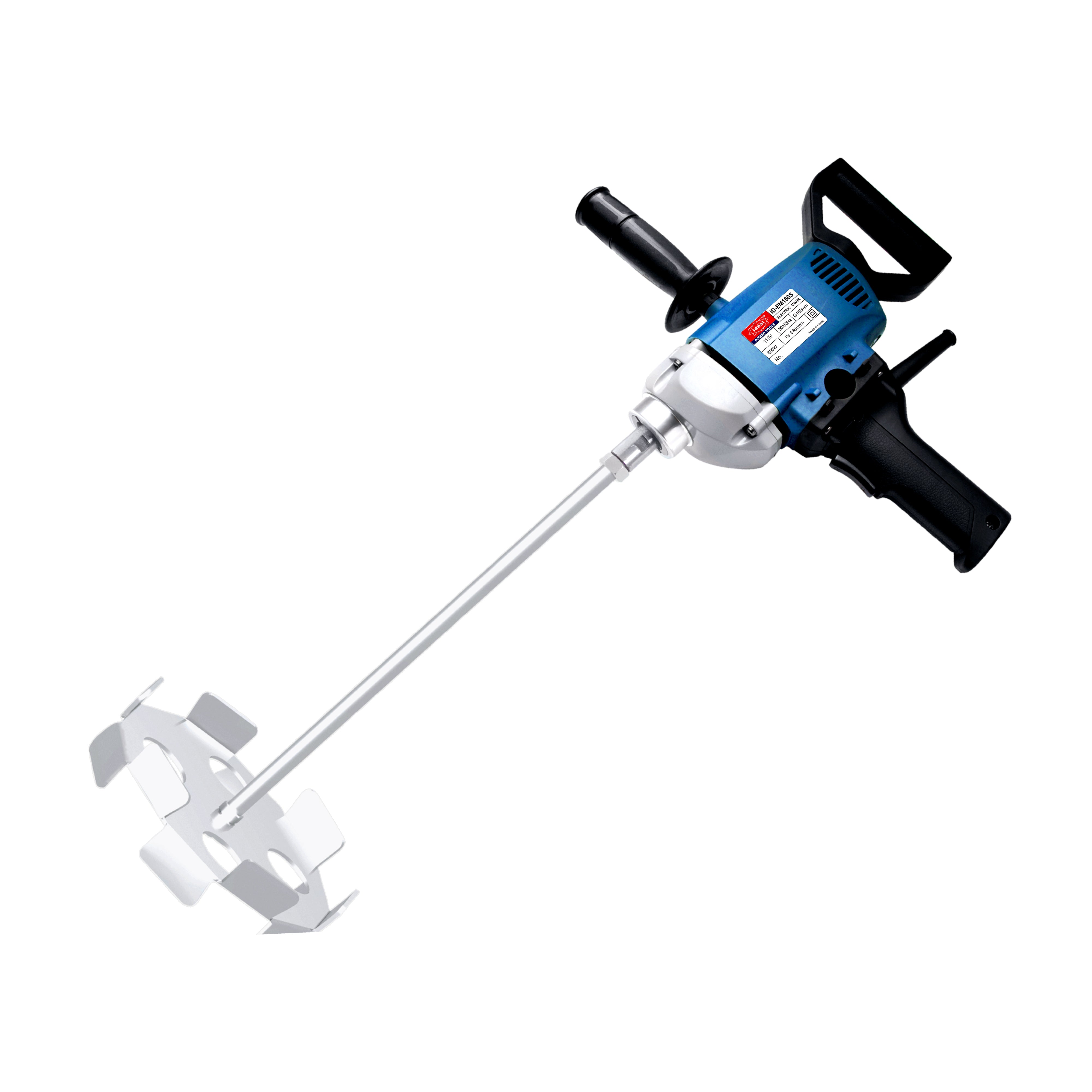

The ID EM160S 110V Electric Paint Mixer Machine is a professional-grade 800W fan-cooled paint mixing machine designed for contractors, painters, and industrial users who demand consistent, lump-free results. Equipped with a 160mm stirring paddle, a 600mm mixing rod, and a D-handle support grip, this heavy-duty electric paint mixer delivers reliable performance across a wide range of coatings, adhesives, and viscous materials. Supplied with a Type G British 3-Pin plug and rated for both 50Hz and 60Hz operation, it is built for professional use in demanding environments.
| Key Features | Perfect For |
|---|---|
|
|
- 800W Fan-Cooled Motor for Sustained Heavy-Duty Performance: The EM160S is powered by an 800W rated input motor engineered for continuous operation on demanding job sites. The integrated fan-type cooling system actively dissipates heat during extended mixing sessions, preventing motor burnout and ensuring the machine maintains peak performance even when working with thick, high-viscosity materials such as tile adhesive, textured coatings, or epoxy primers.
- 160mm Stirring Paddle with 600mm Plate-Type Rod for Deep-Bucket Reach: The included 160mm diameter stirring paddle mounted on a 600mm plate-type mixing rod allows the machine to reach deep into standard paint buckets and mixing containers. The paddle geometry ensures thorough agitation from the bottom up, eliminating settled pigment, lumps, and sediment to produce a uniform, consistent mixture every time.
- Double Insulation Construction for Maximum Electrical Safety: Designed with a double insulation system, the EM160S ensures that all internal electrical components are fully isolated from the outer casing. This critical safety feature eliminates the risk of electric shock even in wet or damp working conditions — a standard requirement for professional power tools used in painting and construction environments.
- 690 RPM No-Load Speed with 50/60Hz Compatibility: Operating at a no-load speed of 690 r/min and rated at 110V with 50/60Hz frequency compatibility, this mixer delivers controlled, steady rotational force ideal for blending without introducing excessive air bubbles into the mixture. The moderate speed is specifically suited for paint, coatings, and adhesives where over-agitation can compromise finish quality.
- D-Handle Auxiliary Grip and Auto-Stop Carbon Brush Set for Operator Control and Longevity: The included auxiliary D-handle provides a secure two-handed grip, reducing operator fatigue and improving directional control during mixing. The machine also ships with an auto-stop carbon brush set that automatically halts the motor when the brushes wear down, protecting the motor armature from damage and extending the overall service life of the tool. The package is completed with a guide book for safe operation and maintenance. Both the machine and its components are validated by CE (Machine Test) and CB (Comprehensive Machine Test) certifications, confirming compliance with international electrical safety and performance standards.
General Purchase & Comparison Queries
What voltage and plug type does the ID EM160S come with?
The ID EM160S is rated at 110V and is supplied with a Type G British 3-Pin plug, making it suitable for use in countries that operate on the British plug standard. It supports both 50Hz and 60Hz electrical frequencies, offering broad international compatibility for professional users.
How does the EM160S compare to a standard drill-mounted mixing attachment?
Unlike a drill-mounted mixing paddle, the ID EM160S is a dedicated electric paint mixer with an 800W motor purpose-built for sustained mixing loads. It features a fan-cooled motor, a D-handle auxiliary grip, and an auto-stop carbon brush system — none of which are available on standard drill attachments. This makes it significantly more capable for continuous professional use with heavy-bodied coatings and adhesives.
Is this machine suitable for both DIY and professional use?
Yes. While the ID EM160S is engineered to meet the demands of professional painters, contractors, and construction teams, its straightforward operation and included guide book also make it accessible for serious DIY users. The CE and CB certifications confirm it meets international safety standards, giving both professional and home users confidence in its reliability.
Product-Specific and Usage Queries
What is the maximum stirring paddle diameter this machine supports?
The ID EM160S supports a maximum stirring paddle diameter of 160mm. The machine ships with a 160mm plate-type stirring paddle mounted on a 600mm mixing rod, which is optimised for reaching the bottom of standard paint buckets and thoroughly agitating the full volume of material.
What materials can the ID EM160S effectively mix?
The EM160S electric paint mixer is designed to blend a wide range of liquid and semi-viscous materials including wall paints, primers, emulsions, tile adhesives, grout, textured coatings, and epoxy-based products. Its 690 RPM no-load speed provides controlled agitation that minimises air bubble introduction — critical for achieving a smooth, professional finish.
What does the auto-stop carbon brush set do?
The included auto-stop carbon brush set is a built-in motor protection feature. When the carbon brushes reach the end of their service life, the mechanism automatically stops the motor before the worn brushes can damage the motor armature. This extends the overall lifespan of the machine and reduces costly repair needs, making it a key advantage for heavy-duty professional applications.
Problem/Solution-Oriented Queries
The mixer is getting hot during extended use — is this normal?
Some warmth during operation is normal for any power tool under load. However, the ID EM160S features a fan-type cooling system specifically designed to manage heat during prolonged mixing sessions. If the machine feels excessively hot, allow it to cool down before resuming. Always ensure the ventilation slots are unobstructed during use to allow the fan to circulate air effectively through the motor housing.
The machine stopped working mid-use — what should I check first?
If the EM160S stops unexpectedly, the most likely cause is that the auto-stop carbon brushes have reached the end of their service life and have triggered the automatic shutoff to protect the motor. Inspect and replace the carbon brush set as described in the included guide book. Also verify that the power supply matches the machine's 110V rated voltage and that the Type G plug connection is secure.
My mixed paint still has lumps — how can I improve results?
For best results, ensure the 160mm stirring paddle is fully submerged before starting the machine to prevent splashing. Move the paddle slowly up and down within the bucket during mixing to ensure the full volume of paint is agitated, including settled pigment at the bottom. For very thick materials, allow the mixer to run at its 690 RPM speed for a longer duration rather than forcing the paddle through the material too quickly.
Machine (1 Pcs), Guide Book (1 Pcs), Auto-Stop Carbon Set (1 Pair), Auxiliary Handle (1 Pcs), Stirring Paddle (160mm)
