ID ED10AR ELECTRIC DRILL MACHINE [G-240V] - 26554
Chat with us
Choose options

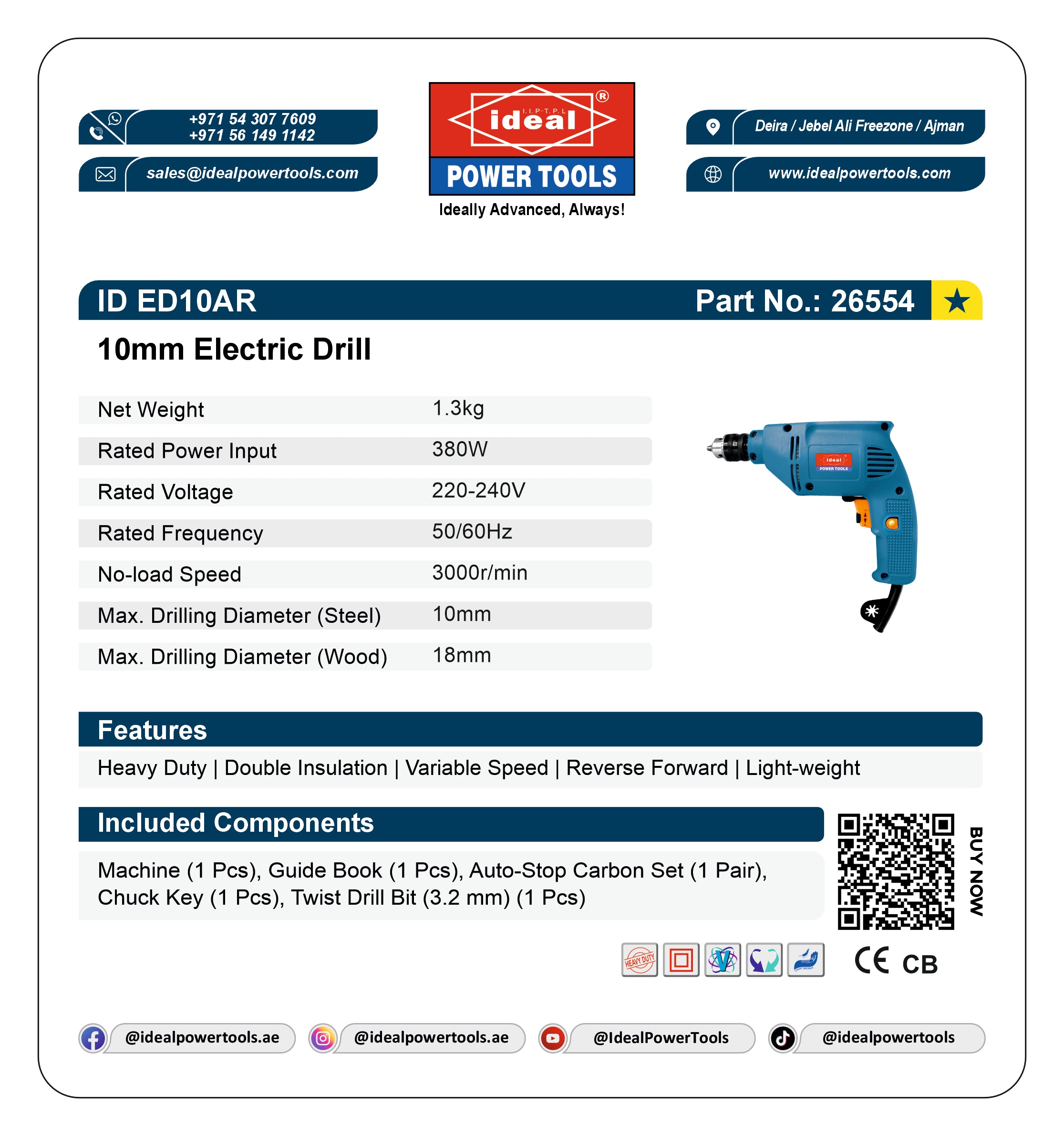

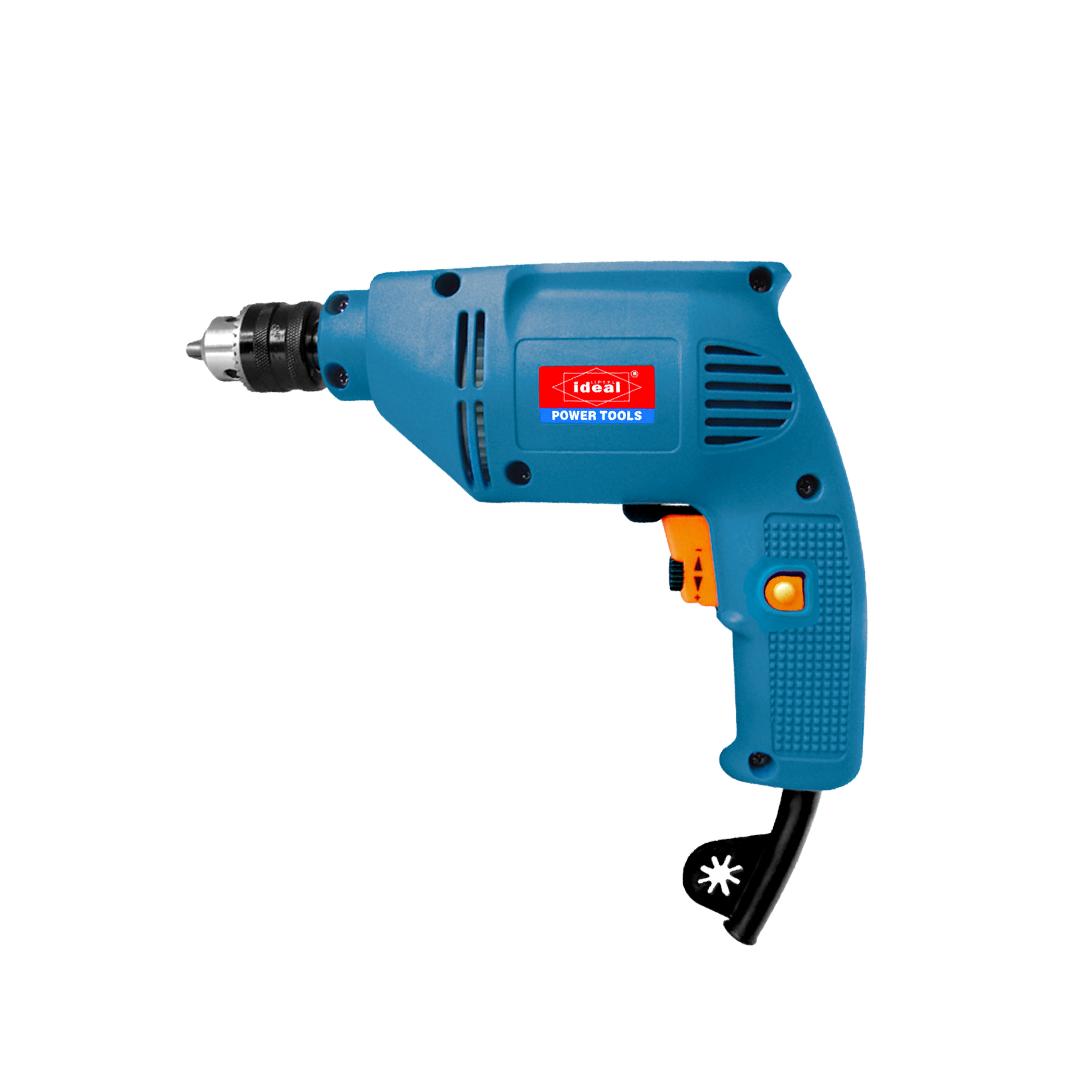

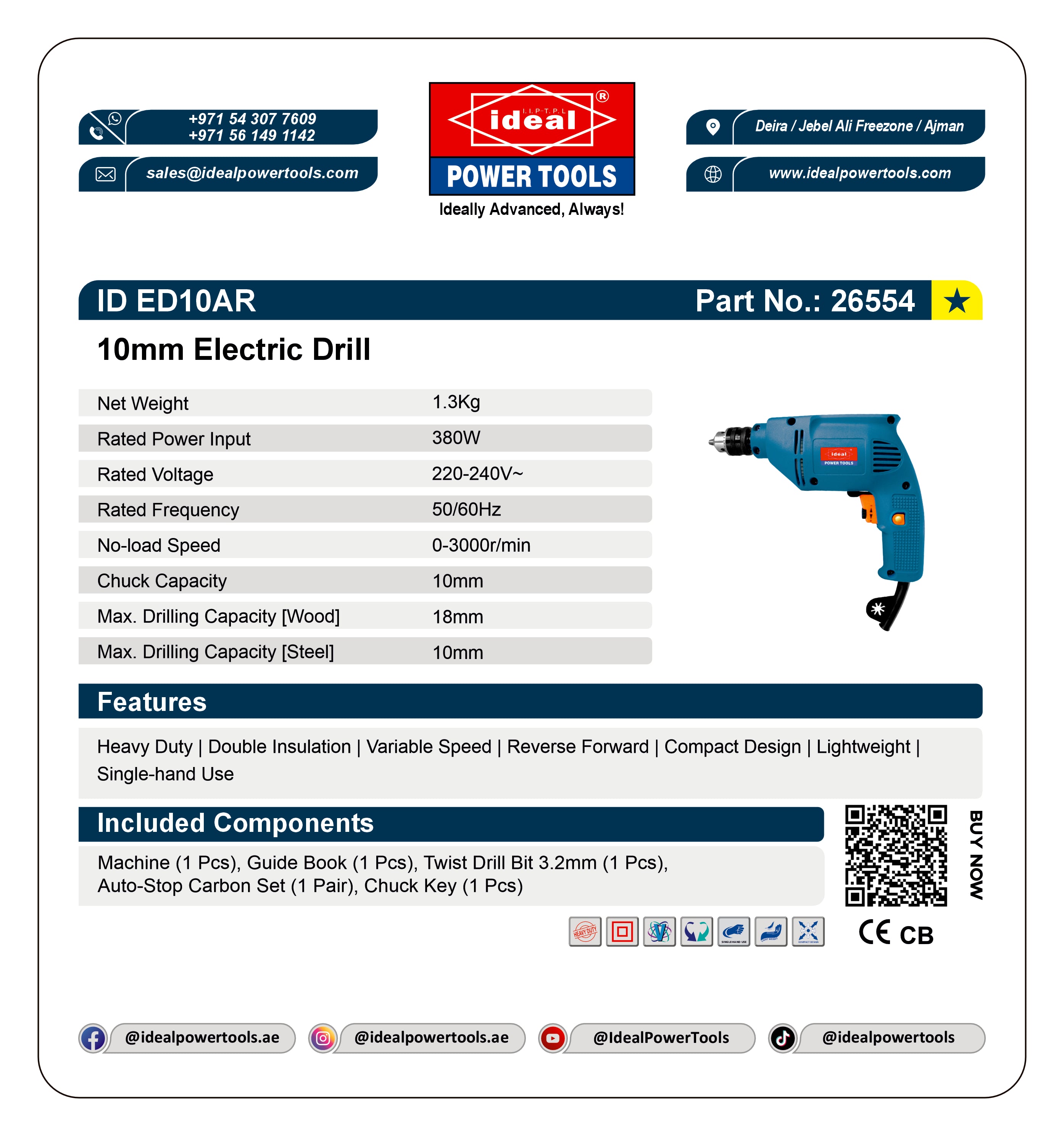

The ID ED10AR Electric Drill Machine is a 380W variable speed corded drill engineered for precision and endurance across construction, woodworking, and metalworking applications. Rated at 220-240V~ / 50-60Hz with a 10mm chuck capacity and speeds up to 3,000 r/min, this lightweight 1.3 kg drill delivers professional-grade performance in a compact, single-hand-operable form. Fitted with a Type G (British 3-Pin) plug, it is ready for use across the UAE, UK, and GCC markets straight out of the box.
| Key Features | Perfect For |
|---|---|
|
|
Professional Power. Featherlight Design. Built to Last.
- 380W Heavy-Duty Motor with 0-3,000 r/min Variable Speed: The ID ED10AR is powered by a robust 380-watt motor that delivers a no-load speed range of 0 to 3,000 revolutions per minute. The variable speed trigger gives you complete control — a light squeeze for delicate pilot holes, a firm grip for aggressive material removal — making it equally capable on soft timber and hard steel.
- 10mm Chuck with Wide Drilling Capacity: The 10mm chuck accepts a broad range of standard drill bits and accessories. With a maximum drilling capacity of 10mm in steel and 18mm in wood, this machine handles the majority of trade and DIY drilling tasks without needing a larger, heavier tool.
- Forward & Reverse Function for Versatile Operation: The integrated forward and reverse control switch allows the operator to instantly change the rotation direction of the chuck. This is essential not only for driving screws efficiently but also for backing out stuck bits, removing fasteners, and preventing material tear-out when withdrawing from deep holes.
- Double Insulation Safety Construction: Designed and tested to CE and CB certification standards, the ED10AR features a double-insulated body that ensures all live electrical components are completely separated from the tool's outer casing. This eliminates the risk of electric shock even in the event of internal insulation failure, making it a safe choice for both professional tradespeople and home users.
- Ultra-Compact 1.3 kg Ergonomic Body for Single-Hand Use: Weighing just 1.3 kilograms, the ED10AR is one of the lightest tools in its power class. The ergonomic grip is shaped for natural single-hand operation, significantly reducing wrist strain and operator fatigue during extended overhead or repetitive drilling tasks. The compact footprint also makes it easy to manoeuvre in tight corners, wall cavities, and confined ceiling spaces.
- Type G Plug Ready for UAE, UK & GCC Markets: Supplied with a Type G British 3-pin plug and rated for 220-240V~ at 50/60Hz, this drill requires no adapters and is immediately compatible with standard wall sockets across the UAE, United Kingdom, and wider GCC region — a practical advantage for contractors working across multiple markets.
This machine is supplied complete with the drill unit, a guide book for safe operation, an auto-stop carbon brush set for extended motor life, a chuck key for secure bit installation, and a 3.2mm twist drill bit to get you started immediately. It carries both CE (Machine Test) and CB (Comprehensive Machine Test) certifications, confirming compliance with international electrical safety and performance standards.
General Purchase & Comparison Queries
Is the ID ED10AR suitable for professional trade use or is it a DIY-only drill?
The ID ED10AR is built for both professional tradespeople and serious DIY users. Its 380W motor, double-insulated body, CE and CB certifications, and auto-stop carbon brush set are all hallmarks of a tool designed for regular, demanding use on construction sites, fit-out projects, and workshops — not just occasional home tasks.
Does this drill come with a plug compatible with UAE and UK sockets?
Yes. The ED10AR is supplied with a Type G British 3-pin plug, which is the standard plug type used in the UAE, United Kingdom, and across the GCC region. It is rated for 220-240V~ at 50/60Hz, so no adapter or voltage converter is required.
What is included in the box when I purchase this drill?
The package includes the drill machine unit, a guide book for safe and correct operation, an auto-stop carbon brush set (one pair) to extend motor service life, a chuck key for securing drill bits, and a 3.2mm twist drill bit so you can begin work immediately upon unboxing.
Product-Specific and Usage Queries
What is the maximum drilling capacity of the ED10AR in steel and wood?
The ED10AR has a maximum drilling capacity of 10mm in steel and 18mm in wood. These capacities cover the vast majority of common drilling tasks in construction, carpentry, and general trade work. For larger diameter holes in masonry or concrete, a hammer drill would be more appropriate.
How does the variable speed trigger work and why does it matter?
The variable speed trigger operates on a pressure-sensitive mechanism — the harder you squeeze the trigger, the faster the motor spins, up to a maximum no-load speed of 3,000 r/min. This gives you precise control: use low speed for starting holes, driving screws, or working with delicate materials, and high speed for fast drilling through timber or thin metal. Combined with the forward and reverse switch, it makes the tool highly versatile for both drilling and fastening tasks.
Can I use this drill for extended periods without fatigue?
Yes. The ED10AR is specifically designed with operator comfort in mind. At just 1.3 kg, it is one of the lightest drills in its power category. The ergonomic single-hand grip reduces wrist and arm strain during prolonged use, and the compact body allows easy access in tight spaces without awkward positioning. The included auto-stop carbon brush set also ensures the motor maintains consistent performance over time.
Problem/Solution-Oriented Queries
The drill bit keeps slipping in the chuck — how do I secure it properly?
The ED10AR uses a keyed chuck system. Always use the included chuck key to tighten the chuck firmly around the drill bit shank before operation. Insert the chuck key into each of the three chuck key holes in turn and tighten until the bit is fully gripped with no play. Never rely on hand-tightening alone, as this can cause the bit to slip under load and damage both the bit and the workpiece.
The drill has stopped working — what should I check first?
If the drill stops unexpectedly, first check that the power supply is live and the plug is fully seated in the socket. Next, inspect the forward/reverse switch — ensure it is fully engaged in one direction and not left in the neutral centre position, which disconnects the motor circuit. If the motor runs weakly or intermittently, the auto-stop carbon brushes may be worn and require replacement; the included spare set can be fitted by a qualified technician. If the issue persists, contact your authorised service centre.
Is this drill safe to use if the outer casing gets wet or damp on site?
The ED10AR features double insulation, which means all live electrical components are fully isolated from the outer casing, providing an additional layer of protection against electric shock. However, this drill is not rated for wet or outdoor use in rain. Always operate the tool in dry conditions, keep it away from standing water, and store it in a dry environment. If the tool has been exposed to moisture, allow it to dry completely before use and have it inspected by a qualified technician if in doubt.
Machine (1 Pcs), Guide Book (1 Pcs), Auto-stop Carbon Set (1 Pair), Chuck Key (1 Pcs), Twist Drill Bit [3.2 mm] (1 Pcs)
