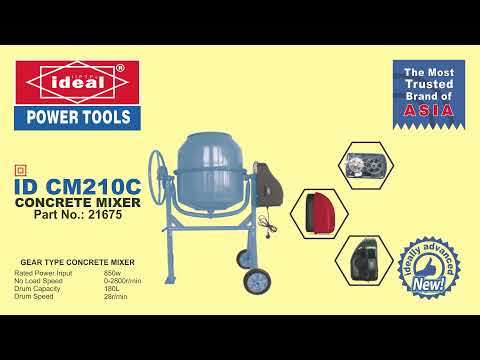

ID CM210C [GEAR TYPE] ELECTRIC CONCRETE MIXER MACHINE [G-240V] - 21675
Chat with us
Choose options
Built to Mix More, Stop Less — Professional Concrete Mixing Power On Every Site

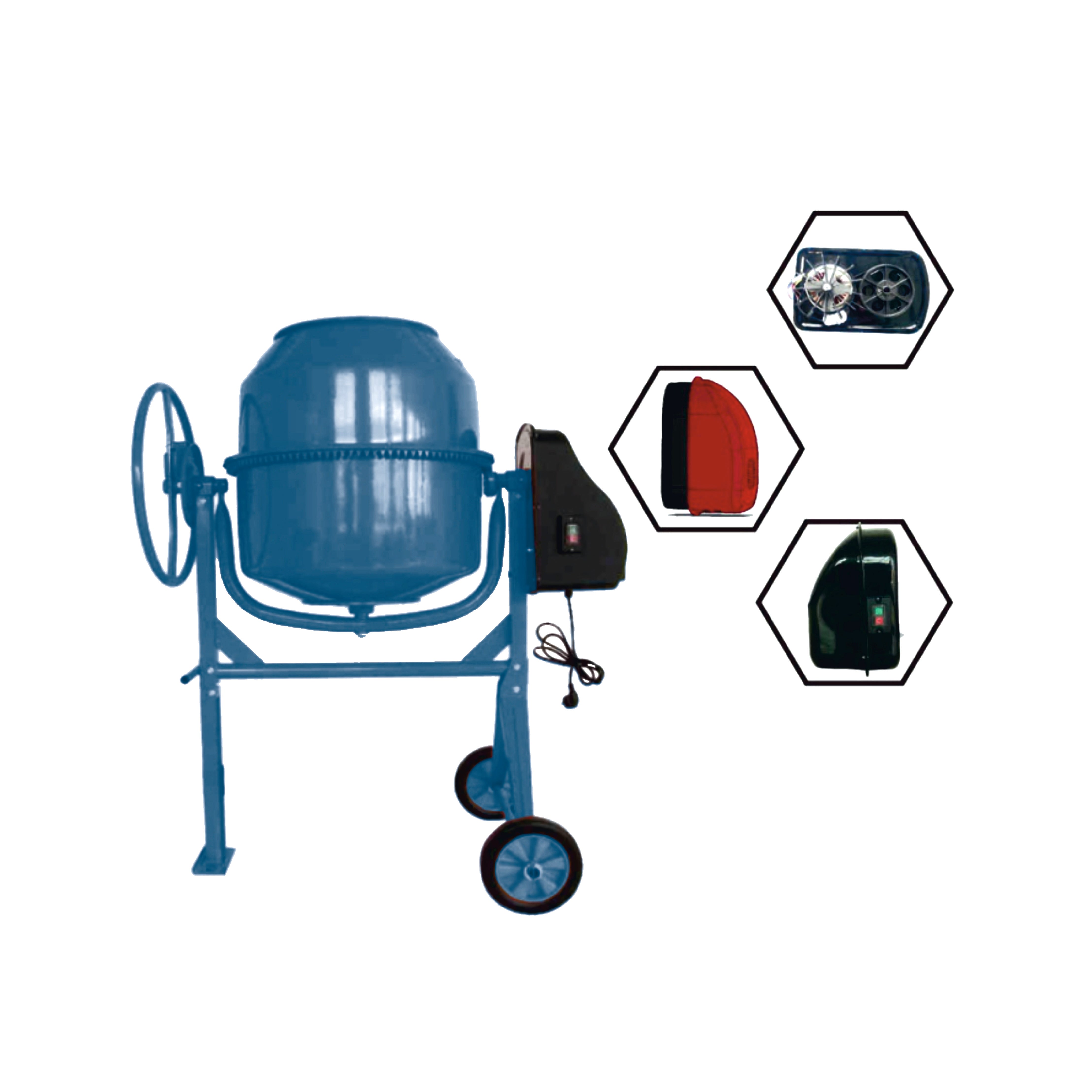

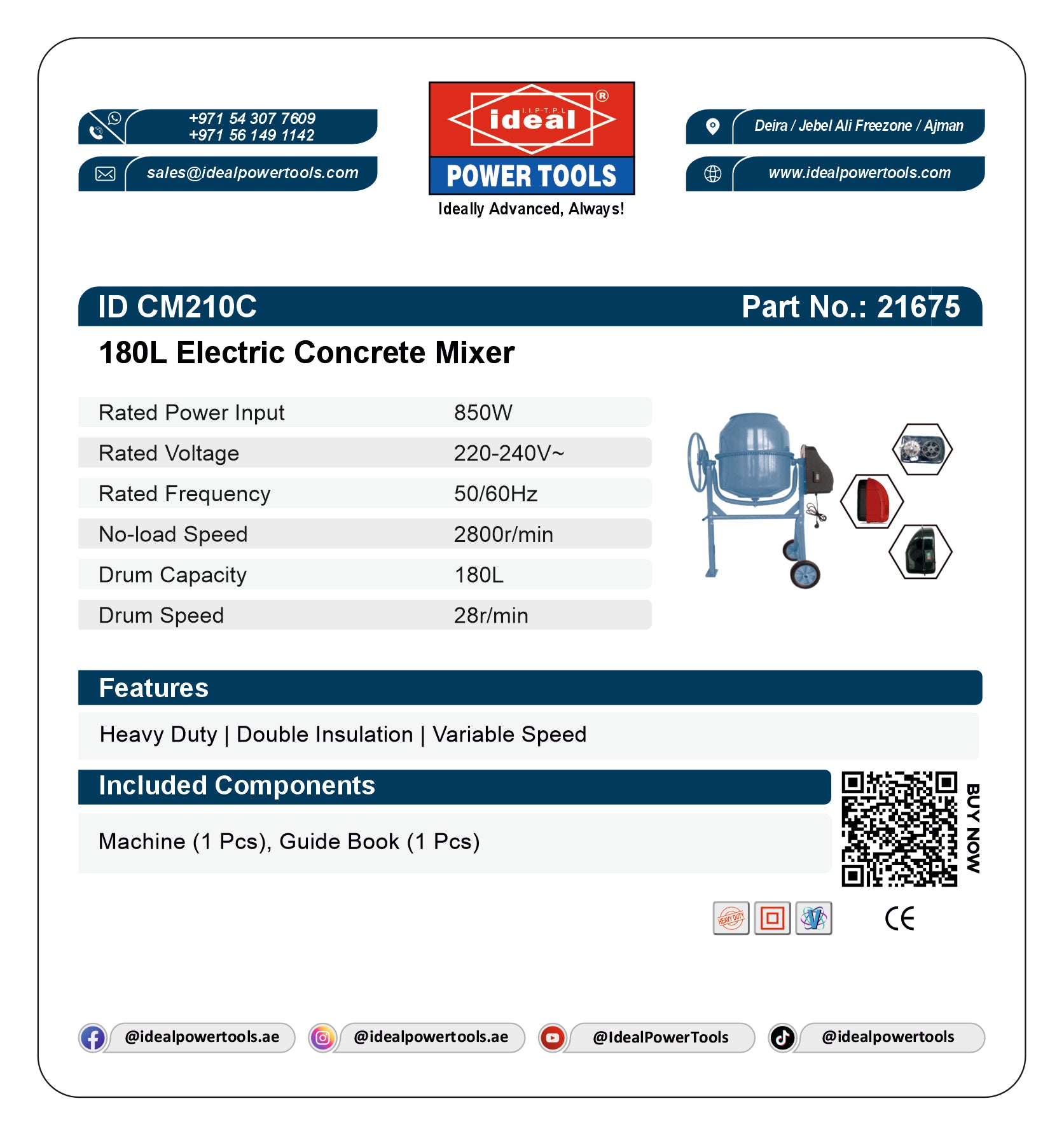

The ID CM210C Electric Concrete Mixer Machine is a professional-grade, gear-type drum mixer engineered for demanding construction environments. Powered by an 850W motor operating on 220–240V AC at 50/60Hz, this 180-litre capacity concrete mixer delivers consistent, high-quality concrete output at a steady drum speed of 28 r/min. Weighing just 50 kg and fitted with a Type G British 3-Pin plug, it is purpose-built for contractors, builders, and civil engineering professionals who require reliable, site-ready performance. Its double-insulated construction and CE-certified safety standards make it a trusted choice for both indoor and outdoor concrete mixing applications.
| Key Features | Perfect For |
|
|
- 850W Rated Power Input with 2800 r/min No-Load Motor Speed: The CM210C is driven by a robust gear-type electric motor rated at 850 watts, delivering a no-load speed of 2800 r/min that translates to a controlled drum rotation of 28 r/min. This gear-reduction mechanism ensures maximum torque is applied to the drum even under full load, preventing stalling when mixing dense concrete mixes with high aggregate content — a critical advantage over direct-drive mixers on demanding job sites.
- 180-Litre Drum Capacity for High-Volume Output: With a generous 180-litre drum, the CM210C is designed to produce substantial batches of concrete in a single cycle, significantly reducing the number of mixing rounds required on large pours. This capacity makes it well-suited for slab foundations, column bases, pathway construction, and block-laying projects where consistent batch volume directly impacts productivity and finish quality.
- Double Insulation for Enhanced Electrical Safety: The CM210C features a double-insulated electrical design, meaning all live electrical components are fully encased and can never come into contact with the outer metal or plastic housing of the machine. This eliminates the risk of electric shock from casing contact — a vital safety feature on wet construction sites where water and concrete slurry are ever-present hazards.
- Heavy-Duty Construction for Extended Service Life: Engineered with industrial-grade materials and innovative drive technology, the CM210C is built to outlast standard consumer-grade mixers. Its robust frame and drum assembly are designed to withstand the mechanical stress of continuous mixing cycles, the abrasive nature of cement and aggregate, and the rigours of daily transport and repositioning across active construction sites.
- 220–240V / 50–60Hz Universal AC Compatibility with Type G Plug: Operating on a rated voltage of 220–240V~ at 50 or 60Hz, the CM210C is compatible with standard mains power supplies across the UAE, UK, and other markets using the British electrical standard. The included Type G British 3-Pin plug means the machine is site-ready immediately upon delivery, with no need for adapters or rewiring — a practical advantage for contractors working across multiple locations.
- CE Machine Test Certification — Compliance You Can Rely On: The CM210C carries a CE (Machine Test) certification, confirming that it has been independently tested and verified to meet the essential health, safety, and environmental protection requirements of the European Machinery Directive. This certification provides assurance to procurement managers, site safety officers, and end users that the machine meets internationally recognised standards for electrical safety, mechanical integrity, and operator protection. The machine is supplied complete with a Guide Book to support correct setup, operation, and maintenance.
General Purchase & Comparison Queries
What is the drum capacity of the ID CM210C, and is it suitable for large construction projects?
The ID CM210C has a 180-litre drum capacity, making it well-suited for medium to large construction tasks including slab pours, column bases, pathways, and block-laying. Its gear-type motor and 28 r/min drum speed ensure thorough, consistent mixing even with high aggregate loads, delivering the batch volume and quality needed for professional site work.
Does the CM210C come with a plug, and which countries is it compatible with?
Yes. The CM210C is supplied with a Type G British 3-Pin plug and operates on 220–240V~ at 50/60Hz, making it immediately compatible with standard mains power in the UAE, United Kingdom, and other markets using the British electrical standard. No adapters or rewiring are required — it is site-ready straight out of the box.
Is the CM210C CE certified, and what does that mean for safety compliance?
Yes. The CM210C carries a CE (Machine Test) certification, confirming it has been independently tested against the European Machinery Directive's essential requirements for electrical safety, mechanical integrity, and operator protection. For procurement managers and site safety officers, this certification provides documented assurance that the machine meets internationally recognised standards — an important consideration for regulated construction environments.
Product-Specific and Usage Queries
What is the difference between a gear-type and a direct-drive concrete mixer?
A gear-type mixer like the CM210C uses a gear-reduction system between the motor and the drum. The motor runs at a high no-load speed of 2800 r/min, which is stepped down through gears to deliver a controlled drum speed of 28 r/min with significantly increased torque. This means the drum maintains consistent rotation even under the resistance of a full, heavy concrete load — reducing the risk of stalling that can occur with direct-drive motors when mixing dense mixes.
What does double insulation mean, and why is it important on a construction site?
Double insulation means that all live electrical components inside the CM210C are fully encased in insulating material and can never come into contact with the machine's outer casing. On a construction site — where water, concrete slurry, and wet conditions are common — this design eliminates the risk of electric shock from touching the machine's housing, providing a critical layer of operator safety without requiring an earth (ground) connection.
What is included with the CM210C when purchased?
The CM210C is supplied complete with the mixer machine itself and a Guide Book to support correct setup, safe operation, and routine maintenance. The Guide Book provides essential instructions for getting the machine operational quickly and maintaining it correctly for long-term performance.
Problem/Solution-Oriented Queries
What should I do if the drum stops rotating under a full concrete load?
If the drum stalls under load, first switch off the machine immediately and allow the motor to cool before restarting. The CM210C's gear-type drive is designed to handle heavy loads, but overloading beyond the 180-litre drum capacity or using an excessively dry, stiff mix can cause resistance. Reduce the batch size, add a small amount of water to adjust mix consistency, and restart. Always refer to the included Guide Book for recommended mix ratios and maximum load guidelines.
The machine is not starting — what are the most common causes and solutions?
The most common causes of a non-starting CM210C are: a tripped circuit breaker or blown fuse at the mains supply (check and reset/replace as needed); a loose or damaged plug connection (inspect the Type G plug and cable for damage); or the machine being switched off at the drum control rather than the mains. Ensure the power supply is 220–240V~ at 50/60Hz and that the outlet is functioning correctly. If the issue persists after these checks, consult the Guide Book or contact your authorised service centre.
How do I clean and maintain the CM210C to extend its service life?
After each use, rinse the drum thoroughly with clean water while the machine is running to prevent concrete from setting inside the drum — hardened concrete residue significantly reduces mixing efficiency and can damage the drum over time. Wipe down the exterior casing with a damp cloth, keeping water away from the motor housing and electrical components. Periodically inspect the drum, frame, and drive mechanism for wear, and lubricate moving parts as directed in the Guide Book. Store the machine in a dry, covered location when not in use to protect the motor and electrical components from moisture.
Machine (1 Pcs), Guide Book (1 Pcs)
