Professional Cutting Power — Precision, Safety, and Durability in Every Cut

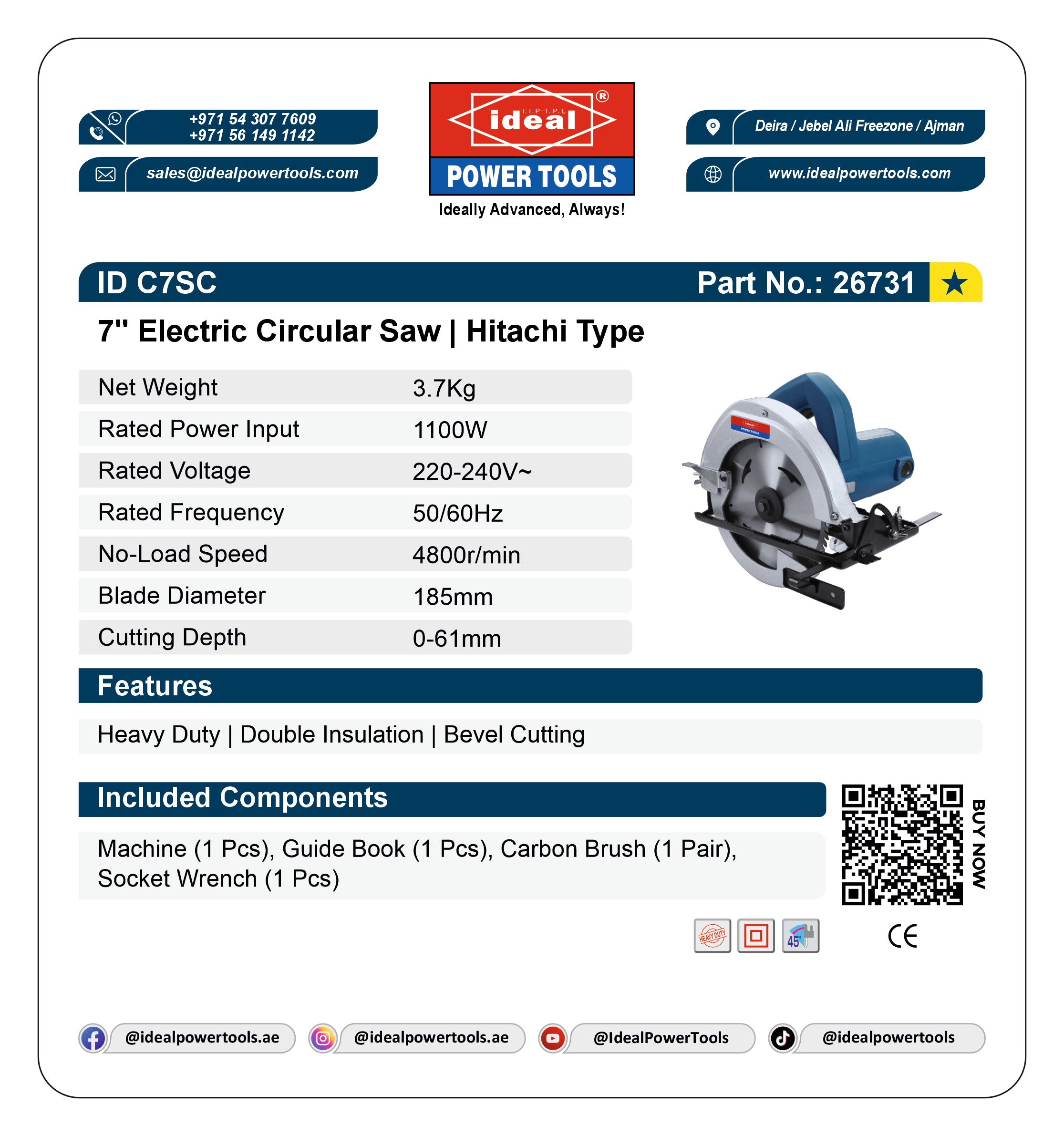

The ID C7SC 7-inch Electric Circular Saw Machine is a 1100W heavy-duty circular saw engineered for precision cutting through wood, metal, and plastic. Running at 4800 RPM on a 220–240V G-Type (British 3-Pin) supply, this Hitachi-type circular saw delivers consistent, professional-grade performance for construction, woodworking, and industrial maintenance applications. With a 185mm max blade diameter, 0°–45° bevel cutting capability, and double insulation safety design, it is built to handle demanding job-site conditions reliably.
| Key Features | Perfect For |
|
|
- 1100W Rated Power Input with 4800 RPM No-Load Speed: The C7SC delivers a powerful 1100-watt motor that spins the blade at up to 4800 revolutions per minute, enabling fast, smooth cuts through hardwood, softwood, plywood, aluminium profiles, and plastic sheeting — reducing job time and operator fatigue on extended use.
- 185mm Maximum Blade Diameter for Deep Cutting Capacity: Designed to accept blades up to 185mm (7 inches) in diameter, this saw achieves substantial cutting depth, making it suitable for full-thickness timber boards, structural lumber, and multi-layer sheet materials in a single pass.
- 0°–45° Bevel Cutting with Adjustable Angle Settings: The integrated bevel adjustment allows the blade to tilt from 0° to 45°, enabling precise mitre joints, chamfered edges, bevel cuts, and angled profiles. This makes the saw ideal for finish carpentry, cabinet making, roof framing, and decorative woodworking applications.
- Double Insulation for Maximum Operator Safety: Built with a double insulation system, the electrical components are completely separated from the tool's outer housing. This eliminates the risk of electric shock even in the absence of an earthed connection, meeting international safety standards for Class II power tools.
- Type G Plug (British 3-Pin) for GCC and UK Compatibility: Supplied with a Type G British 3-pin plug, the C7SC is ready for immediate use across the UAE, Saudi Arabia, UK, and other 220–240V markets without the need for adapters or rewiring — ideal for professional and trade use in the Gulf region.
- Lightweight 3.7kg Build for Portability and Control: Weighing just 3.7 kg, this circular saw strikes the right balance between robust construction and ease of handling, reducing operator strain during overhead cuts, long rip cuts, or repeated use across a full working day.
- Complete Ready-to-Use Kit: The C7SC ships as a complete package including the machine, a guide book, an auto-stop carbon brush set (1 pair), and a socket wrench — providing everything needed for immediate deployment and routine maintenance without additional purchases.
General Purchase & Comparison Queries
Is the ID C7SC compatible with standard 185mm circular saw blades?
Yes. The ID C7SC accepts blades up to 185mm (7 inches) in diameter, which is the most widely available size for circular saws in the GCC and international markets. This means you can easily source replacement or specialty blades — including wood-cutting, metal-cutting, and multi-material blades — from local hardware suppliers without compatibility concerns.
What plug type does this circular saw use, and is it suitable for use in the UAE?
The C7SC comes fitted with a Type G British 3-pin plug, which is the standard plug type used across the UAE, Saudi Arabia, Qatar, Bahrain, and the United Kingdom. It operates on 220–240V at 50/60Hz, making it fully compatible with the UAE mains supply — no adapter or voltage converter is required.
How does the ID C7SC compare to other 7-inch circular saws in its class?
The ID C7SC [21656] is modelled on the proven Hitachi C7 platform, offering a 1100W motor, 4800 RPM speed, 0°–45° bevel cutting capacity, and double insulation in a compact 3.7kg body. Compared to budget alternatives, it stands out with its auto-stop carbon brush system that protects the motor from wear, and its Class II double insulation safety rating — features typically found on higher-priced professional tools.
Product-Specific and Usage Queries
What materials can the ID C7SC cut?
The C7SC is designed to cut wood, metal, and plastic depending on the blade fitted. With a standard wood-cutting blade, it handles softwood, hardwood, plywood, and MDF. Fitting a metal-cutting or TCT blade allows it to cut aluminium profiles, thin steel sheets, and plastic pipes — making it a versatile tool for construction, fabrication, and maintenance tasks.
Can this saw make angled or bevel cuts?
Yes. The ID C7SC features an adjustable 0°–45° bevel cutting capacity, allowing precise angled cuts for chamfered edges, mitre joints, roof framing, skirting boards, cabinetry, and decorative woodworking. The adjustable bevel mechanism provides accurate, repeatable cuts for professional applications.
What is included in the box with the C7SC circular saw?
The package includes the C7SC circular saw machine, a guide book for safe operation and maintenance, an auto-stop carbon brush set (1 pair) for motor protection and longevity, and a socket wrench for blade changes — providing a complete, ready-to-use kit straight out of the box.
Problem/Solution-Oriented Queries
What should I do if the circular saw stops working during use?
The C7SC is equipped with an auto-stop carbon brush set that automatically cuts power to the motor when the carbon brushes wear down to a safe limit — preventing motor damage. If the saw stops unexpectedly, check and replace the carbon brushes using the included socket wrench. Replacement brushes are a standard consumable and are widely available. Always ensure the saw is unplugged before performing any maintenance.
Is this saw safe to use without an earthed socket?
Yes. The C7SC features a double insulation design (Class II), meaning the internal electrical components are fully isolated from the outer casing through two independent layers of insulation. This eliminates the need for an earth connection to protect the operator from electric shock, making it safe for use in environments where earthed sockets may not always be available — such as outdoor construction sites or older buildings.
The saw is vibrating excessively — what could be causing this?
Excessive vibration is most commonly caused by a damaged, unbalanced, or incorrectly fitted blade. Ensure the blade is securely tightened using the included socket wrench and that it is the correct diameter (185mm max) and type for the material being cut. Also check that the blade is not warped or chipped. If vibration persists after fitting a new blade, inspect the blade guard and base plate for damage and contact your local service centre.
Machine (1 Pcs), Guide Book (1 Pcs), Auto-stop Carbon Set (1 Pair), Socket Wrench (1 Pcs), Parallel Guide Ruler (1 Pcs), Ideal TCT Blade [7" X 40T] (1 Pcs)
