Professional Cutting Power — Built for the Job Site

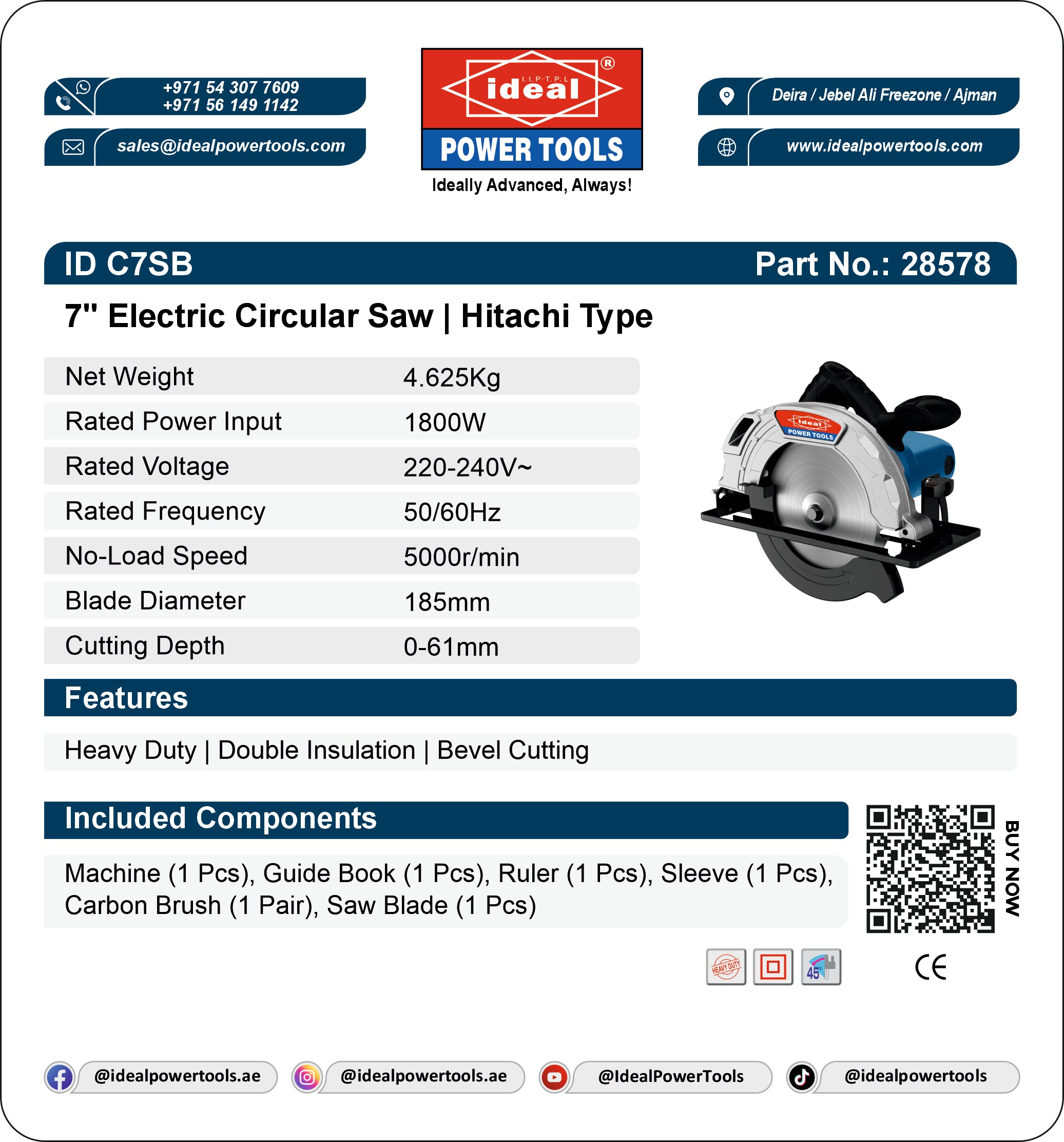

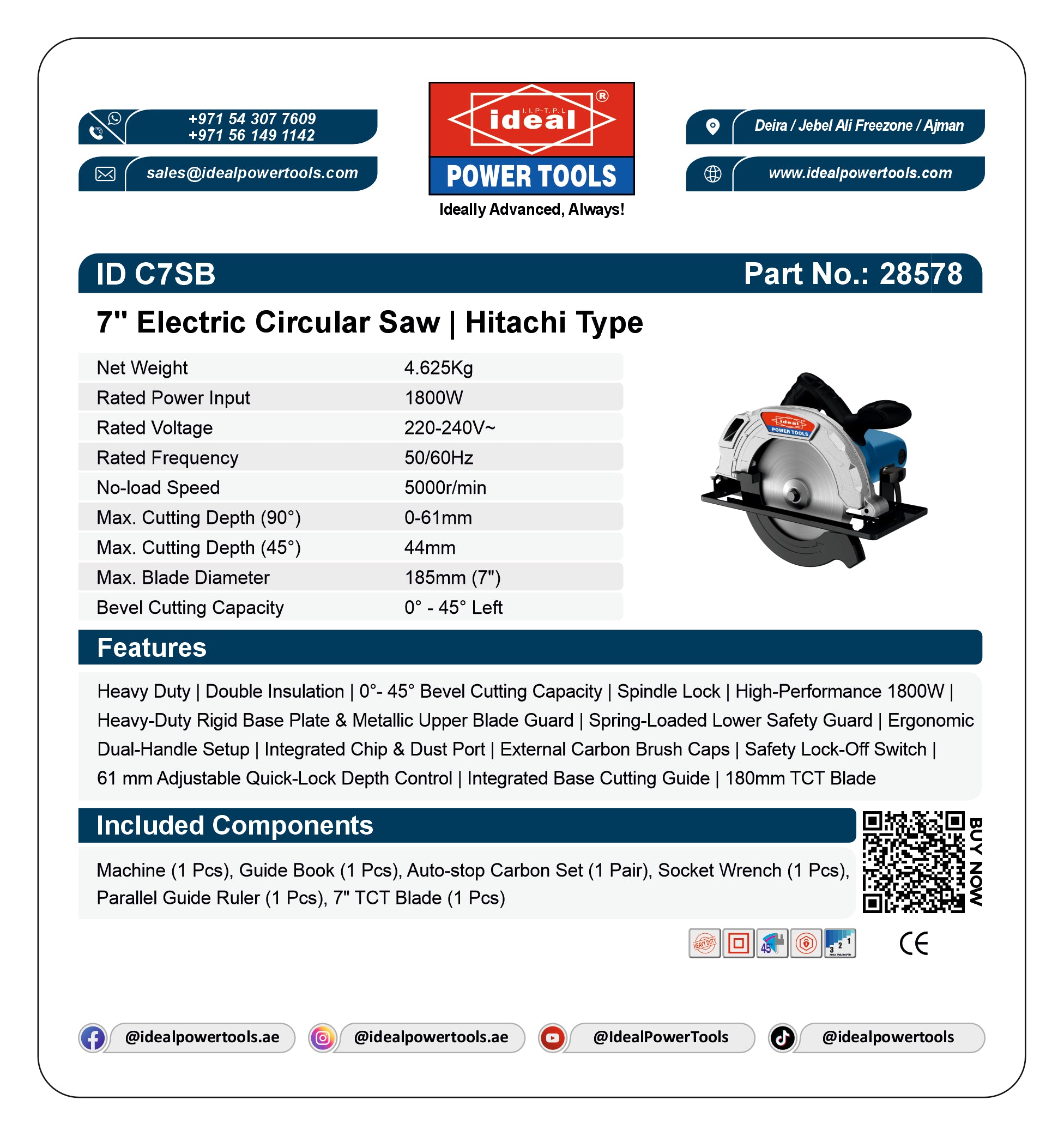

The ID C7SB 7-inch Electric Circular Saw Machine is a professional-grade 1800W circular saw engineered for demanding cutting tasks across wood, metal, and plastic. Powered at 220-240V with a 5000 RPM no-load speed and a 61mm cutting depth capacity, this Hitachi-type circular saw delivers fast, precise straight and 0°–45° bevel cuts for trade professionals and serious DIY users. It comes fitted with a Type G British 3-Pin plug, making it ready for immediate use across GCC and UK-standard power outlets.
| Key Features | Perfect For |
|
|
- 1800W rated power input drives the 185mm blade at up to 5000 RPM no-load speed, delivering the torque and velocity needed to rip through hardwood, softwood, sheet metal, and rigid plastics without bogging down mid-cut.
- Variable speed trigger gives the operator full control over cutting pace — a light squeeze produces slower, more controlled entry cuts, while full depression unleashes maximum RPM for fast, clean through-cuts on thicker stock.
- 0°–45° bevel cutting adjustment allows the base plate to tilt for precise angled cuts, making it ideal for chamfering edges, cutting skirting boards, and producing angled joints in joinery and cabinetry work.
- Double insulation construction ensures that all live electrical components are fully isolated from the outer housing, eliminating the risk of electric shock even in the event of internal insulation failure — a critical safety standard for professional power tools.
- 61mm maximum cutting depth at 90 degrees accommodates standard dimensional timber, MDF boards, and structural panels, while the 185mm blade diameter provides the reach needed for full-depth cuts in a single pass without repositioning.
- 220-240V / 50-60Hz rated voltage and frequency ensures full compatibility with standard mains power supplies across the UAE, GCC, and UK markets, and the included Type G British 3-Pin plug means no adapter is required for immediate deployment.
The ID C7SB is supplied complete with the machine, a guide book, a parallel fence ruler for guided rip cuts, a blade sleeve for safe storage and transport, a replacement pair of carbon brushes for extended service life, and a pre-fitted 185mm saw blade — everything required to begin cutting straight out of the box.
General Purchase & Comparison Queries
Is the ID C7SB the same as a Hitachi circular saw?
The ID C7SB is a Hitachi-type 7-inch circular saw, meaning it is built to the same design standard and is compatible with Hitachi-pattern accessories and blades. It delivers equivalent 1800W power output and 185mm blade diameter performance, making it a direct functional alternative at a competitive price point.
What plug type does this circular saw use, and is it compatible with UAE sockets?
The ID C7SB comes fitted with a Type G British 3-Pin plug, which is the standard plug type used across the UAE, GCC, and UK. No adapter is required — simply plug in and begin work. The machine is rated at 220-240V / 50-60Hz, fully compatible with standard mains supplies in these regions.
Does this saw come with a blade included?
Yes. The ID C7SB is supplied with a 185mm saw blade pre-fitted and ready to use. The package also includes a guide book, a parallel fence ruler, a blade sleeve, and a spare pair of carbon brushes — providing everything needed to begin cutting immediately upon delivery.
Product-Specific and Usage Queries
What is the maximum cutting depth of the ID C7SB circular saw?
The ID C7SB offers a maximum cutting depth of 61mm at 90 degrees. This accommodates standard dimensional timber, structural panels, and MDF boards in a single pass. The 185mm blade diameter ensures sufficient reach for full-depth cuts without the need to reposition the workpiece.
Can this circular saw make bevel cuts?
Yes. The ID C7SB features an adjustable 0°–45° bevel cutting capacity, allowing the base plate to tilt for precise angled cuts. This is ideal for producing chamfered edges, angled joints, skirting board cuts, and other bevel applications in joinery, cabinetry, and construction.
What does the variable speed trigger do on this saw?
The variable speed trigger allows the operator to control the blade RPM by adjusting finger pressure. A light squeeze produces a slower, more controlled speed suitable for precise entry cuts or delicate materials, while full depression delivers the maximum 5000 RPM no-load speed for fast, efficient cutting through thicker or denser stock.
Problem/Solution-Oriented Queries
The saw is losing power during heavy cuts — what should I check?
Power loss during heavy cutting is most commonly caused by worn carbon brushes. The ID C7SB includes a spare pair of carbon brushes in the box for exactly this reason. Inspect and replace the brushes if they are worn below the minimum length. Also ensure the blade is sharp and appropriate for the material being cut, as a dull or incorrect blade significantly increases motor load.
How do I ensure straight cuts with this circular saw?
The ID C7SB includes a parallel fence ruler (rip fence) that attaches to the base plate and rides along the edge of the workpiece, maintaining a consistent distance between the blade and the material edge. For longer cuts or sheet material, use the fence in combination with a straightedge clamped to the workpiece for maximum accuracy.
Is this saw safe to use without an earth connection given it has double insulation?
Yes. The ID C7SB is built with double insulation, which means all live electrical components are fully isolated from the outer casing by two independent layers of insulation. This design eliminates the need for an earth connection and meets the safety standard for Class II power tools. The Type G plug supplied includes the earth pin for mechanical socket compatibility, but the tool itself does not rely on earth continuity for safe operation.
Machine (1 Pcs), Guide Book (1 Pcs), Auto-stop Carbon Set (1 Pair), Socket Wrench (1 Pcs), Parallel Guide Ruler (1 Pcs), Ideal TCT Blade [7" X 40T] (1 Pcs)
