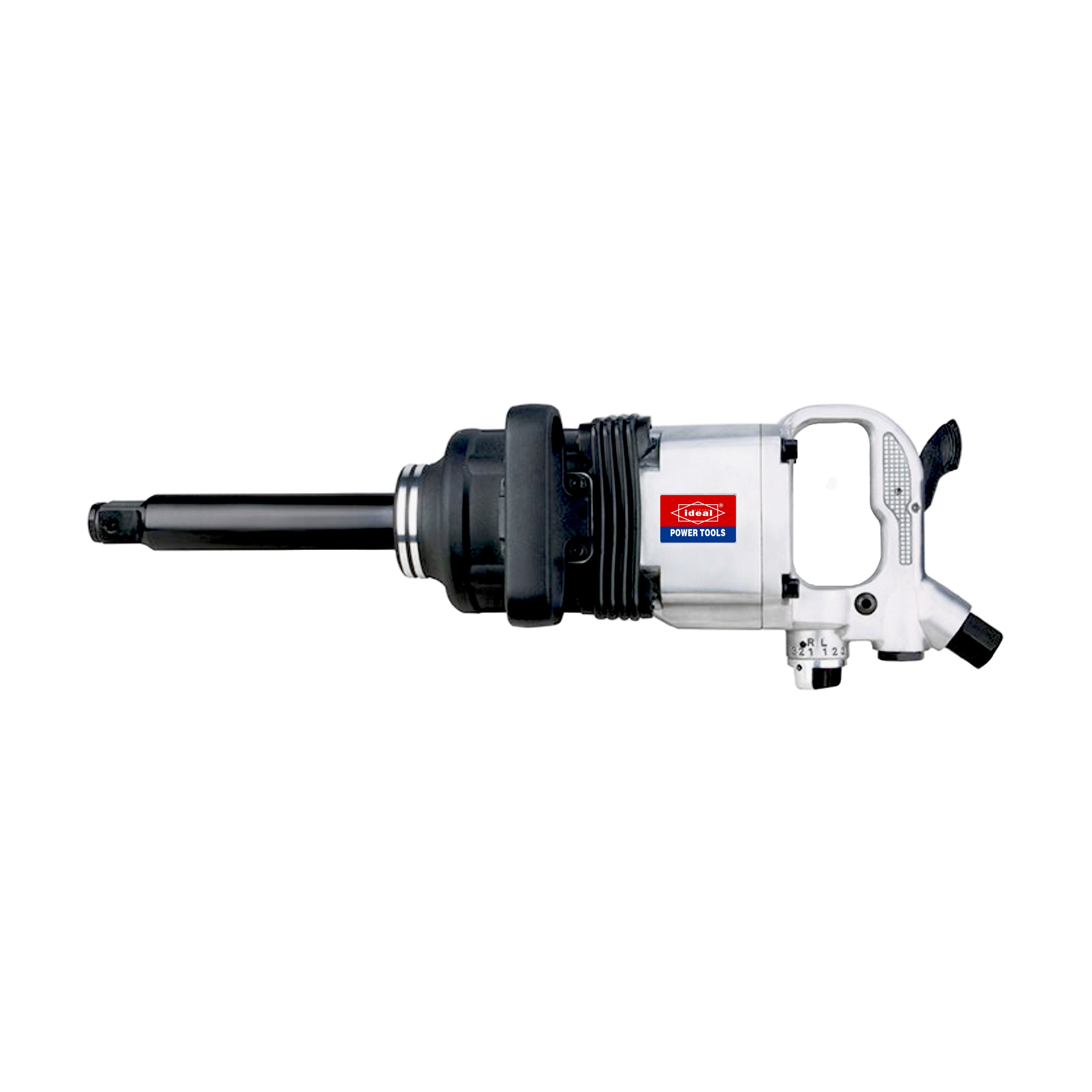

ID AW425 PNEUMATIC IMPACT WRENCH MACHINE [AIR TOOL] - 20413

The ID AW425 operates on a 1-inch square drive — a full two sizes larger than a standard 1/2-inch impact wrench. This translates directly into a maximum torque output of 2180 Nm (1602 FT-LB), which is several times greater than what a typical 1/2-inch tool can produce. While a 1/2-inch wrench is suited for passenger vehicles and light-duty tasks, the AW425 is purpose-built for heavy trucks, industrial machinery, and structural steel applications where extreme fastener torque is the norm.

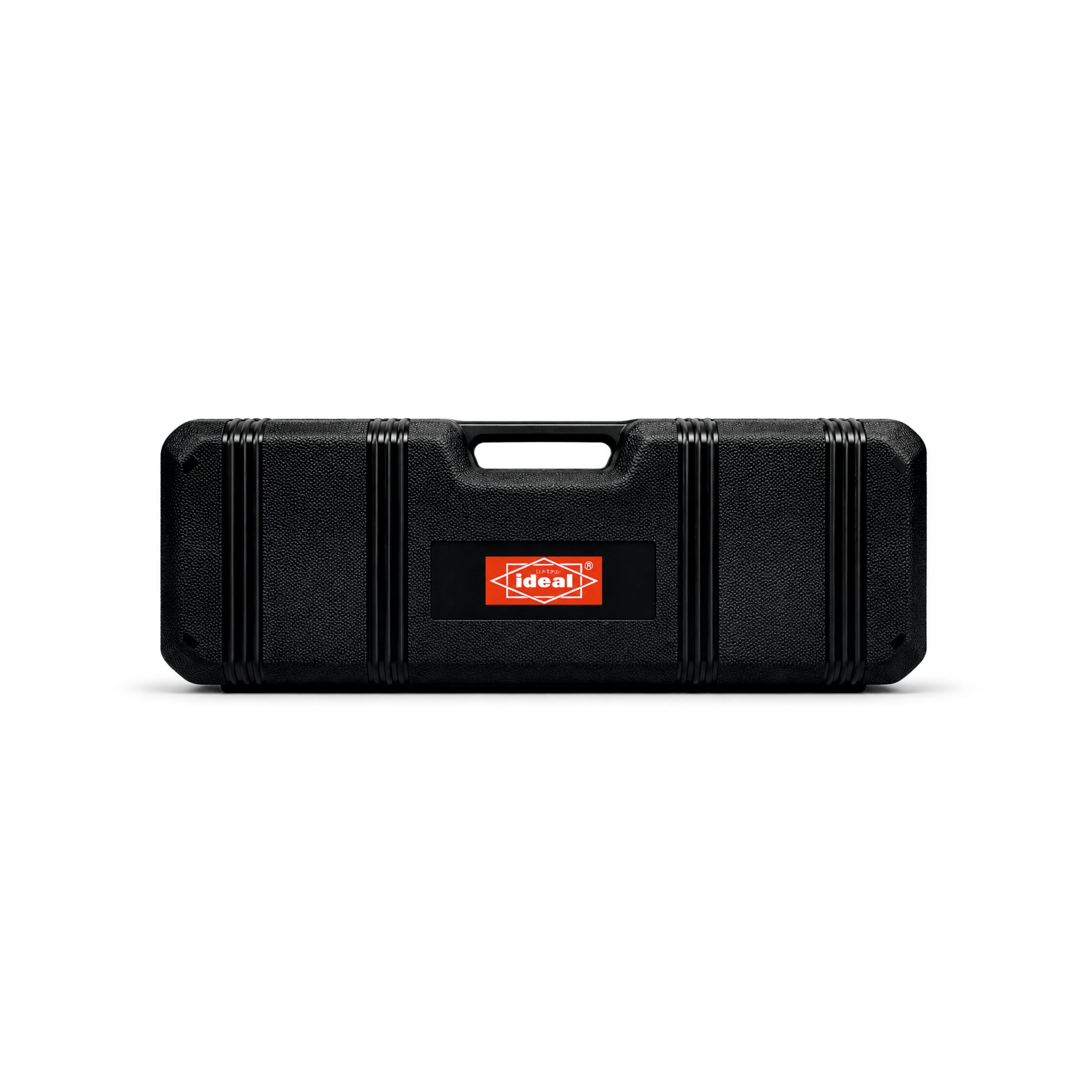

The AW425 is designed exclusively for professional and industrial continuous use. Its heavy-duty industrial housing, efficient pneumatic motor with optimized airflow, and high no-load speed of 4200 RPM are all engineered to perform reliably under the demands of a busy commercial workshop or job site. The inclusion of a PVC carrying case and a comprehensive accessory kit further underscores its suitability as a primary professional tool rather than an occasional-use device.

To run the AW425 at full performance, your air compressor must be capable of supplying a minimum of 15 CFM (425 L/min) of sustained airflow at a working pressure between 0.8 and 1.4 MPa. A compressor that cannot meet this airflow demand will result in reduced torque output and potential motor stalling. For heavy-duty continuous use, a large-tank industrial compressor (typically 80 gallons or more) is strongly recommended to maintain consistent pressure throughout extended operation.

The 8-inch anvil is one of the AW425's most practical design features. It allows the tool to reach deeply recessed bolts that are inaccessible to standard short-anvil impact wrenches — such as those found inside deep-dish commercial truck wheels, heavy equipment frames, and industrial machinery housings. This eliminates the need for separate extension bars, which can reduce torque transfer efficiency and create safety risks, making the AW425 a faster and safer solution for deep-access fastening tasks.

Yes. The AW425 features an integrated adjustable air pressure regulator that allows you to dial in the precise torque output required for each specific application. By reducing the air pressure supplied to the tool, operators can lower the effective torque output — making it possible to use the AW425 for applications that require controlled tightening without risking damage to fasteners, threads, or components. This makes the tool versatile across a wider range of tasks beyond maximum-torque applications.

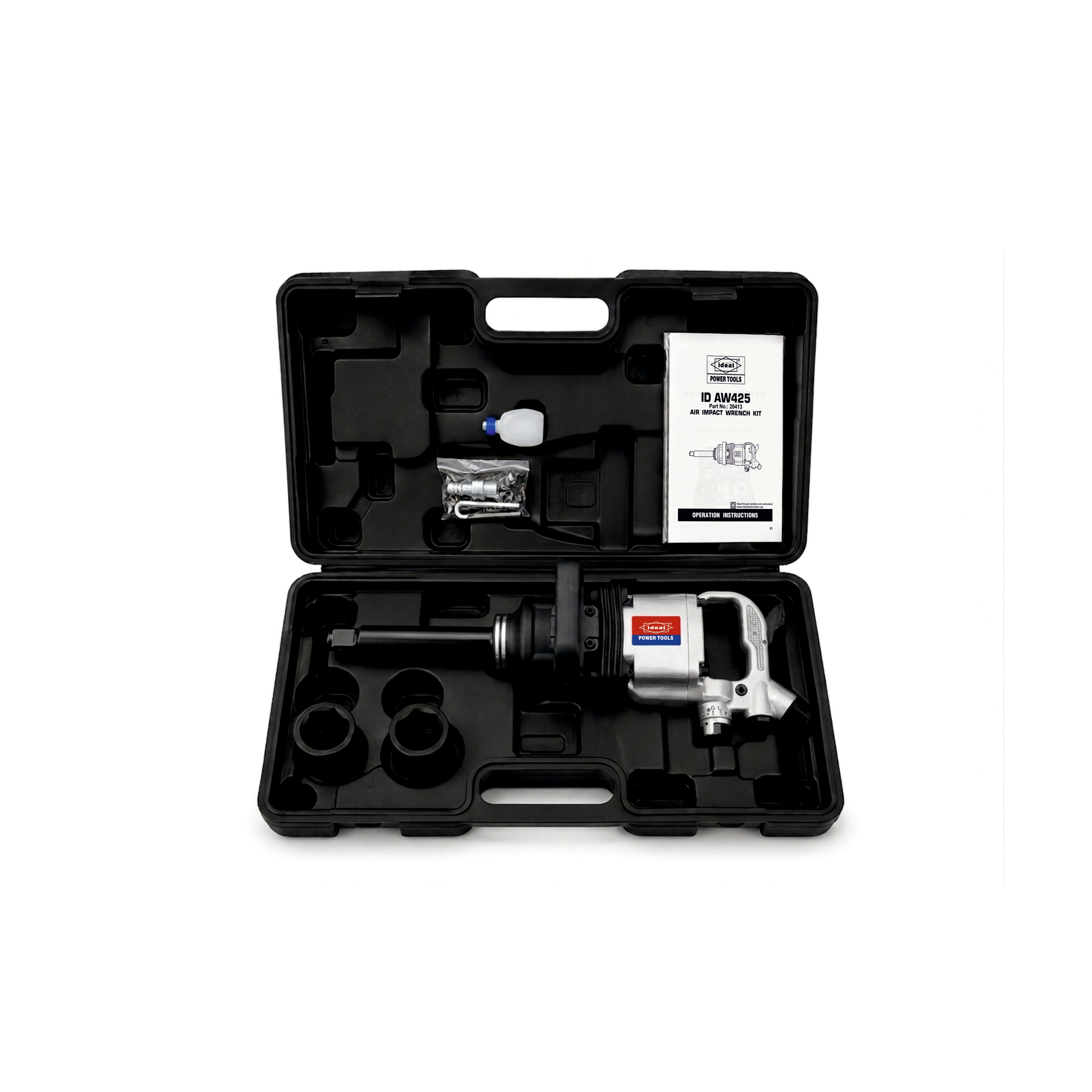

The AW425 kit includes 32mm and 33mm impact sockets — the most common sizes used for heavy truck lug nuts and large industrial fasteners. The tool's 1-inch square drive is compatible with the full range of 1-inch drive impact sockets available on the market, and the tool is rated for a maximum bolt capacity of 30mm. Additional sockets can be sourced separately to expand the tool's range of compatible fastener sizes for specialized applications.

Power loss during operation is almost always related to insufficient air supply. The AW425 requires a sustained 15 CFM (425 L/min) at 0.8–1.4 MPa to operate at full capacity. If your compressor tank depletes faster than it can refill, the tool will experience pressure drops and reduced torque. Additionally, check that your air hose diameter is adequate (a minimum 1/2-inch bore hose is recommended for 1-inch drive tools), that all fittings are airtight, and that the oil port has been lubricated as per the guide book instructions to maintain internal motor efficiency.

The most effective way to prevent over-tightening is to use the tool's integrated air pressure regulator to reduce the output torque to a level appropriate for the fastener specification. Start at a lower pressure setting and incrementally increase until the desired torque is achieved. For critical applications with strict torque specifications — such as engine components or structural bolts — it is best practice to use the AW425 for the initial tightening phase and then finish with a calibrated torque wrench to confirm the exact final torque value.

Proper maintenance of the AW425 centers on regular pneumatic motor lubrication. Use the included oil port to add a few drops of pneumatic tool oil before each use or at the start of each working day. Always connect the tool to a clean, dry air supply — moisture in the air line is a leading cause of internal corrosion and premature motor wear. When not in use, store the tool in its PVC carrying case to protect it from dust, debris, and physical damage. Periodically inspect all air fittings and the hose connection for leaks, and refer to the included guide book for the manufacturer's full recommended maintenance schedule.
