ID AW17K PNEUMATIC IMPACT WRENCH MACHINE [AIR TOOL] - 20410
Chat with us
Choose options
Maximum Torque, Precision Control — The Professional's Pneumatic Impact Wrench
The ID AW17K Pneumatic Impact Wrench is a professional-grade air-powered impact wrench machine engineered for heavy-duty fastening and loosening applications across automotive, construction, and industrial maintenance environments. Delivering a maximum torque of 312 Nm (230 lb-ft) at 7,000 RPM through a robust ½-inch square drive, this pneumatic tool operates at a standard 90 PSI air pressure with an average air consumption of just 5 CFM (141 L/min) — making it both powerful and air-efficient. With adjustable torque settings, a double-insulated body, and a complete socket set, the AW17K is built for professionals who need reliable, high-torque performance day in and day out.
- 312 Nm (230 lb-ft) Maximum Torque at 7,000 RPM: The AW17K delivers a formidable 312 Newton-metres of maximum torque — equivalent to 230 lb-ft — at a rated speed of 7,000 RPM. This level of rotational force is sufficient to tackle the most stubborn fasteners encountered in automotive, structural, and heavy industrial applications, from seized lug nuts on commercial vehicles to high-tension bolts on construction equipment, without the physical strain of manual wrenching.
- ½-Inch Square Drive with 14mm (9/16") Bolt Capacity: The industry-standard ½-inch (14mm) square drive ensures broad compatibility with a wide range of impact-rated sockets and accessories. The 14mm bolt capacity covers the most common fastener sizes used in automotive and construction work, and the included set of 10 metric sockets (9 through 27mm) and a 125mm extension bar means you have the right fit for virtually every job without additional purchases.
- Adjustable Torque Settings for Precision Fastening: The built-in torque adjustment mechanism allows the operator to dial in the exact turning power required for each application — preventing over-tightening on sensitive assemblies while still delivering full power when maximum force is needed. This level of precision torque control is critical in professional environments where fastener integrity directly impacts safety and equipment longevity, such as brake caliper bolts, suspension components, and structural connections.
- Efficient Pneumatic Operation at 90 PSI with ¼-Inch Air Inlet: Designed to run on a standard 90 PSI (6.3 kg/cm²) compressed air supply through a ¼-inch air inlet, the AW17K integrates seamlessly with most workshop compressor setups without requiring specialist fittings. With an average air consumption of only 5 CFM (141 L/min), it is notably air-efficient for its torque output — reducing compressor load and allowing sustained use in high-demand workshop environments. The included oil pot, mini oiler, and nipple support proper pneumatic maintenance for long-term reliability.
- Double-Insulated Heavy-Duty Construction for Long-Term Durability: The AW17K is built to outlast demanding work conditions through its double-insulated design, which ensures that internal components are fully isolated from the outer casing — eliminating the risk of electrical contact and enhancing operator safety in mixed-tool environments. At 4 kg net weight, the tool strikes a balance between robust build quality and manageable handling, reducing operator fatigue during extended use sessions on production lines or job sites.
- Complete Kit with PVC Carrying Case for Organised Storage and Transport: The AW17K ships as a fully equipped kit, making it ready for immediate deployment. The rugged PVC carrying case securely houses the wrench, all sockets, extension bar, hex key, oiling accessories, and guide book — protecting the investment during transport between job sites and ensuring every component is accounted for and organised. This level of kit completeness makes the AW17K an ideal choice for mobile mechanics, site engineers, and workshop professionals who need a dependable all-in-one solution.

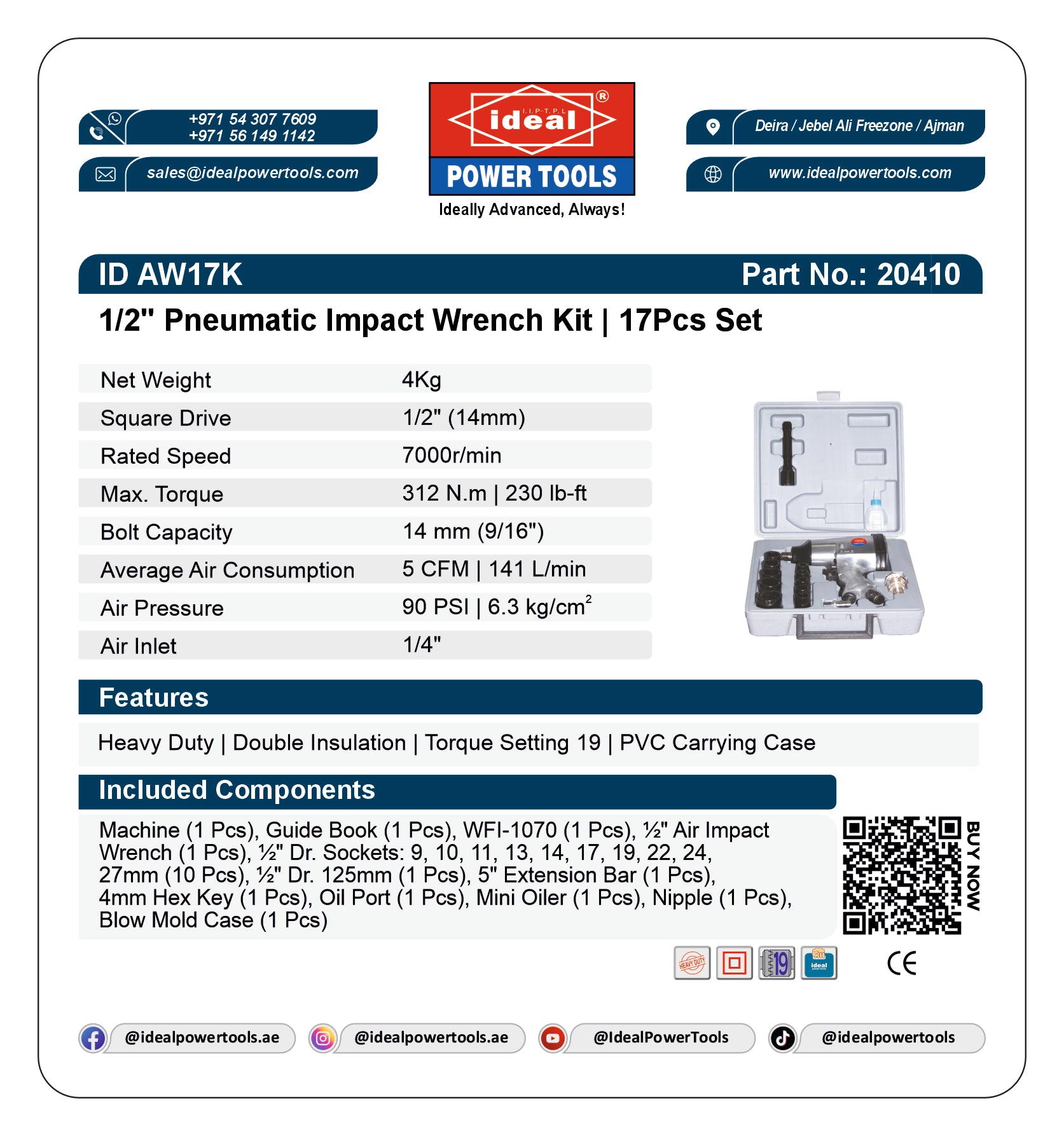

- The ID AW17K Pneumatic Impact Wrench is CE certified (machine-level safety testing), confirming it meets European safety and performance standards for professional power tools. The complete kit includes the impact wrench machine, a WFI-1070 accessory, ten ½-inch drive metric sockets (9, 10, 11, 13, 14, 17, 19, 22, 24, and 27mm), a ½-inch drive 125mm extension bar, a 4mm hex key, an oil pot, a mini oiler, a nipple fitting, a PVC carrying case, and a guide book — providing a fully self-contained solution for professional pneumatic fastening work.
| Key Features | Perfect For |
|---|---|
|
|
General Purchase & Comparison Queries
What is included in the AW17K kit and do I need to buy anything extra?
The ID AW17K kit is comprehensively equipped for immediate use. It includes the pneumatic impact wrench, a WFI-1070 accessory, 10 metric ½-inch drive sockets (9, 10, 11, 13, 14, 17, 19, 22, 24, and 27mm), a 125mm extension bar, a 4mm hex key, an oil pot, a mini oiler, a nipple fitting, a PVC carrying case, and a guide book. The only external requirement is a compressed air supply at 90 PSI with a standard ¼-inch connection — which is typically available in any professional workshop or garage compressor setup.
How does a pneumatic impact wrench compare to an electric or cordless impact wrench?
Pneumatic impact wrenches like the AW17K generally offer a superior power-to-weight ratio compared to electric or cordless alternatives. At 4 kg and 312 Nm of torque, the AW17K delivers professional-grade output without the added weight of a battery pack or the heat limitations of an electric motor. Pneumatic tools also tend to have longer operational lifespans in continuous-use environments since they don't generate motor heat. The trade-off is the requirement for a compressed air source, making them best suited for fixed workshop or site setups with an existing compressor.
Is the AW17K suitable for automotive workshop use?
Yes — the AW17K is specifically well-suited for automotive workshop applications. Its ½-inch square drive, 312 Nm maximum torque, and included socket set covering sizes from 9mm to 27mm address the full range of fasteners encountered in passenger vehicle and light commercial vehicle servicing. Tasks such as wheel lug nut removal, brake caliper bolt loosening, suspension component work, and engine bay fastening are all within its capability. The CE certification and double-insulated construction further confirm its suitability for professional workshop environments.
Product-Specific and Usage Queries
What air compressor specifications do I need to run the AW17K?
The AW17K requires a compressed air supply delivering 90 PSI (6.3 kg/cm²) through a ¼-inch air inlet connection. The tool's average air consumption is 5 CFM (141 litres per minute), so your compressor should be rated to sustain at least this output continuously during use. Most professional workshop compressors in the 24–50 litre tank range with a 1.5–2 HP motor will comfortably meet these requirements. The included nipple fitting ensures a secure connection to standard air hose couplings.
How do I adjust the torque on the AW17K?
The AW17K features a built-in torque adjustment setting that allows you to control the rotational force applied to fasteners. This is typically managed via a regulator or selector switch on the tool body — refer to the included guide book for the specific adjustment procedure for your unit. For sensitive assemblies such as alloy wheel bolts or plastic-backed components, use a lower torque setting to avoid over-tightening. For heavy-duty applications like structural bolts or seized fasteners, set the torque to maximum to utilise the full 312 Nm output.
How should I maintain the AW17K to ensure long-term performance?
Pneumatic tools require regular lubrication to maintain performance and extend service life. The AW17K kit includes an oil pot and mini oiler specifically for this purpose — add a few drops of pneumatic tool oil into the ¼-inch air inlet before each use session to lubricate the internal motor and hammer mechanism. Ensure your air supply is clean and dry; moisture in the air line can cause internal corrosion over time. After use, store the tool in the included PVC carrying case to protect it from dust, impact, and environmental exposure. Periodically inspect sockets and the extension bar for wear.
Problem/Solution-Oriented Queries
The wrench is not delivering full torque — what could be the issue?
Reduced torque output is most commonly caused by insufficient air pressure at the tool. Verify that your compressor is delivering a consistent 90 PSI at the point of connection — pressure drops in long or undersized air hoses can significantly reduce performance. Also check that the air inlet and hose fittings are fully sealed with no leaks. If the tool has not been lubricated recently, add pneumatic tool oil via the air inlet using the included mini oiler, as a dry motor will lose efficiency. Finally, confirm the torque adjustment setting is not inadvertently set to a lower output level.
The tool is making unusual noise during operation — is this normal?
Some operational noise is normal for pneumatic impact wrenches due to the hammer mechanism that generates impact torque. However, if you notice a rattling, grinding, or irregular knocking sound that differs from normal operation, this may indicate insufficient lubrication, a loose internal component, or debris ingress. First, lubricate the tool by adding a few drops of pneumatic oil into the air inlet and running the tool briefly without load. If the noise persists, cease use and consult the guide book or contact your point of purchase, as the unit is CE certified and should be assessed under its quality guarantee.
Machine (1 Pcs), Guide Book (1 Pcs), WFI-1070 (1 Pcs), 1/2” Air Impact Wrench (1 Pcs), 1/2” Dr. Sockets: 9, 10, 11, 13, 14, 17, 19, 22, 24, 27mm (10 Pcs),1/2” Dr. 125mm (1 Pcs), (5”) Extension Bar (1 Pcs), 4mm Hex Key (1 Pcs), Oil Pot (1 Pcs), Mini Oiler (1 Pcs), Nipple (1 Pcs), PVC Carrying Case (1 Pcs)
