Heavy-Duty Inverter Welding Power with Precise 40–650A Control

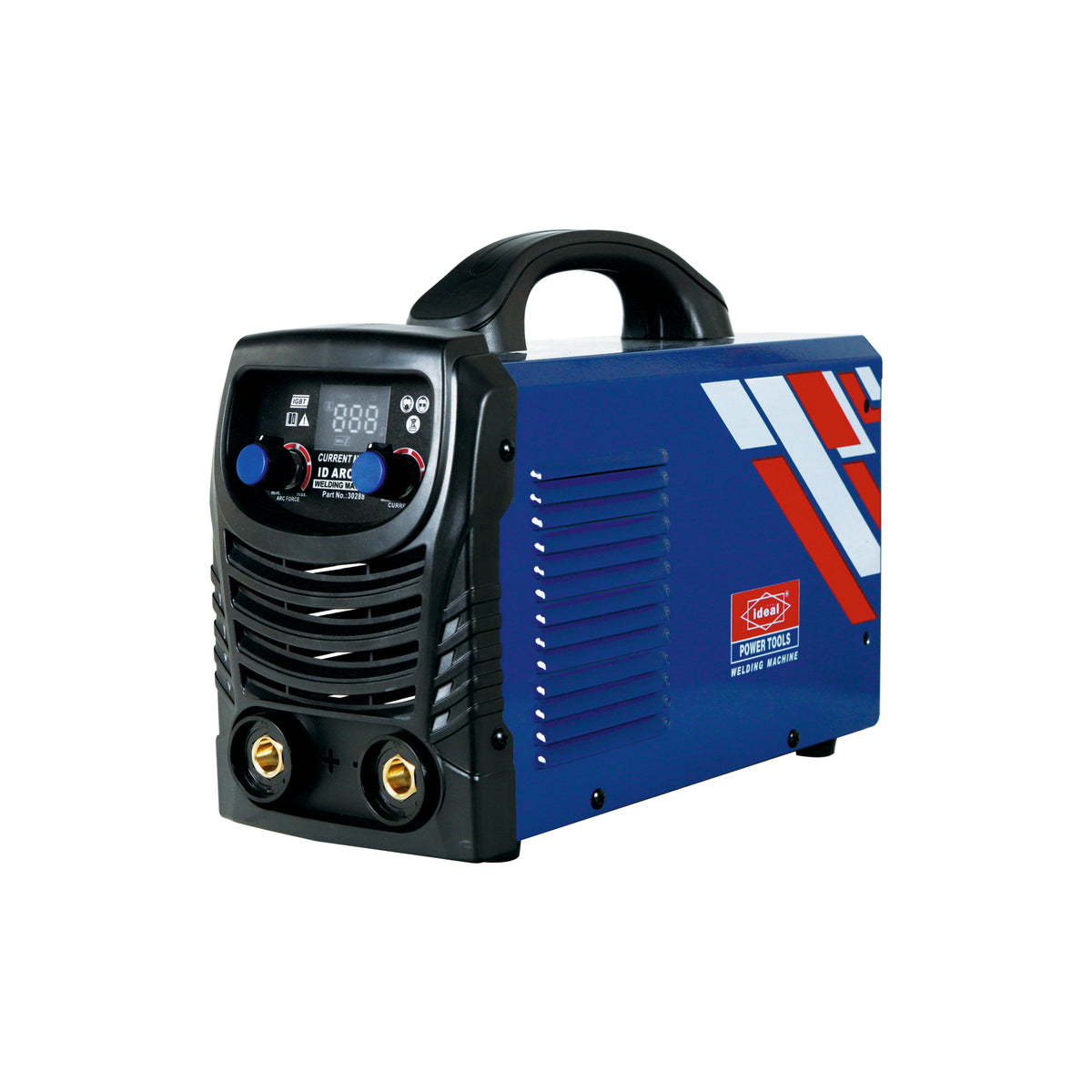

The ID ARC650 Electric Welding Machine is a heavy-duty, single-phase inverter welder designed for demanding metal fabrication, repair, maintenance and workshop applications. Operating on AC 220V power with ±15% voltage tolerance, it provides an adjustable 40–650A welding current range, rapid arc ignition and compatibility with 2.5–4.0 mm electrodes. Advanced inverter technology, anti-stick functionality, forced-air cooling and an IP21S housing help deliver stable, efficient welding performance in professional working environments.
| Key Features | Perfect For |
|---|---|
|
|
- Powerful and adjustable welding output: The ARC650 delivers a broad current range from 40A to 650A, allowing the operator to match the output to the electrode size, material thickness and welding task. Its digital display makes it easier to monitor and adjust the selected current accurately.
- High-efficiency inverter technology: Advanced DC inverter technology is engineered to provide efficient power conversion, responsive current control and a stable arc. This supports cleaner welding performance while placing the machine’s substantial output into a practical professional format.
- Reliable arc starting with anti-stick support: A 60V no-load voltage assists rapid arc ignition, while the integrated anti-stick function helps reduce electrode adhesion. If an electrode begins to stick to the workpiece, it can be detached more easily, reducing interruptions and helping protect the electrode.
- Wide electrode compatibility: Designed for electrodes ranging from 2.5 mm to 4.0 mm in diameter, the machine is suitable for varied repair, fabrication and structural welding jobs. Operators should select the appropriate electrode type, diameter and current according to the base material and application.
- Single-phase operation with voltage tolerance: The machine operates from a single-phase AC 220V supply at 50/60Hz and accommodates input-voltage variation of ±15%. Its rated input capacity is 25.2 kVA, so the connected electrical circuit, plug point, cable and protective device must be appropriately rated.
- Heavy-duty thermal management: The forced-wind cooling system circulates air through the machine to manage internal temperatures and protect important components during demanding workloads. The specified rated duty cycle is 50%, and adequate cooling intervals should be observed to prevent thermal overload.
- Double-insulated electrical design: Class F insulation and a double-insulated construction help isolate internal electrical parts from the machine’s outer casing. These protections support safer professional operation when the machine is used, connected and maintained correctly.
- Rugged IP21S protective housing: The IP21S-rated enclosure helps shield internal components from solid objects larger than 12.5 mm and vertically falling water droplets under the rating’s specified test conditions. The machine is intended for suitable sheltered working environments and should not be treated as waterproof.
- Ready-to-use accessory package: The ID ARC650 is supplied with a Type G British three-pin plug for compatible power arrangements, together with essential welding accessories for setup and operation.
The package includes the ID ARC650 welding machine, one guide book, one 1.2-metre earth clamp, one 1.8-metre electrode holder, one welding mask and one brush. The machine is supported by a CE machine test certificate and manufacture under an ISO 9001:2015 Quality Management System.
General Purchase & Comparison Queries
What type of welding work is the ID ARC650 suitable for?
The ID ARC650 inverter welding machine is designed for demanding stick-welding work, including workshop fabrication, structural repairs, construction, maintenance and machinery repair. Its 40–650A adjustable current range gives the operator flexibility for different materials, electrode sizes and job requirements.
What makes this machine suitable for professional use?
Professional-use features include advanced inverter technology, digital current adjustment, anti-stick assistance, forced-wind cooling, Class F insulation and a rugged IP21S housing. Its broad output range and compatibility with 2.5–4.0 mm electrodes make it suitable for varied fabrication and repair tasks.
Which accessories are supplied with the welding machine?
The package contains the ARC650 welding machine, guide book, 1.2-metre earth clamp, 1.8-metre electrode holder, welding mask and brush. This provides the essential connection and basic operating accessories, although application-specific electrodes and any additional personal protective equipment must be selected separately.
Product-Specific and Usage Queries
What power supply does the ID ARC650 require?
The machine is rated for a single-phase AC 220V supply with ±15% voltage tolerance and a frequency of 50/60Hz. It has a rated input capacity of 25.2 kVA and comes with a Type G British three-pin plug. Before use, a qualified electrician should verify that the electrical outlet, circuit protection and wiring can safely support the machine’s input requirements.
Which electrode sizes can be used with this welder?
The ARC650 supports welding electrodes from 2.5 mm to 4.0 mm in diameter. The correct electrode type, electrode size and current setting depend on the material composition, workpiece thickness, joint design and required weld characteristics.
What does the 50% rated duty cycle mean?
A 50% rated duty cycle means the machine is designed to weld for half of a defined duty-cycle period under the specified test conditions, with the remaining time used for cooling. Actual operating time can vary according to output current, ambient temperature, ventilation and working conditions, so the machine’s thermal indicator and guide book should always be followed.
Problem/Solution-Oriented Queries
What should I do if the welding electrode sticks to the workpiece?
The machine’s anti-stick function is designed to make a stuck electrode easier to detach. If sticking continues, check that the current is appropriate for the electrode diameter, confirm that the earth clamp has a clean and secure connection, and inspect the electrode and work surface for moisture, rust, paint or contamination.
Why does the machine become hot or stop during welding?
This may occur when the rated duty cycle has been exceeded, airflow is restricted or the surrounding temperature is high. Stop welding, keep the machine powered as directed in the guide book so the cooling fan can operate, and allow it to cool. Make sure the ventilation openings are clean and unobstructed before restarting.
How can I improve an unstable arc or difficult arc start?
Confirm that the current setting matches the electrode size, the earth clamp is attached firmly to clean bare metal, and all cable connections are secure. Also inspect the electrode for dampness or damage and verify that the input voltage remains within the machine’s specified AC 220V ±15% operating range.
Machine (1 Pcs), Guide Book (1 Pcs), 1.2m Earth Clamp (1 Pcs), 1.8m Electrode Holder (1 Pcs), Welding Mask (1 Pcs), Brush (1 Pcs)
