ID AOS66 PNEUMATIC ORBITAL SANDER MACHINE [AIR TOOL] [Bosch Type] - 26853
Chat with us
Choose options
Professional Pneumatic Orbital Sanding — Precision, Power, and Endurance in Every Pass

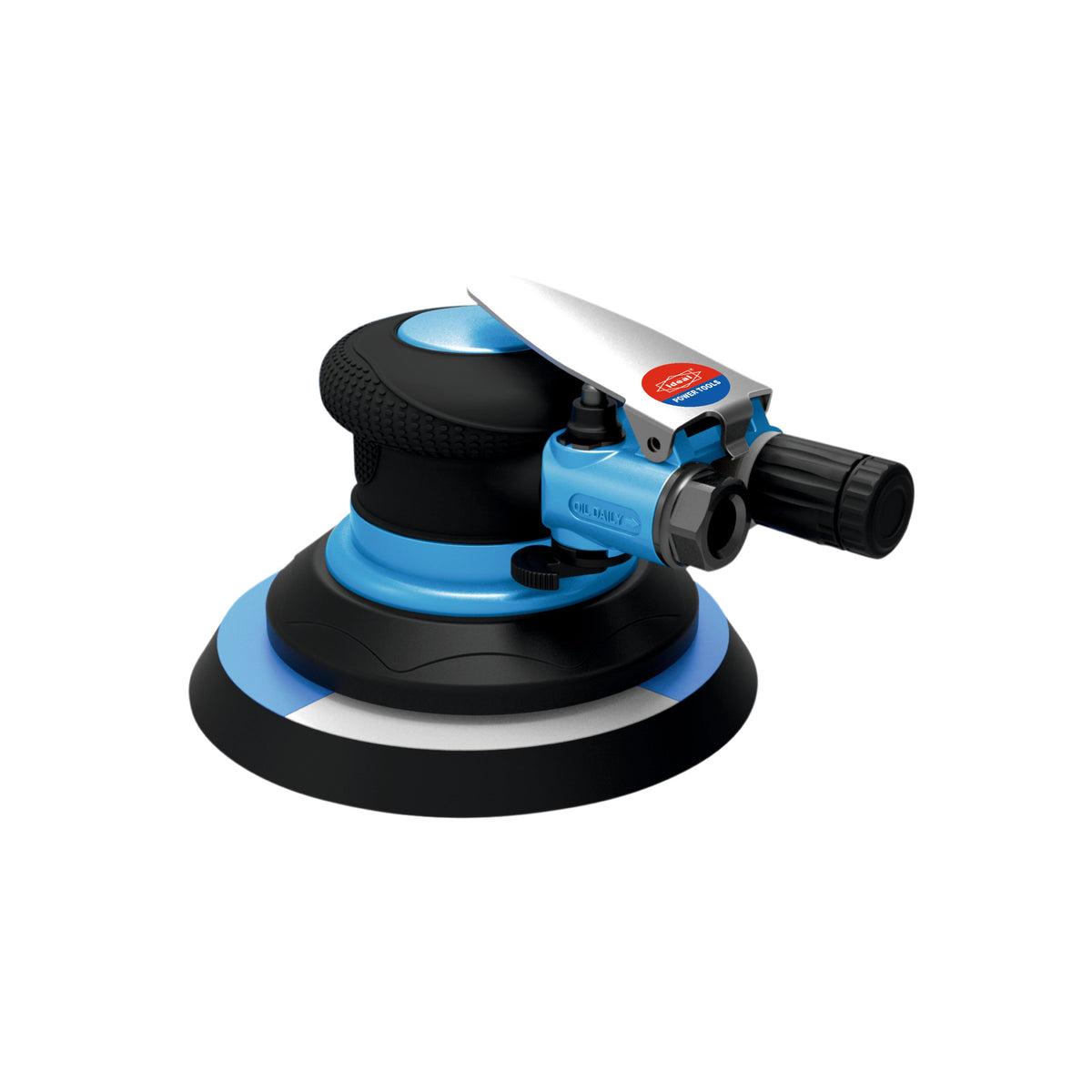

The ID AOS66 Pneumatic Orbital Sander is a professional-grade air-powered sanding machine engineered for high-speed surface finishing, wood smoothing, metal polishing, and automotive bodywork preparation. Driven by compressed air at up to 10,500 RPM with a 150mm sanding pad, this pneumatic orbital sander delivers consistent, swirl-free results across demanding industrial and workshop applications.
| Key Features | Perfect For |
|
|
- 10,500 RPM Rated Speed for Rapid Surface Removal: The AOS66 operates at a rated free speed of 10,500 RPM, delivering aggressive yet controlled material removal. The high-speed orbital motion eliminates deep scratches, paint layers, and surface irregularities efficiently, making it the go-to tool for professionals who cannot afford slow results on the workshop floor.
- 150mm Orbital Sanding Pad for Maximum Coverage: The 150mm (6-inch) sanding pad provides a wide sanding footprint that covers large surface areas in fewer strokes. Whether working on automotive body panels, wooden tabletops, or metal sheets, the generous pad size dramatically reduces total sanding time compared to smaller-diameter alternatives.
- Low Air Consumption at 3 CFM / 84 L/min: Engineered for efficiency, the AOS66 consumes only 3 CFM (84 litres per minute) of compressed air at a maximum operating pressure of 90 PSI (6.3 kg/cm²). This low consumption rate means the tool runs reliably on most standard workshop compressors without causing pressure drops or compressor overload during continuous operation.
- Lightweight Ergonomic Body at 0.95 kg: Weighing just 0.95 kg with a compact 170mm body length, the AOS66 is designed for prolonged use without operator fatigue. The slim, balanced profile allows precise control over sanding pressure and direction, which is critical when working on contoured or delicate surfaces that require a consistent, even finish.
- Heavy-Duty Pneumatic Motor Built for Longevity: Powered by a robust pneumatic motor with a 1/4" air inlet, the AOS66 is constructed to withstand the rigours of daily professional use. The air-powered design eliminates the heat build-up and motor burnout risks associated with electric sanders, ensuring a longer service life and lower maintenance requirements in high-throughput workshop environments.
- Complete Ready-to-Use Kit Included: The AOS66 ships as a complete package including the sander machine, a guide book for setup and operation, a wrench for pad changes and maintenance, and a connector for immediate air line attachment — everything needed to get started straight out of the box without additional purchases.
General Purchase & Comparison Queries
What makes the ID AOS66 different from an electric orbital sander?
The ID AOS66 is a pneumatic (air-powered) orbital sander, which means it runs on compressed air rather than electricity. This gives it several advantages over electric models: it generates no heat build-up in the motor, has a longer service life with lower maintenance requirements, and is significantly lighter at just 0.95 kg. For professional workshops and automotive bodyshops where tools are used continuously throughout the day, pneumatic sanders are the preferred choice for reliability and durability.
What compressor do I need to run the AOS66?
The AOS66 requires a compressed air supply capable of delivering a maximum pressure of 90 PSI (6.3 kg/cm²) with an average air consumption of 3 CFM (84 L/min). This is a relatively low consumption rate, meaning most standard workshop compressors with a tank capacity of 50 litres or more will run this tool comfortably. Ensure your compressor has a 1/4" BSP outlet or use the included connector to match your air line fitting.
Is the AOS66 suitable for both professional and DIY use?
Yes. While the AOS66 is built to heavy-duty professional standards for use in automotive workshops, furniture factories, and fabrication environments, its lightweight 0.95 kg body and straightforward 1/4" air connection make it equally accessible for serious DIY users. If you already own or have access to a workshop compressor, the AOS66 is a cost-effective upgrade over consumer-grade electric sanders for any surface finishing task.
Product-Specific and Usage Queries
What sanding disc size does the AOS66 use?
The AOS66 uses a 150mm (6-inch) round sanding pad, which is one of the most widely available sizes in the market. Hook-and-loop (Velcro-backed) sanding discs in this diameter are readily available in a full range of grits — from coarse 40-grit for heavy material removal to ultra-fine 400-grit for final finishing passes. Always ensure the discs you purchase are compatible with 150mm orbital sanders and feature a hook-and-loop backing for secure pad attachment.
Can the AOS66 be used for wet sanding or with water?
The AOS66 is designed for dry sanding applications. As a pneumatic tool, it is not rated or sealed for wet sanding or use in environments where water may enter the air motor. For automotive wet sanding, a dedicated pneumatic wet sander with appropriate sealing is recommended. Using the AOS66 with water or wet abrasives may cause internal corrosion and will void any applicable warranty.
How do I change the sanding pad or disc on the AOS66?
The AOS66 includes a wrench in the box specifically for pad changes and maintenance. To change the sanding disc, simply peel off the used hook-and-loop disc from the pad surface and press a new disc firmly into place — no tools required for disc changes. If the backing pad itself needs replacement, use the included wrench to remove the pad from the spindle. Always disconnect the air supply before performing any maintenance or pad changes.
Problem/Solution-Oriented Queries
The sander is not reaching full speed — what should I check?
If the AOS66 is running below its rated 10,500 RPM, the most common causes are insufficient air supply pressure or flow. First, verify that your compressor is delivering at least 90 PSI at the tool inlet and that the air line is not kinked or undersized. Second, check that the air filter/regulator on your compressor is not clogged and is set to the correct pressure. Finally, ensure the 1/4" connector is fully seated and not leaking air. If the issue persists after checking these points, the air motor vanes may require lubrication — add a few drops of pneumatic tool oil into the air inlet before operation.
The sanding pad vibrates excessively — is this normal?
Some vibration is inherent to all orbital sanders due to the eccentric pad motion. However, excessive or unusual vibration typically indicates one of the following: the sanding disc is not centred or fully attached to the pad — re-press the disc firmly to ensure full hook-and-loop contact; the backing pad is worn or damaged — inspect the pad for tears or deformation and replace if necessary; or the air pressure is too high, causing the motor to over-speed. Reduce the inlet pressure to the recommended 90 PSI maximum and retest.
How do I maintain the AOS66 to extend its service life?
Regular maintenance is straightforward. Before each use, add 2-3 drops of pneumatic tool oil into the 1/4" air inlet to lubricate the internal vanes and motor components — this is the single most important maintenance step for any air tool. Ensure your air supply passes through a moisture trap/filter to prevent water contamination inside the motor. After use, store the tool in a dry environment and periodically inspect the sanding pad for wear. The included guide book contains full maintenance intervals and procedures specific to the AOS66.
Machine (1 Pcs), Guide Book (1 Pcs), Wrench (1 Pcs), Connector (1 Pcs)
