ID AOS55 PNEUMATIC ORBITAL SANDER MACHINE [AIR TOOL] - 20407
Chat with us
Choose options
Professional Pneumatic Sanding Power — Precision Finish, Every Time

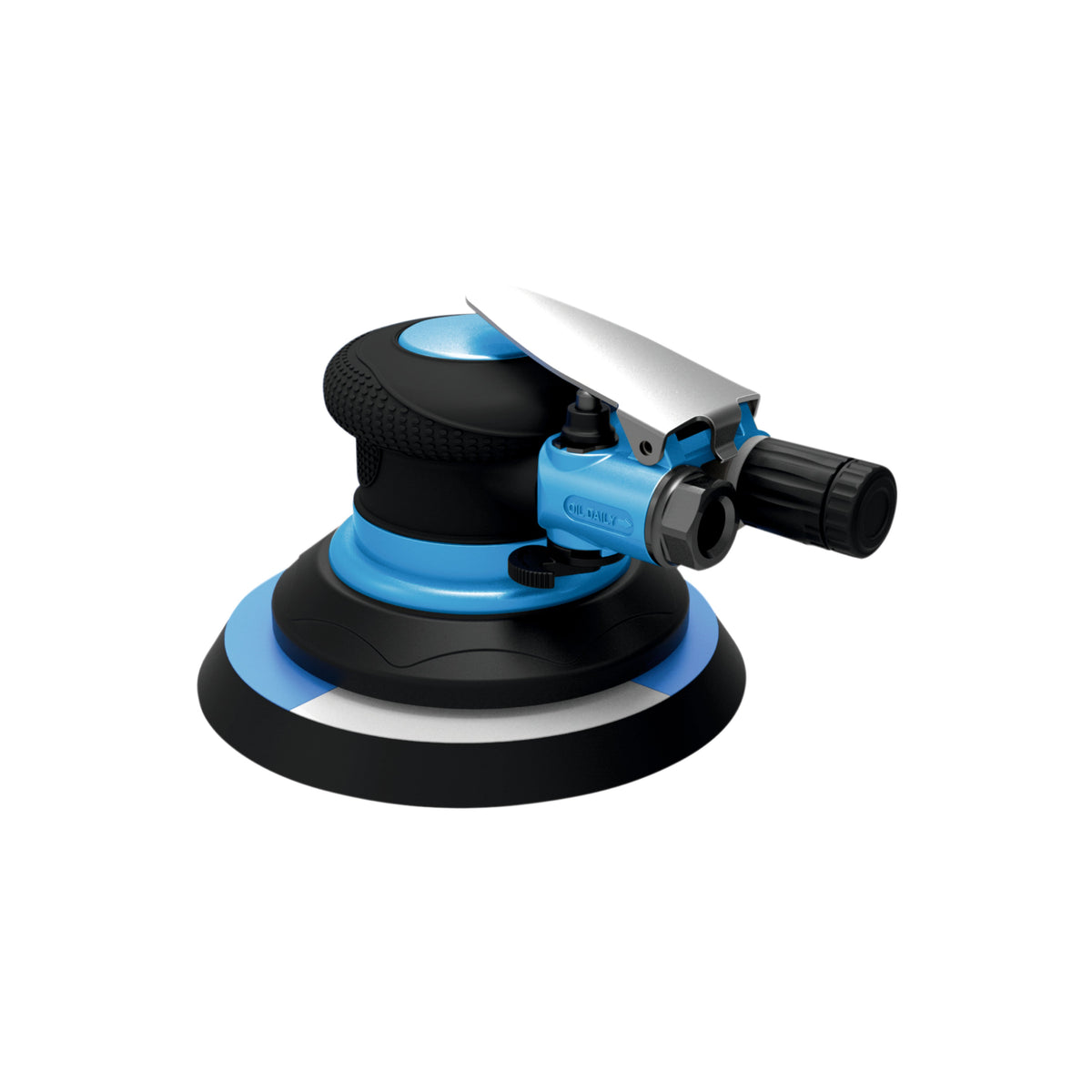

The ID AOS55 Pneumatic Orbital Sander is a professional-grade air-powered sanding machine engineered for high-speed surface finishing, wood sanding, and metal polishing. Driven by a precision pneumatic motor operating at 10,500 RPM with a 127mm sanding pad, this orbital sander air tool delivers consistent, swirl-free results across demanding industrial and workshop applications. Lightweight at just 0.92 kg and compact at 158mm in length, it offers exceptional ergonomic control for extended use without fatigue.
| Key Features | Perfect For |
|
|
- 10,500 RPM Orbital Speed for Rapid Surface Preparation: The AOS55 operates at a rated speed of 10,500 RPM, delivering aggressive yet controlled material removal. The orbital pad motion minimises swirl marks and cross-grain scratches, producing a consistently smooth finish whether working on bare timber, primed metal, or composite surfaces — significantly reducing the time needed between sanding stages.
- 127mm Sanding Pad with Broad Coverage: The 127mm (5-inch) round sanding pad provides a generous contact area, allowing operators to cover large surface areas efficiently in fewer passes. Compatible with standard hook-and-loop sanding discs across a wide range of grits, making it versatile for both coarse stock removal and fine finishing work.
- Ergonomic Lightweight Design at 0.92 kg: Weighing only 0.92 kg and measuring just 158mm in length, the AOS55 is engineered for prolonged use without operator fatigue. The compact, balanced body fits naturally in the hand, providing precise control during detailed finishing tasks on vertical surfaces, overhead panels, and tight contours.
- Standard 1/4" Air Inlet at 90 PSI Maximum Pressure: The 1/4-inch NPT air inlet connects directly to standard workshop air lines and quick-connect fittings without adapters. Operating at a maximum pressure of 90 PSI (6.3 kg/cm²), it is compatible with the majority of portable and stationary air compressors found in professional workshops, body shops, and manufacturing facilities.
- Low Air Consumption for Efficient Compressor Use: With an average air consumption of just 3 CFM (84 L/min), the AOS55 places minimal demand on your compressor, allowing it to be used alongside other pneumatic tools without overloading the system. This efficiency makes it ideal for continuous production environments where multiple air tools operate simultaneously.
- 90-Degree Angle Head for Versatile Access: The 90° angle configuration positions the sanding pad perpendicular to the tool body, enabling comfortable access to flat panels, tabletops, and floor surfaces. This geometry ensures the operator maintains a natural wrist position, reducing strain during extended sanding sessions and improving overall finish consistency.
The AOS55 is supplied complete with the machine, a guide book, a wrench for disc changes, and a connector for immediate air line attachment — everything needed to get started straight out of the box. It carries the CB (Comprehensive Machine Test) certification, verifying compliance with international safety and performance standards, and the GS (Geprüfte Sicherheit) mark, a rigorous German safety certification that confirms the tool has been independently tested and meets the highest European safety requirements for professional power tools.
General Purchase & Comparison Queries
What makes the AOS55 different from an electric orbital sander?
The ID AOS55 is a pneumatic (air-powered) orbital sander, which means it runs entirely on compressed air rather than electricity. This gives it a significant advantage in terms of power-to-weight ratio — at just 0.92 kg, it delivers 10,500 RPM without the added bulk of an electric motor. Pneumatic sanders also generate less heat during extended use, have fewer moving parts to wear out, and are inherently safer in environments where electrical hazards are a concern, such as automotive body shops and wet or dusty workshops.
What air compressor do I need to run the AOS55?
The AOS55 requires a compressor capable of supplying a maximum pressure of 90 PSI (6.3 kg/cm²) and a sustained output of at least 3 CFM (84 L/min). Most standard workshop compressors with a tank capacity of 24 litres or more will comfortably run this tool. The 1/4-inch air inlet is compatible with standard quick-connect fittings, so no special adapters are typically required. For continuous production use, a larger compressor with a higher CFM rating is recommended to maintain consistent pressure.
Is the AOS55 suitable for both professional and DIY use?
Yes. While the AOS55 is built to professional industrial standards — evidenced by its CB and GS safety certifications — its lightweight design and straightforward operation make it equally accessible for serious DIY users and hobbyists. Whether you are finishing furniture in a home workshop or preparing panels in a commercial body shop, the AOS55 delivers consistent, professional-quality results. The included guide book and connector ensure you can get started immediately without additional purchases.
Product-Specific and Usage Queries
What size sanding discs does the AOS55 use?
The AOS55 uses 127mm (5-inch) round sanding discs. It is compatible with standard hook-and-loop (Velcro-type) sanding discs, which are widely available in a full range of grits — from coarse (40–80 grit) for aggressive stock removal to fine (180–400 grit) for finishing and pre-paint preparation. Always ensure the disc diameter matches the 127mm pad size for safe and effective operation.
Can the AOS55 be used for metal polishing and automotive work?
Absolutely. The 10,500 RPM orbital action and 90° angle head make the AOS55 well-suited for automotive bodywork, metal deburring, and surface preparation prior to painting or coating. The orbital pad motion prevents the deep circular scratches associated with rotary grinders, making it ideal for achieving a smooth, paint-ready surface on steel, aluminium, and body filler. Use progressively finer grits to achieve the desired surface quality before applying primer or topcoat.
What is the operating angle of the AOS55 and how does it affect use?
The AOS55 features a 90-degree angle head, meaning the sanding pad sits perpendicular to the tool body. This configuration is ideal for working on flat horizontal surfaces such as tabletops, floors, panels, and workbenches, as it allows the operator to apply even downward pressure across the full pad surface. The ergonomic grip angle also reduces wrist strain during prolonged sanding sessions, making it comfortable for extended professional use.
Problem/Solution-Oriented Queries
The sander is losing speed during use — what could be causing this?
A drop in speed during operation is most commonly caused by insufficient air supply. Check that your compressor is maintaining at least 90 PSI at the tool inlet and that the air line diameter is adequate to deliver the required 3 CFM (84 L/min). Long or narrow air hoses can cause pressure drop — use the shortest, widest-bore hose practical for your setup. Also check that the 1/4-inch connector is fully seated and free of debris. If the issue persists, inspect the air inlet filter (if fitted) for blockages and ensure the tool is lubricated with a few drops of pneumatic tool oil before each use session.
The sanding disc keeps detaching during operation — how do I fix this?
Disc detachment is typically caused by a worn or contaminated hook-and-loop pad surface. Inspect the 127mm backing pad for embedded abrasive particles, dust, or oil contamination, which reduce the grip of the Velcro interface. Clean the pad with a stiff brush or replace it if the hooks are flattened or worn. Ensure you are using genuine 127mm hook-and-loop discs — undersized or non-standard discs may not seat correctly. The included wrench can be used to secure the pad assembly if any mechanical looseness is detected.
How do I maintain the AOS55 to extend its service life?
Regular maintenance is straightforward and essential for long tool life. Before each use, add 2–3 drops of pneumatic tool oil directly into the 1/4-inch air inlet to lubricate the internal motor vanes. After use, disconnect the air supply and store the tool in a clean, dry environment. Periodically inspect the air inlet connector and hose fittings for wear or leaks. Use the included wrench to check that the sanding pad is securely fastened. Avoid operating the tool above the 90 PSI maximum pressure rating, as over-pressurisation accelerates internal wear. Following these steps will ensure consistent 10,500 RPM performance and a long service life.
Machine (1 Pcs), Guide Book (1 Pcs), Wrench (1 Pcs), Connector (1 Pcs)
