Professional-Grade Power. Precision-Engineered for the Toughest Jobs.

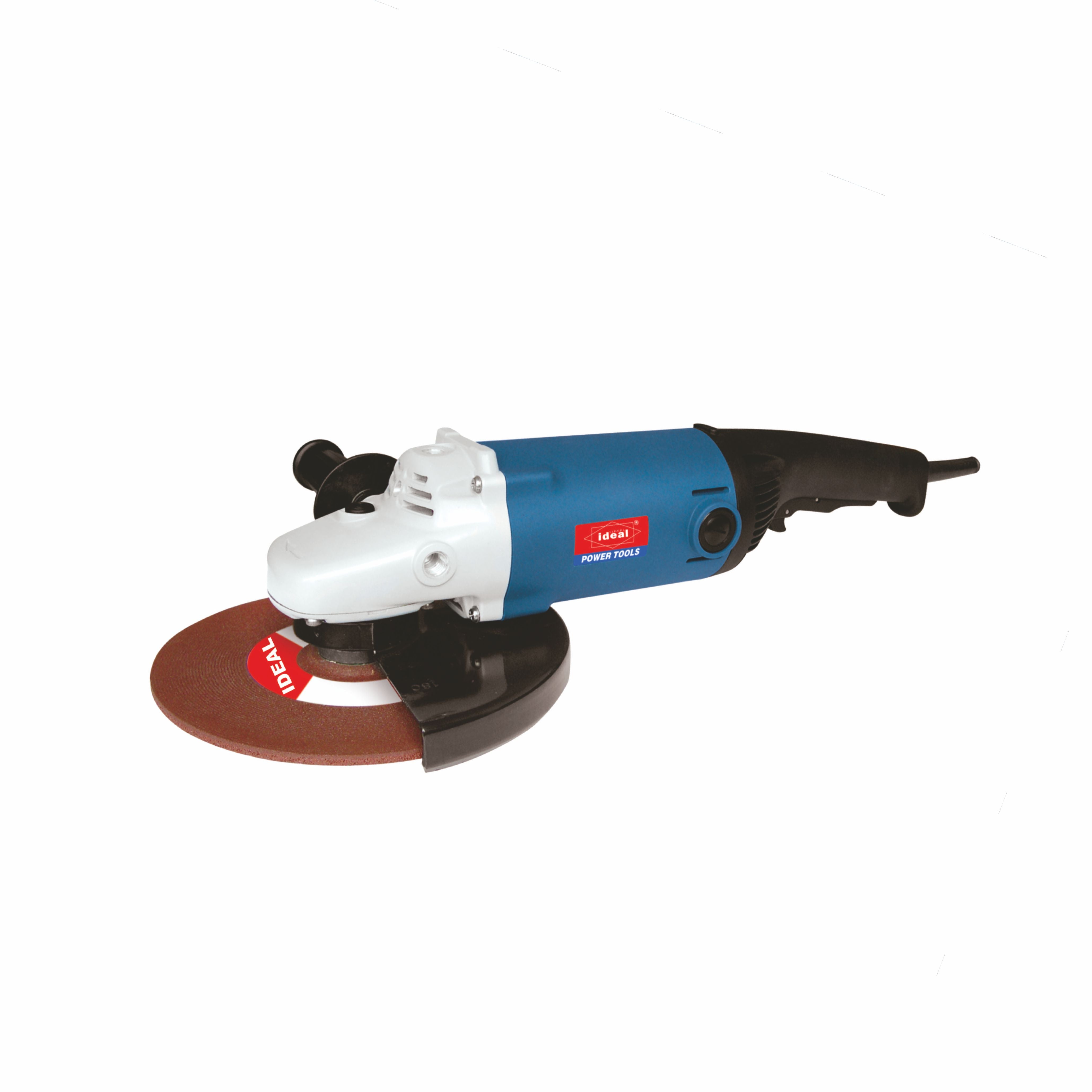

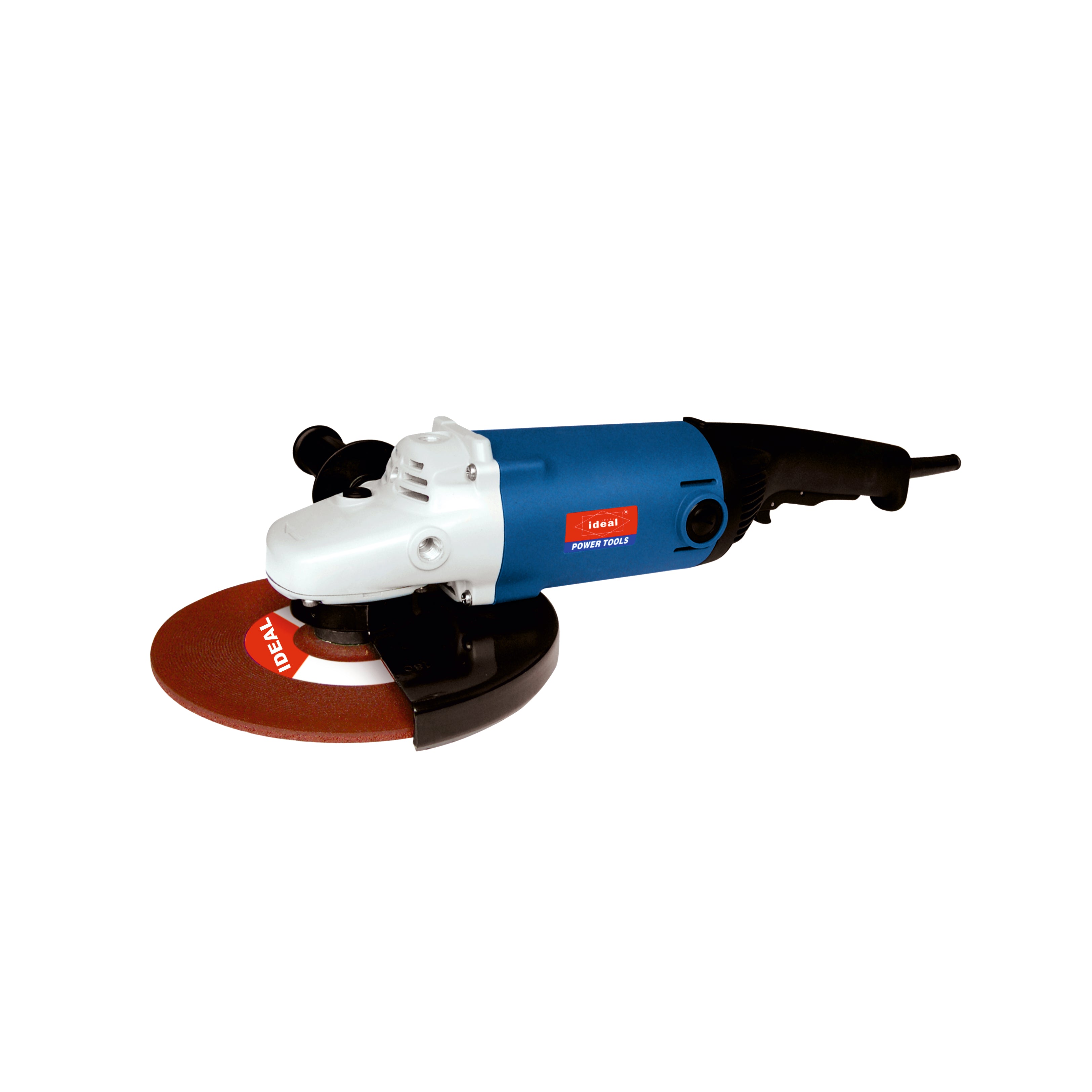

The ID AGH230 9" Electric Angle Grinder Machine is a 2200W heavy-duty angle grinder engineered for demanding professional applications. Designed in the Hitachi type form factor and powered by 220-240V AC, this 230mm angle grinder delivers a no-load speed of 6600 RPM with an M14 spindle thread, making it the go-to tool for metalworking, concrete grinding, tile cutting, and surface preparation. Fitted with a Type G British 3-Pin plug, it is ready for use across GCC and UK-standard power outlets straight out of the box.

Key Features	Perfect For
2200W heavy-duty motor for sustained high-load performance Double insulation for enhanced electrical safety Spindle lock for fast, single-handed disc changes Auto-stop carbon brush set for motor protection Adjustable wheel guard for versatile disc positioning	Metal cutting, grinding, and deburring Concrete and masonry surface preparation Tile and stone cutting on construction sites Fabrication workshops and heavy maintenance DIY renovation and structural metalwork

2200W Rated Power Input at 220-240V AC / 50-60Hz: The AGH230 draws a full 2200 watts of rated power, delivering consistent torque under load across both 50Hz and 60Hz grid frequencies. Whether you are cutting through thick steel plate or grinding down weld seams, the motor sustains performance without thermal throttling, making it suitable for extended professional use in workshops and on-site environments.
230mm Maximum Wheel Diameter with M14 Spindle Thread: The 230mm (9-inch) disc capacity and industry-standard M14 spindle thread give you access to the widest range of compatible grinding, cutting, and flap discs on the market. Swap between abrasive wheels, diamond blades, and wire cup brushes with ease, covering everything from aggressive material removal to fine surface finishing.
6600 RPM No-Load Speed for Fast, Efficient Material Removal: At 6600 revolutions per minute, the AGH230 generates the peripheral disc speed needed to cut through reinforced concrete, structural steel, and hard stone efficiently. The high RPM ensures clean, fast cuts with minimal disc wear, reducing consumable costs over time in high-volume applications.
Double Insulation for Maximum Electrical Safety: The double-insulated construction ensures that all live electrical components are fully isolated from the outer housing. Even in the event of an internal fault, the outer casing remains safe to touch, providing critical protection for operators working in damp, dusty, or electrically hazardous environments — a standard demanded by professional tradespeople worldwide.
Spindle Lock and Auto-Stop Carbon Brush Set for Operational Efficiency: The spindle lock mechanism immobilizes the output shaft with a single button press, allowing disc changes without the need for a second hand or additional tools — a significant time-saver on busy job sites. The included auto-stop carbon brush set automatically cuts motor power when the brushes reach end-of-life, preventing armature damage and extending the overall service life of the machine. The package also includes a side handle, a wrench, a wheel guard, an auto-stop carbon brush set, and guide book, providing everything needed for immediate, safe operation. This machine holds a CB (Comprehensive Machine Test) certificate, confirming it has been independently tested and verified to meet international safety and performance standards.
Net Weight of 5 kg for a Balanced Power-to-Weight Ratio: At 5 kilograms, the AGH230 strikes a practical balance between the structural rigidity required for a 2200W machine and the manageability needed for overhead or extended-duration work. The auxiliary handle provides a secure two-handed grip, improving operator control and reducing fatigue during prolonged grinding or cutting sessions.

General Purchase & Comparison Queries

What makes the AGH230 different from a standard 9-inch angle grinder?

The ID AGH230 is built to a Hitachi-type specification, meaning its dimensions, handle placement, and disc guard design follow the same ergonomic layout trusted by professional tradespeople globally. It combines a 2200W motor, double insulation, spindle lock, and an auto-stop carbon brush set in a single package — features typically found separately on higher-priced machines. It also ships with a CB-certified safety rating and a Type G plug, making it immediately compatible with GCC and UK power infrastructure without any adaptor.

Is this angle grinder suitable for professional or trade use, or is it more of a DIY tool?

The AGH230 is firmly positioned as a professional and trade-grade tool. Its 2200W rated power input, 5 kg robust build, and 6600 RPM no-load speed are specifications associated with heavy-duty site work — not light DIY tasks. The inclusion of an auto-stop carbon brush set further signals a machine designed for extended operational cycles where motor longevity matters. It is equally capable in a fabrication workshop, on a construction site, or in a maintenance facility.

Does this grinder come ready to use, or do I need to purchase accessories separately?

The AGH230 ships as a complete, ready-to-use package. In the box you will find the machine itself, an auxiliary handle, wheel guard, wrench, auto-stop carbon brush set (1 pair), and a guide book — everything required for safe assembly and immediate operation. You will only need to source your preferred 230mm grinding or cutting disc separately, as disc selection depends on the specific material and task at hand.

Product-Specific and Usage Queries

What disc size and spindle thread does the AGH230 use?

The AGH230 accepts discs up to 230mm (9 inches) in diameter and uses an M14 spindle thread, which is the global industry standard for large angle grinders. This means you have access to a vast range of compatible consumables including grinding wheels, cutting discs, flap discs, wire cup brushes, and diamond blades from virtually any major abrasives brand. Always ensure the disc's rated RPM meets or exceeds the machine's 6600 RPM no-load speed before use.

Can I use this grinder for cutting concrete and masonry as well as metal?

Yes. The AGH230's 2200W motor and 6600 RPM speed make it well-suited for both metalworking and masonry applications. For concrete and stone, pair it with a compatible 230mm diamond cutting blade. For metal cutting and grinding, use the appropriate abrasive cutting or grinding disc rated for the material thickness. The adjustable wheel guard can be repositioned to suit the cutting angle and protect the operator from sparks and debris regardless of the material being worked.

What voltage and plug type does this machine use?

The AGH230 operates on 220-240V AC at 50/60Hz and is fitted with a Type G plug (British 3-Pin). This makes it directly compatible with power outlets in the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman, the UK, and other countries using the BS 1363 standard without requiring a plug adaptor. Always verify your local supply voltage falls within the 220-240V range before connecting the machine.

Problem/Solution-Oriented Queries

The grinder stopped working mid-use. What could be the cause?

The most common cause of a mid-use shutdown on the AGH230 is the auto-stop carbon brush mechanism activating. This is a built-in safety feature: when the carbon brushes wear down to their end-of-life point, the machine automatically cuts power to prevent damage to the armature and commutator. The solution is to replace the carbon brush set — a spare pair is included in the original packaging. If the machine does not restart after a brush replacement, check the power supply, inspect the power cord for damage, and ensure the disc is not jammed against the guard.

The disc is difficult to remove. How do I change it safely?

The AGH230 is equipped with a spindle lock button specifically to simplify disc changes. Press and hold the spindle lock to immobilise the output shaft, then use the included wrench to loosen the locking nut by turning it in the correct direction (note that the nut uses a left-hand thread on most angle grinders — turn clockwise to loosen). Always ensure the machine is unplugged from the power supply before attempting any disc change. Never engage the spindle lock while the disc is spinning.

The machine vibrates excessively during use. Is this normal?

Some vibration is normal for a 2200W, 6600 RPM angle grinder, particularly when working with aggressive grinding discs on hard materials. However, excessive or unusual vibration typically indicates one of the following: a damaged, unbalanced, or incorrectly mounted disc; a disc that is not rated for the machine's RPM; or a worn spindle bearing. First, stop the machine immediately and inspect the disc for cracks, chips, or warping — a damaged disc must be replaced. Ensure the disc is seated flat against the backing flange and the locking nut is fully tightened. If vibration persists after fitting a new disc correctly, the machine should be inspected by a qualified service technician.
