Professional-Grade Power. Built to Outlast the Job.

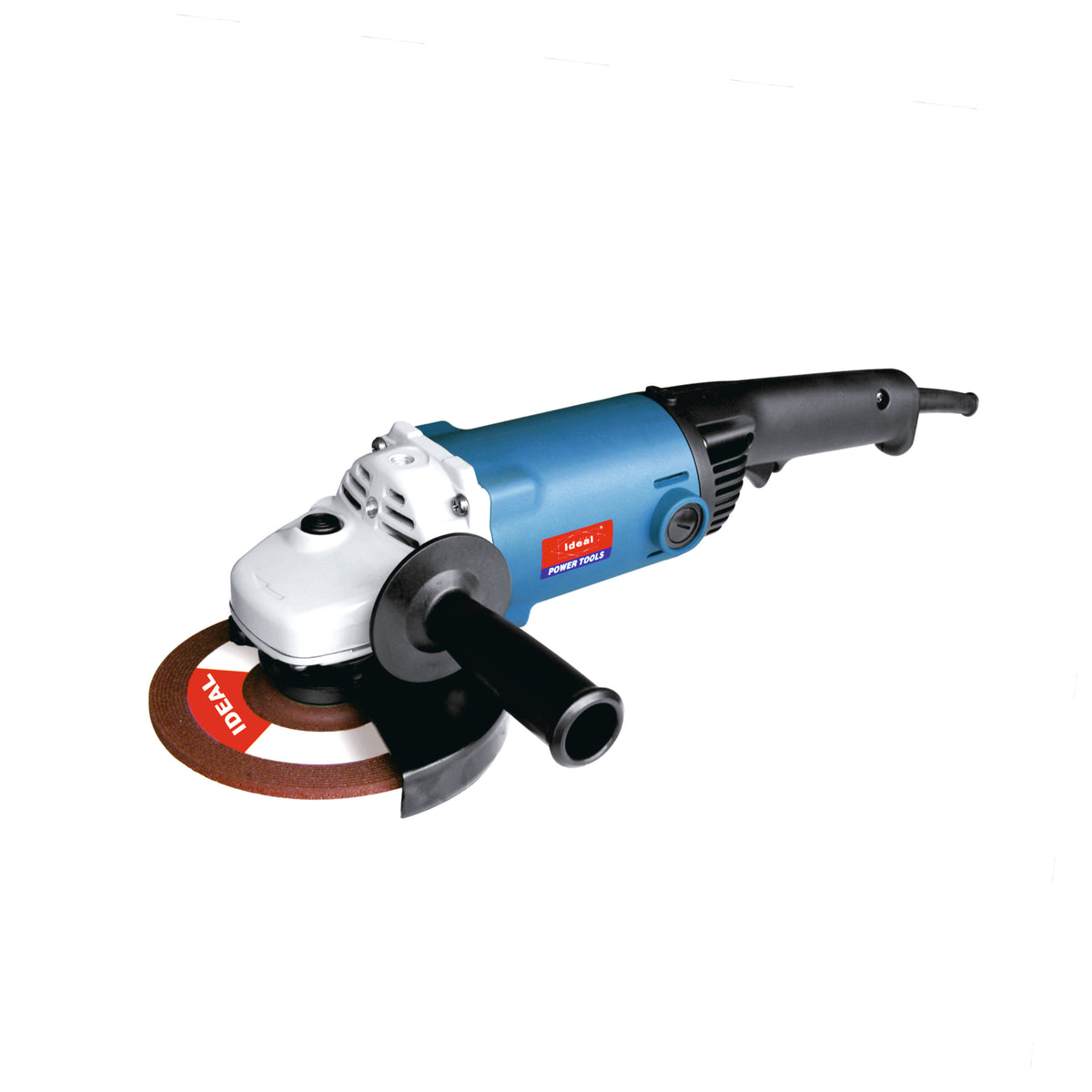

The ID AGH180 7-Inch Electric Angle Grinder is a heavy-duty 2200W power tool engineered for demanding metalworking, grinding, cutting, and surface finishing applications. Running on 220–240V AC with a Type G British 3-Pin plug, it delivers a no-load speed of 8300 RPM and accepts 180mm (7-inch) grinding wheels with an M14 spindle thread — making it a reliable workhorse for construction sites, fabrication workshops, and industrial maintenance environments.
| Key Features | Perfect For |
|
|
- 2200W Rated Power Input at 220–240V / 50–60Hz: The AGH180 draws a full 2200 watts from a standard single-phase supply, delivering consistent torque under load — critical when grinding thick steel plate, cutting reinforced concrete, or removing heavy weld beads where underpowered tools stall and overheat.
- 8300 RPM No-Load Speed with 180mm Wheel Capacity: The high-speed 8300 RPM spindle paired with a maximum 180mm (7-inch) wheel diameter gives you the peripheral velocity needed for rapid stock removal. The M14 spindle thread is the global standard for large-format angle grinders, ensuring broad disc compatibility across brands and disc types — grinding, cutting, flap, and wire cup wheels.
- Double Insulation for Operator Safety: Engineered with a double-insulated construction, the AGH180 ensures that live electrical components are completely separated from the tool's outer housing. This eliminates the risk of electric shock even if internal insulation degrades — a critical safety feature for use on damp construction sites or in environments where grounding cannot be guaranteed.
- Spindle Lock for Fast, Secure Disc Changes: The integrated spindle lock mechanism immobilizes the output shaft with a single button press, allowing the operator to loosen and replace grinding or cutting discs using only the supplied wrench — no need for a second tool or an assistant. This reduces downtime during multi-disc jobs and improves workflow efficiency on site.
- Net Weight 5 kg — Balanced for Extended Use: At 5 kilograms, the AGH180 strikes a balance between the mass needed to dampen vibration during aggressive grinding and the manageability required for overhead or vertical work. The included auxiliary side handle provides a two-handed grip for improved control, reduced operator fatigue, and safer operation across all cutting angles.
- CB-Certified and Auto-Stop Carbon Brush Set Included: The AGH180 holds a CB (Comprehensive Machine Test) certificate, confirming it has been independently tested to international safety standards for electrical safety and performance. The package includes the grinder, a user guide, an auto-stop carbon brush set (which automatically cuts power when brushes wear to their limit, protecting the motor armature), an auxiliary handle, and a disc wrench — everything needed to start work immediately.
General Purchase & Comparison Queries
Is the ID AGH180 suitable for professional or heavy-duty use?
Yes. The AGH180 is rated at 2200W and designed for sustained, professional-grade operation. Its heavy-duty motor, double-insulated construction, and CB-certified safety rating make it appropriate for construction sites, metal fabrication workshops, and industrial maintenance environments where continuous use is required.
What plug type does this grinder use, and is it compatible with UAE/GCC sockets?
The AGH180 comes fitted with a Type G British 3-Pin plug, which is the standard plug type used across the UAE, GCC countries, and the UK. It operates on 220–240V / 50–60Hz, fully compatible with the local mains supply — no adapter or converter is required.
How does the AGH180 compare to a 4.5-inch or 5-inch angle grinder?
The AGH180 uses a 180mm (7-inch) wheel compared to the 115mm (4.5-inch) or 125mm (5-inch) wheels on smaller grinders. This larger disc diameter means a greater cutting depth, wider grinding path, and faster material removal — making it better suited for heavy structural steel, thick concrete slabs, and large weld seams. Smaller grinders are lighter and more manoeuvrable for detail work; the AGH180 is the choice when raw power and coverage matter.
Product-Specific and Usage Queries
What disc size and spindle thread does the AGH180 accept?
The AGH180 accepts grinding and cutting wheels up to 180mm (7 inches) in diameter with an M14 spindle thread. M14 is the international standard for large-format angle grinders, giving you access to a wide range of compatible discs — including grinding wheels, cutting discs, flap discs, and wire cup brushes from most major abrasive brands.
How does the spindle lock work, and why does it matter?
The spindle lock button immobilises the output shaft when pressed, preventing it from rotating while you loosen or tighten the disc retaining nut using the supplied wrench. This allows single-handed disc changes without needing a second person to hold the shaft. It significantly reduces the time spent swapping between grinding and cutting discs during multi-stage jobs on site.
What does the auto-stop carbon brush set do?
The included auto-stop carbon brush set is a motor protection feature. Carbon brushes transfer electrical current to the motor's rotating armature. As they wear down through normal use, the auto-stop design automatically cuts power to the motor before the brushes wear completely through — preventing armature damage and costly motor failure. This extends the service life of the grinder and gives you advance warning that brushes need replacing.
Problem/Solution-Oriented Queries
The grinder stopped working mid-job — what should I check first?
The most common cause of sudden power loss on the AGH180 is worn carbon brushes triggering the auto-stop mechanism. Check the carbon brush holders — if the brushes have reached their wear limit, the auto-stop feature will have cut power to protect the motor. Replace the brushes with the spare set included in the box. Also verify the power supply, plug connection, and that the disc is not jammed against the workpiece causing a thermal overload.
Is it safe to use this grinder in damp or outdoor conditions?
The AGH180's double-insulated construction provides a significant safety margin in environments where perfect grounding cannot be guaranteed, as live electrical parts are fully isolated from the outer casing. However, like all power tools, it should not be used in standing water or heavy rain. For outdoor use, ensure the work area is sheltered, use an RCD (residual current device) on the circuit, and keep the tool and cable away from wet surfaces.
The disc is difficult to remove — how do I loosen it safely?
First, disconnect the grinder from the power supply. Press and hold the spindle lock button to immobilise the shaft, then use the supplied pin wrench to turn the retaining nut counter-clockwise. If the nut is seized due to heat or over-tightening, apply a small amount of penetrating oil to the thread and allow it to soak before attempting again. Never use improvised tools on the spindle — always use the correct wrench to avoid damaging the nut or disc flange.
Machine (1 Pcs), Guide Book (1 Pcs), A/B Washer (1 Set), Auto-stop Carbon Set (1 Pair), Side Handle (1 Pcs), Wheel Guard (1 Pcs), Lock Nut Wrench (1 Pcs)
