ID ADG88 PNEUMATIC DIE GRINDER MACHINE [AIR TOOL] - 20406
Chat with us
Choose options
Professional Precision in Every Grind — Built for the Toughest Industrial Applications

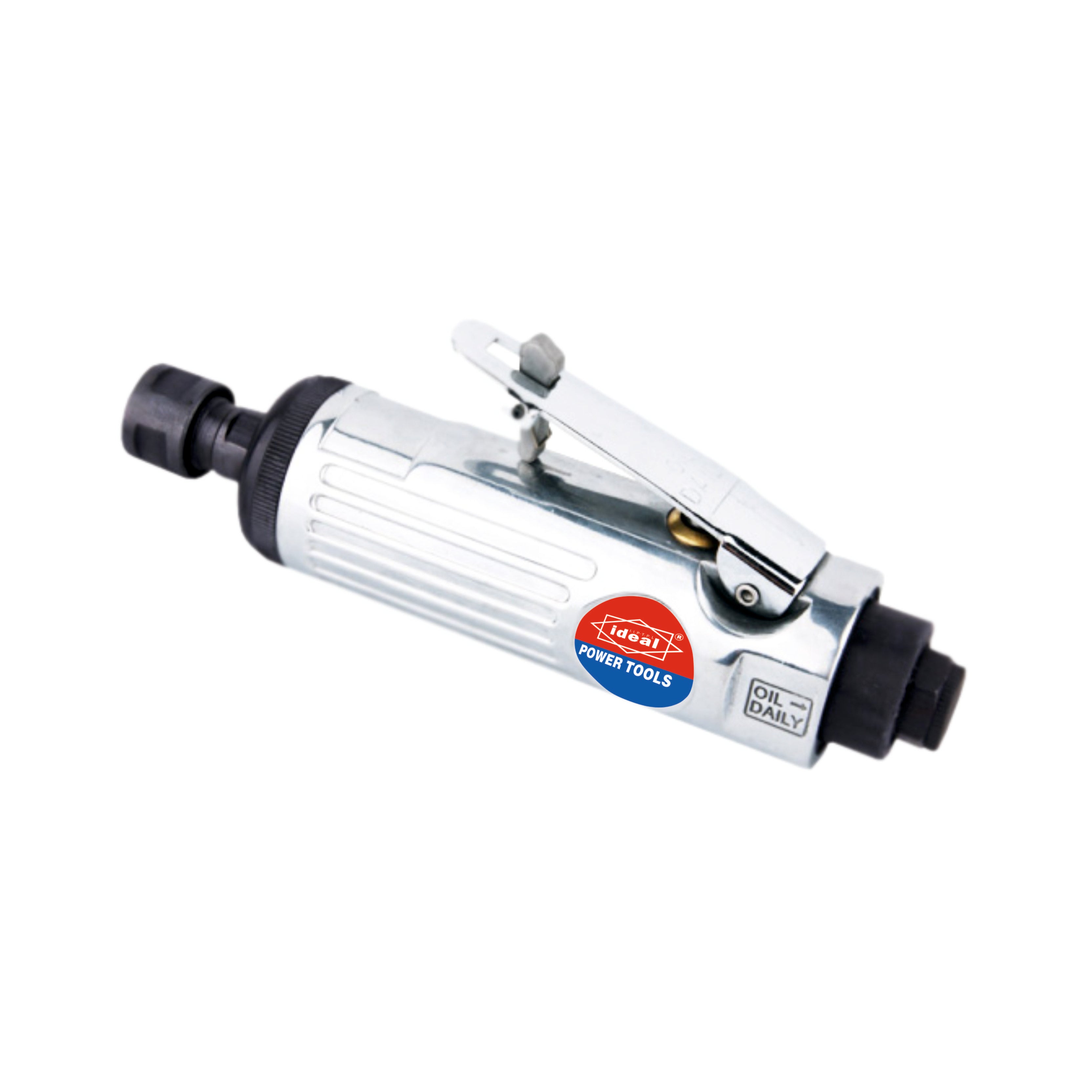

The ID ADG88 Pneumatic Die Grinder is a professional-grade air-powered die grinder machine engineered for precision metalworking, deburring, chamfering, and surface finishing in demanding industrial environments. Weighing just 0.69 kg and running at a powerful 22,000 RPM, this pneumatic air tool delivers exceptional speed and control in a compact, ergonomic body, making it the go-to choice for automotive technicians, aerospace engineers, and fabrication professionals who demand reliability and accuracy in tight spaces.
| Key Features | Perfect For |
|
|
- 22,000 RPM Pneumatic Motor: The ADG88 operates at a rated speed of 22,000 RPM, delivering the high rotational force needed to cut through metal, smooth weld seams, and remove burrs with speed and consistency. The pneumatic drive eliminates motor heat build-up, allowing for extended continuous use without performance degradation — a critical advantage over electric alternatives in production environments.
- Lightweight 0.69 kg Ergonomic Design: At just 0.69 kg and 173 mm in length, this die grinder is engineered for operator comfort and maneuverability. The slim, balanced body reduces hand fatigue during prolonged grinding sessions and allows precise access to tight corners, recesses, and internal cavities that larger tools simply cannot reach.
- 6.3 mm Max Collet Capacity: The 6.3 mm collet accepts a broad range of standard grinding bits, carbide burrs, mounted points, and rotary files — giving professionals the flexibility to switch between deburring, polishing, engraving, and cutting tasks without changing tools. The included spanner set and collet make bit changes fast and secure.
- 90 PSI / 6.3 KG/CM² Operating Pressure with 4 CFM Air Consumption: Designed to run efficiently at 90 PSI maximum pressure with an average air consumption of 4 CFM (113 L/min), the ADG88 is compatible with most standard workshop compressors. The 1/4" air inlet ensures a secure, leak-free connection to standard pneumatic hose fittings, maintaining consistent airflow and stable RPM under load.
- Industrial-Grade Build for Metalworking, Automotive & Aerospace: Constructed for professional-grade durability, the ADG88 handles the rigours of daily use in automotive workshops, aerospace manufacturing, metal fabrication, and industrial maintenance. Its pneumatic design means zero electrical risk in wet or oily environments, and the absence of brushes or windings eliminates common electric motor failure points — delivering a longer service life with lower maintenance requirements. The package includes the machine, a guide book, a spanner set, a nozzle, and a collet, providing everything needed to get started immediately.
General Purchase & Comparison Queries
What makes the ID ADG88 different from an electric die grinder?
The ID ADG88 is a pneumatic (air-powered) die grinder, which means it runs on compressed air rather than electricity. This gives it several key advantages: it produces no heat from an electric motor, has no brushes or windings to wear out, and is inherently safer in environments where oil, moisture, or flammable materials are present. At 22,000 RPM and just 0.69 kg, it also delivers a superior power-to-weight ratio compared to most electric equivalents, making it the preferred choice in professional automotive, aerospace, and fabrication settings.
What compressor do I need to run the ADG88 pneumatic die grinder?
The ADG88 requires a compressor capable of supplying a minimum of 4 CFM (113 L/min) at 90 PSI (6.3 KG/CM²). Most standard workshop compressors with a tank capacity of 50 litres or more and a 1.5–2 HP motor will comfortably meet these requirements. Ensure your air line uses a 1/4" BSP fitting to match the tool's air inlet, and use a moisture trap/filter to protect the internal mechanism and extend tool life.
Is the ADG88 suitable for both professional and workshop use?
Yes. The ID ADG88 Pneumatic Die Grinder is designed for professional-grade use across automotive workshops, aerospace manufacturing facilities, metal fabrication shops, and industrial maintenance environments. Its lightweight 0.69 kg body, high 22,000 RPM speed, and durable pneumatic construction make it equally capable as a daily production tool or a precision workshop instrument. It is not a consumer-grade tool — it is built to perform under sustained, heavy-duty conditions.
Product-Specific and Usage Queries
What size grinding bits and accessories are compatible with the ADG88?
The ADG88 accepts accessories with a shank diameter of up to 6.3 mm (1/4"), which is the industry-standard size for die grinder bits. This includes carbide burrs, mounted grinding points, flap wheels, polishing bobs, rotary files, and cut-off wheels — all widely available from industrial tool suppliers. The included collet and spanner set allow for quick, secure bit changes directly on the job.
What tasks can I perform with the ID ADG88 die grinder?
The ADG88 is a versatile pneumatic air tool capable of a wide range of precision tasks, including: deburring and chamfering machined metal parts, weld seam grinding and blending, porting and polishing engine components, surface preparation before painting or coating, engraving and carving on metal or hard materials, and cutting and shaping using appropriate rotary accessories. Its compact 173 mm length makes it especially effective in confined spaces and internal cavities.
How do I maintain the ADG88 for long-term performance?
To maintain peak performance, add a few drops of pneumatic tool oil into the air inlet before each use session. Always use a moisture separator/filter on your air line to prevent water ingress, which is the primary cause of internal corrosion in pneumatic tools. After use, disconnect from the air supply, release any residual pressure, and store in a dry environment. Refer to the included guide book for full maintenance intervals and lubrication specifications.
Problem/Solution-Oriented Queries
The die grinder is running slower than expected — what should I check?
If the ADG88 is running below its rated 22,000 RPM, the most common causes are: insufficient air pressure — verify your compressor is delivering at least 90 PSI at the tool; low CFM output — ensure your compressor can sustain 4 CFM (113 L/min) continuously; a kinked or undersized air hose restricting airflow; or lack of lubrication causing internal friction. Add pneumatic tool oil to the inlet, check all fittings for leaks, and confirm your air line is at least 3/8" internal diameter for optimal flow.
The collet is not holding the grinding bit securely — how do I fix this?
If the bit is slipping in the collet, first ensure you are using a bit with the correct 6.3 mm (1/4") shank diameter — undersized shanks will not grip properly. Use the included spanner set to tighten the collet nut firmly, ensuring the bit is fully seated before tightening. If the collet shows signs of wear, damage, or deformation, replace it with a compatible spare — a worn collet is a safety hazard and will cause vibration and inaccurate grinding. Always inspect the collet and nut before each use session.
There is excessive vibration during use — what could be causing this?
Excessive vibration in the ADG88 is typically caused by one of the following: an unbalanced or damaged grinding accessory — inspect and replace any bit that shows chipping, cracking, or uneven wear; a loose or improperly seated collet — re-tighten using the spanner set; or worn internal bearings from extended use without lubrication. Ensure the tool is properly oiled before each session. If vibration persists after checking these points, discontinue use and have the tool inspected by a qualified pneumatic tool technician to avoid injury.
Machine (1 Pcs), Guide Book (1 Pcs), Wrench (2 Pcs), Japanese Connector (1 Pcs)
