ID ADG66 PNEUMATIC DIE GRINDER MACHINE [AIR TOOL] - 20405
Chat with us
Choose options
Precision-Engineered Power in the Palm of Your Hand
The ID ADG66 Pneumatic Die Grinder is a professional-grade air-powered die grinder machine engineered for precision grinding, deburring, chamfering, and polishing in demanding industrial environments. Delivering a powerful 25,000 RPM rated speed at a maximum operating pressure of 90 PSI (6.3 bar), this compact pneumatic air tool is built for metalworking, automotive, aerospace, and manufacturing applications where accuracy and reliability are non-negotiable.
| Key Features | Perfect For |
|---|---|
|
|
- 25,000 RPM Rated Speed for Maximum Cutting Efficiency: The ADG66 operates at a rated speed of 25,000 RPM, delivering the rotational force needed to cut through metal burrs, smooth weld seams, and polish tight cavities with speed and consistency. This high-speed performance makes it one of the most capable pneumatic die grinders in its class for professional use.
- Compact 120 mm Body with Only 0.37 kg Net Weight: Measuring just 120 mm in length and weighing a mere 0.37 kg, the ADG66 is designed for extended use without operator fatigue. Its slim, ergonomic profile allows access to confined spaces and intricate geometries that larger tools simply cannot reach — ideal for precision grinding in tight spaces.
- 6.3 mm Max Collet Size for Versatile Bit Compatibility: The 6.3 mm maximum collet size accommodates a broad range of standard grinding bits, carbide burrs, mounted points, and polishing attachments. This versatility means one tool can handle multiple tasks across different materials — from aluminium and steel to composites — without the need for additional equipment.
- 90 PSI Maximum Operating Pressure with 4 CFM Air Consumption: Rated for a maximum pressure of 90 PSI (6.3 KG/CM2) and an average air consumption of just 4 CFM (113 L/min), the ADG66 is optimised for efficiency. It delivers consistent power output without overloading your compressor, making it suitable for both workshop and on-site use with standard compressed air systems via its 1/4" air inlet.
- CE and GS Certified for Safety and Compliance: The ADG66 carries both CE (Machine Test) certification and GS (Geprüfte Sicherheit) certification — the German safety mark that goes beyond basic CE compliance to verify that the tool has been independently tested and meets the highest European safety standards. Each unit ships complete with the machine, a guide book, and a spanner set, ensuring you are ready to work straight out of the box.
General Purchase & Comparison Queries
What makes the ADG66 different from other pneumatic die grinders on the market?
The ID ADG66 Pneumatic Die Grinder stands out through its combination of 25,000 RPM rated speed, an ultra-lightweight 0.37 kg body, and dual safety certifications — CE (Machine Test) and GS (Geprüfte Sicherheit). The GS mark in particular is awarded only after independent third-party testing, making it a higher assurance of quality than CE alone. Its low 4 CFM air consumption also means it works efficiently with most standard workshop compressors without straining the system.
Is the ADG66 suitable for professional or heavy-duty industrial use?
Yes. The ADG66 is designed for professional and industrial applications including metalworking, automotive repair, aerospace component finishing, and fabrication. Its 25,000 RPM motor, 90 PSI maximum operating pressure, and robust build quality make it well-suited for sustained use in demanding workshop and on-site environments. The included spanner set and guide book further support professional setup and maintenance.
What air compressor do I need to run the ADG66?
The ADG66 requires a compressed air supply capable of delivering up to 90 PSI (6.3 bar) with an average air consumption of 4 CFM (113 L/min). A standard workshop compressor with a 1/4" BSP or NPT outlet is compatible with the tool's 1/4" air inlet. For continuous use, ensure your compressor's output CFM rating meets or exceeds the tool's consumption to maintain consistent performance.
Product-Specific and Usage Queries
What collet sizes and accessories are compatible with the ADG66?
The ADG66 accepts accessories with a shank diameter of up to 6.3 mm (1/4"), which is the industry-standard size for die grinder bits. This includes carbide burrs, mounted grinding stones, flap wheels, polishing bobs, and cut-off wheels. The wide compatibility means you can use the ADG66 for deburring, porting, surface finishing, and polishing without needing to purchase a separate tool for each task.
How do I maintain and lubricate the ADG66 for long-term performance?
To maintain peak performance, add 2-3 drops of pneumatic tool oil into the 1/4" air inlet before each use or at the start of each working day. It is also recommended to use an inline air filter-regulator-lubricator (FRL) unit to ensure clean, dry, and properly lubricated air reaches the tool. Avoid running the ADG66 above its maximum rated pressure of 90 PSI, as over-pressurisation can accelerate internal wear. Refer to the included guide book for full maintenance intervals.
Can the ADG66 be used for polishing as well as grinding?
Yes. The ADG66's 25,000 RPM speed and 6.3 mm collet make it equally effective for polishing tasks when fitted with appropriate attachments such as felt bobs, polishing wheels, or foam pads. Its compact 120 mm body allows access to recessed areas, cavities, and contoured surfaces that are difficult to reach with larger polishing tools — making it a versatile choice for both material removal and surface finishing work.
Problem/Solution-Oriented Queries
The grinder is losing speed or power during use — what should I check?
A drop in speed or power is most commonly caused by insufficient air supply. First, verify that your compressor is delivering at least 4 CFM at 90 PSI to the tool. Check for kinked or undersized air hoses, which can restrict airflow. If the air supply is adequate, the issue may be lack of lubrication — add pneumatic tool oil to the inlet and run the tool briefly. If the problem persists, inspect the air inlet filter for blockages and consult the included guide book for further diagnostics.
The collet is not holding the bit securely — how do I fix this?
If the collet is not gripping the bit firmly, first ensure you are using a bit with the correct 6.3 mm (1/4") shank diameter. Use the included spanner set to tighten the collet nut securely — hand-tightening alone is not sufficient for safe operation at 25,000 RPM. Inspect the collet and collet nut for wear or damage; if either component shows signs of deformation, replace them before continuing use. Never operate the grinder with a loose or improperly seated bit.
The tool is vibrating excessively — is this normal and how can I reduce it?
Some vibration is normal during operation, particularly when using aggressive grinding bits. However, excessive vibration is usually caused by an unbalanced or damaged accessory — inspect your grinding bit or burr for chips, cracks, or uneven wear and replace if necessary. Ensure the bit is fully seated and the collet nut is properly tightened using the spanner set. Operating above the 90 PSI maximum pressure can also cause abnormal vibration; check your regulator settings. If vibration continues with a new, correctly fitted bit, contact your supplier for inspection.

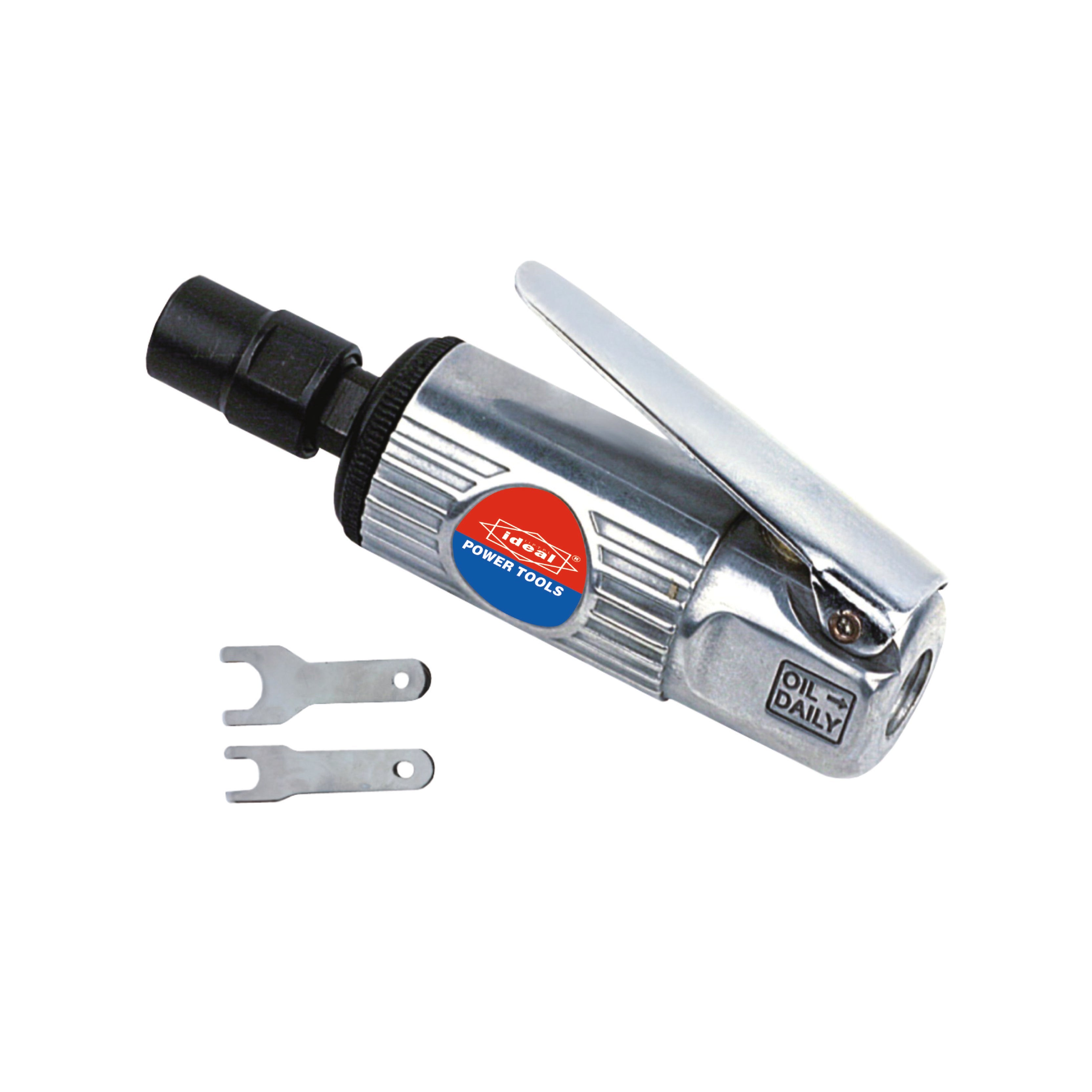

Machine (1 Pcs), Guide Book (1 Pcs), Small Wrench (1 Pcs), Big Wrench (1 Pcs), Japanese Connector (1 Pcs)
