ID AD10 PNEUMATIC DRILL MACHINE [AIR TOOL] - 26854
Chat with us
Choose options
Precision Air-Powered Drilling — Built for Professionals Who Demand More

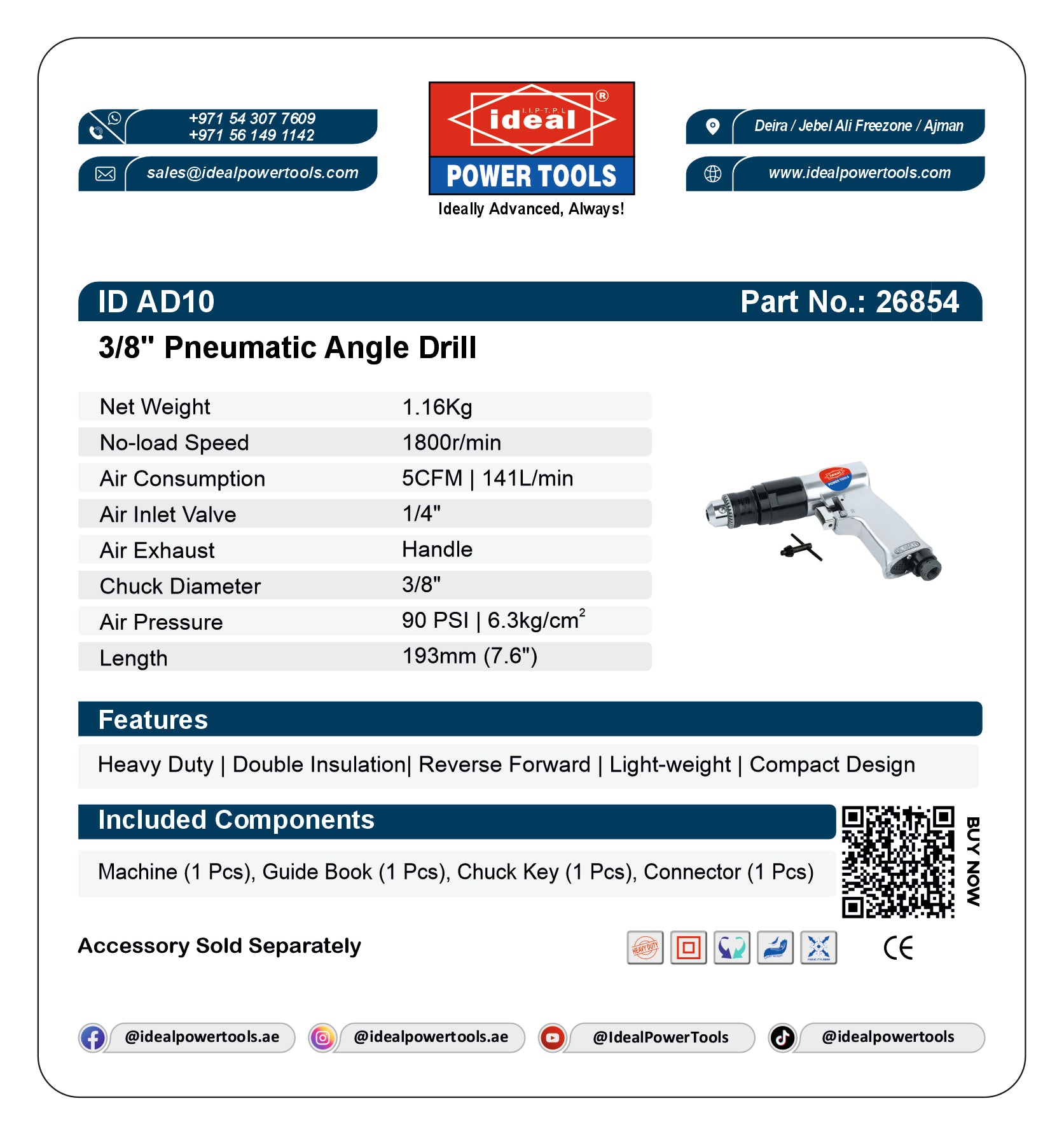

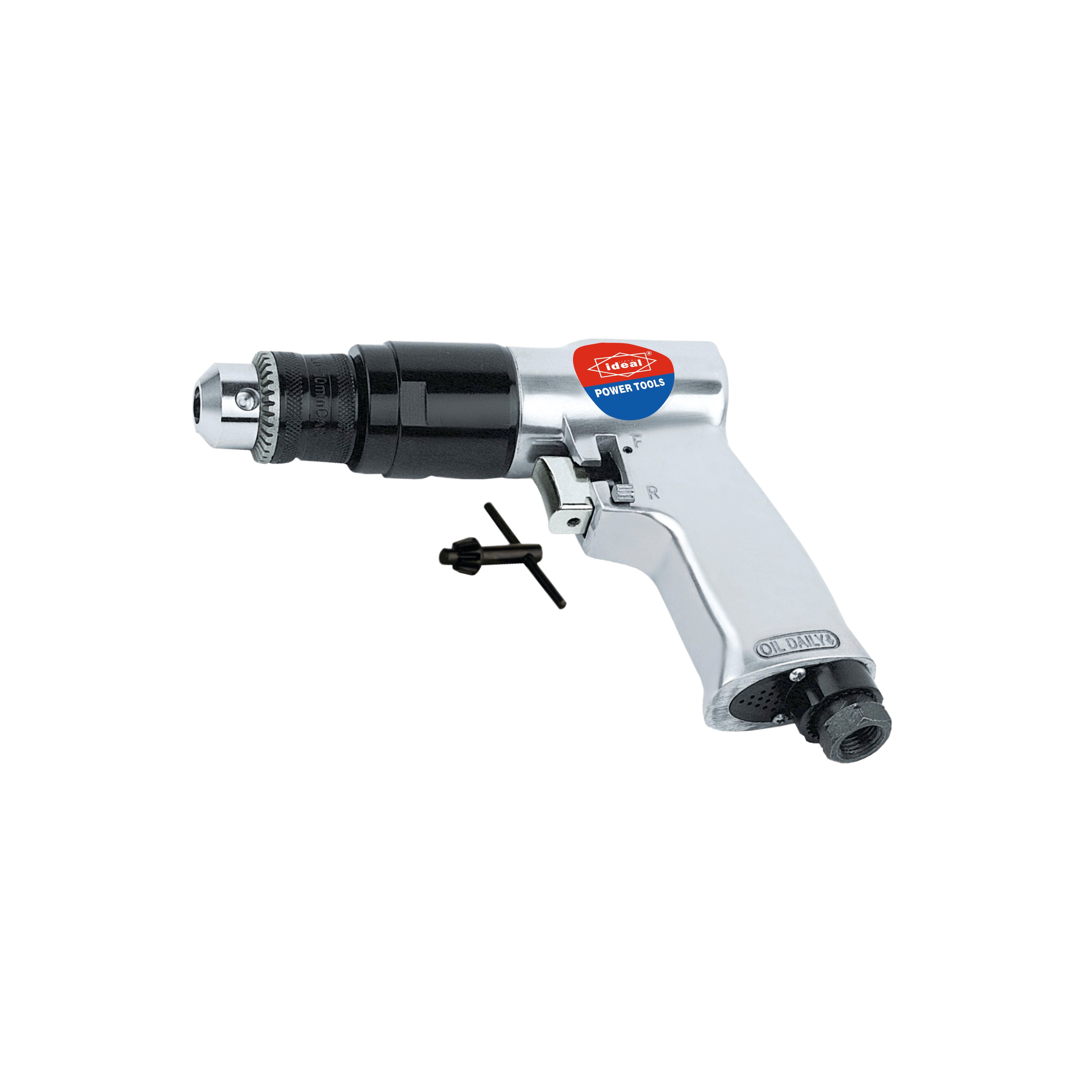

The ID AD10 Pneumatic Drill Machine is a professional-grade air-powered drill engineered for precision, speed, and durability in demanding industrial environments. Featuring a 3/8" chuck capacity, 1800 RPM rated speed, and a compact 193mm body length, this pneumatic air tool delivers consistent high-torque performance across automotive, manufacturing, and construction applications. Powered by compressed air at up to 90 PSI, it offers the reliability and control that professionals depend on.
| Key Features | Perfect For |
|---|---|
|
|
- High-Speed Pneumatic Motor at 1800 RPM: The AD10 operates at a rated speed of 1800 RPM, delivering rapid bit rotation that cuts through metal, wood, and composite materials with minimal effort. This speed is optimized for both drilling and driving tasks, ensuring clean, accurate holes every time without overheating or power loss.
- 3/8" Keyless-Compatible Chuck (9.525mm): The 3/8-inch chuck capacity accommodates a wide range of standard drill bits and driver attachments, making the AD10 highly versatile across job sites. The chuck key is included in the package, ensuring secure bit clamping and zero slippage during high-torque operations.
- 90 PSI Maximum Operating Pressure: Rated for up to 90 PSI (6.3 KG/CM²), the AD10 harnesses the full power of your compressor to deliver consistent torque output. The pneumatic design eliminates battery dependency, ensuring uninterrupted operation during long shifts in automotive bays, factories, and construction sites.
- Efficient Air Consumption at 5 CFM (141 L/min): With an average air consumption of 5 CFM (141 litres per minute), the AD10 is designed to work efficiently with most standard workshop compressors. The 1/4-inch air inlet is compatible with universal quick-connect fittings, enabling fast tool changes and minimal downtime on the job.
- Compact and Ergonomic 193mm Body Design: At just 193mm in length and weighing only 1.16 kg, the AD10 is engineered for one-handed use in confined spaces such as engine bays, wall cavities, and tight structural joints. The slim profile reduces wrist strain during extended use, improving both accuracy and operator comfort throughout the workday.
- CE Machine Test Certified for Safety and Compliance: The ID AD10 carries CE (Machine Test) certification, confirming it meets European safety, health, and environmental protection standards. Each unit ships complete with the machine, a guide book for setup and operation, a chuck key for bit changes, and a connector for immediate air line integration — everything needed to get to work straight out of the box.
General Purchase & Comparison Queries
Is the ID AD10 suitable for professional use, or is it only for DIY?
The ID AD10 Pneumatic Drill Machine is built for professional-grade use. With a 1800 RPM rated speed, 90 PSI maximum operating pressure, and a CE Machine Test certification, it is designed to handle continuous operation in automotive workshops, manufacturing facilities, and construction sites. While it is equally capable for serious DIY projects, its specifications and build quality are firmly in the professional tool category.
How does a pneumatic drill compare to a cordless electric drill?
A pneumatic (air-powered) drill like the AD10 offers several advantages over cordless electric drills: it delivers consistent torque without battery degradation, runs cooler during extended use, and is generally lighter for its power output. The AD10 weighs just 1.16 kg and never needs recharging — as long as your compressor is running, so is your drill. The trade-off is that it requires a compressed air supply (minimum 90 PSI, 5 CFM), making it ideal for fixed workshop environments rather than remote job sites without power.
What compressor do I need to run the ID AD10?
The ID AD10 requires a compressor capable of supplying at least 90 PSI (6.3 KG/CM²) and a sustained output of 5 CFM (141 L/min). Most mid-range workshop compressors with a tank capacity of 50 litres or more will comfortably support this tool. Ensure your air line uses a 1/4-inch quick-connect fitting to match the AD10's air inlet for a secure, leak-free connection.
Product-Specific and Usage Queries
What drill bit sizes are compatible with the AD10?
The AD10 features a 3/8-inch (9.525mm) chuck capacity, which accommodates the vast majority of standard drill bits used in metalworking, woodworking, and general construction. This includes twist bits, spade bits, and driver bits up to 3/8 inch in shank diameter. A chuck key is included in the package to ensure a firm, secure grip on any bit you use.
Can the ID AD10 be used for driving screws as well as drilling?
Yes. The ID AD10 can be used for both drilling holes and driving screws when fitted with the appropriate driver bit. Its 1800 RPM speed and consistent torque delivery make it effective for fastening tasks in wood, metal, and composite materials. For best results when driving screws, use a compatible screwdriver bit within the 3/8-inch chuck and regulate your compressor pressure to suit the material and screw size.
What is included in the box with the AD10?
Each ID AD10 ships as a complete ready-to-use kit. The package includes the drill machine unit itself, a guide book covering setup and safe operation, a chuck key for securing drill bits, and an air connector for immediate connection to your compressor air line. Simply connect to a compatible air supply and you are ready to work.
Problem/Solution-Oriented Queries
The drill feels underpowered — what could be causing this?
If the ID AD10 feels underpowered, the most common cause is insufficient air supply. Check that your compressor is delivering at least 90 PSI and a sustained flow of 5 CFM (141 L/min). Also inspect the air line for kinks, leaks, or undersized hose diameter that may be restricting airflow. Ensure the 1/4-inch connector is fully seated and free of debris. If the tool has been in use for an extended period, a drop in compressor tank pressure may also temporarily reduce performance — allow the tank to recharge before continuing.
The chuck is not holding the drill bit securely — how do I fix this?
A loose bit in the 3/8-inch chuck is almost always caused by insufficient tightening. Use the included chuck key to firmly tighten all three chuck jaws evenly around the bit shank. Ensure the bit shank is fully inserted before tightening. If the chuck continues to slip after proper tightening, inspect the chuck jaws for wear or debris and clean them with compressed air. Persistent slippage may indicate a worn chuck that requires replacement.
Machine (1 Pcs), Guide Book (1 Pcs), Chuck Key (1 Pcs), Connector (1 Pcs)
