ID AD06-10 ELECTRIC ANGLE DRILL MACHINE [G-240V] - 21629
Chat with us
Choose options

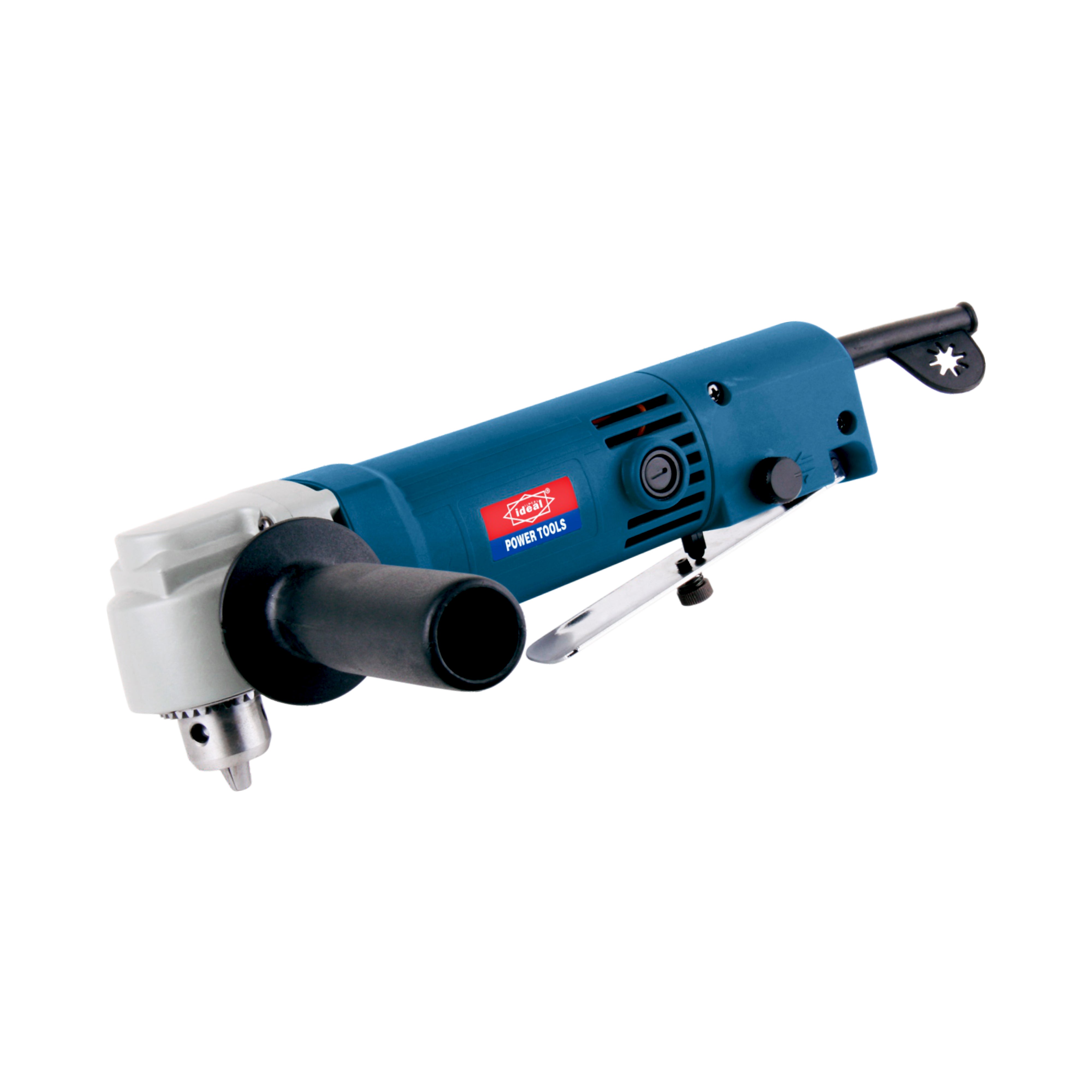

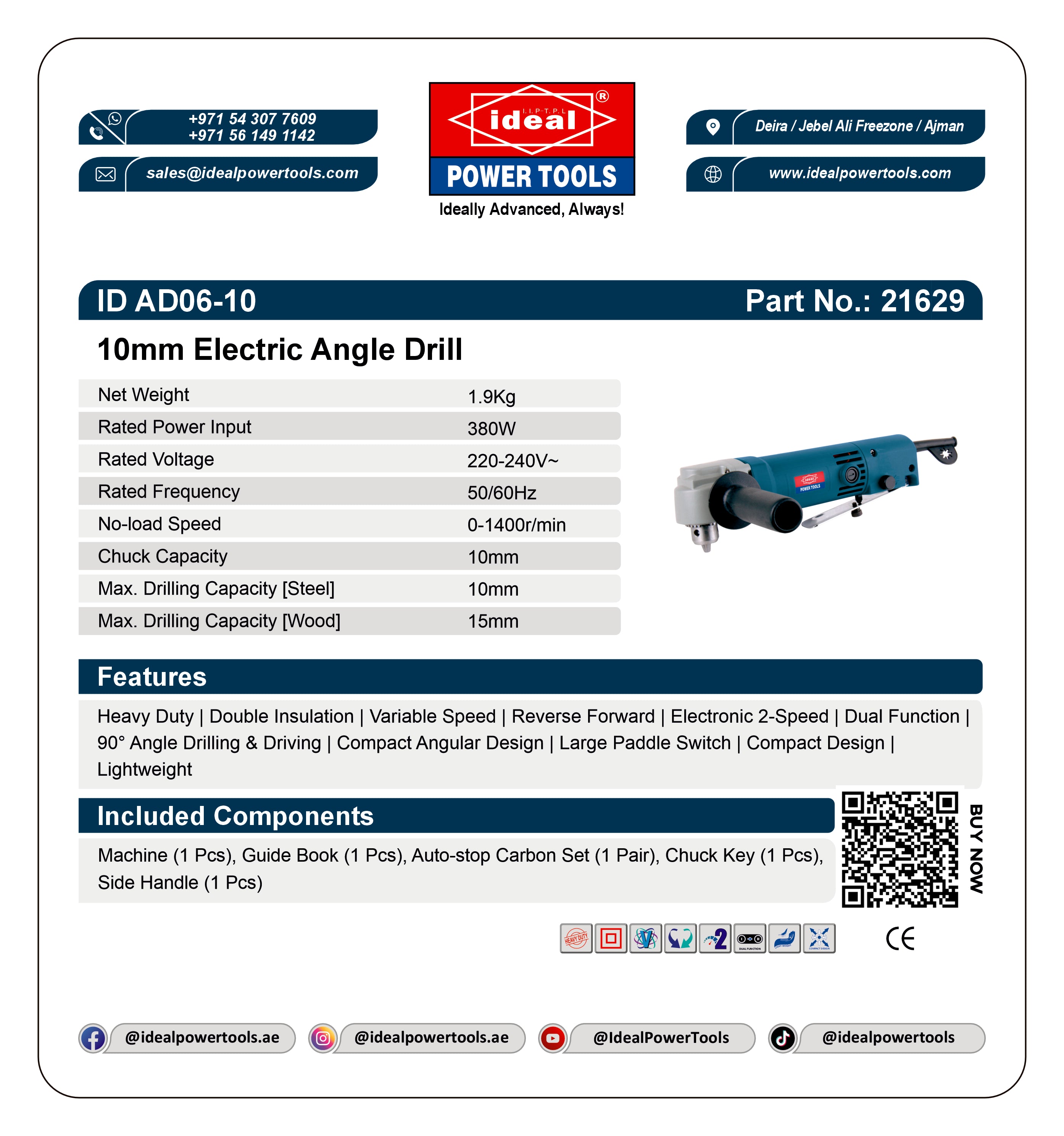

The ID AD06-10 Electric Angle Drill Machine is a 380W professional-grade angle drill engineered for precision 90-degree drilling and driving in tight corners, confined spaces, and hard-to-reach areas. Rated at 220–240V with a variable speed of 0–1400 r/min and a 10mm chuck capacity, this compact angle drill is the go-to tool for electricians, plumbers, HVAC technicians, and carpenters who demand reliability in restricted work zones. Supplied with a Type G (British 3-Pin) plug, it is ready for use across UAE, UK, and GCC markets straight out of the box.
| Key Features | Perfect For |
|
|
Reach Every Corner — The Professional Angle Drill Built for Confined Spaces
- 380W Heavy-Duty Motor with 0–1400 r/min Variable Speed: The powerful 380-watt motor delivers consistent torque across the full variable speed range, allowing the operator to match drilling speed precisely to the material — from slow, controlled starts in steel up to full speed in timber. The variable speed trigger responds proportionally to trigger pressure, giving craftsmen the fine motor control needed to avoid splitting wood or skating on metal surfaces.
- Fixed 90-Degree Angle Head with 10mm Chuck Capacity: The right-angle head design positions the chuck perpendicular to the motor body, enabling the tool to fit into spaces as narrow as the head profile itself. The 10mm keyed chuck accepts a full range of standard twist drill bits, spade bits, and screwdriver bits, making it compatible with virtually every professional bit set on the market. Maximum drilling capacity is 10mm in steel and 15mm in wood.
- Electronic 2-Speed System — Screw Mode and Drill Mode: Unlike mechanical gear-shift drills, the electronic 2-speed system switches between Mode 1 (optimised for driving screws at controlled torque) and Mode 2 (optimised for high-speed drilling) without any physical gear engagement. This eliminates gear-strip risk and ensures smooth, repeatable transitions between tasks on the same job site.
- Compact, Lightweight Body at 1.9 kg with Large Paddle Switch: Weighing just 1.9 kg, the AD06-10 significantly reduces operator fatigue during extended overhead or lateral drilling sessions. The super-compact angular body is purpose-built with a low-profile, narrow structure so it can enter stud bays, ceiling voids, and cabinet interiors where bulkier tools are simply unusable. The large paddle switch provides a wide, ergonomic contact surface that is easy to actuate even when wearing heavy work gloves in confined positions.
- Double Insulation and CE-Certified Safety Engineering: The double insulation system creates two independent layers of electrical protection between the live motor components and the outer tool body, meaning no earth wire or grounding is required for safe operation. This design is validated by CE Machine Test certification, confirming the tool meets European safety directives for electrical power tools. The included auto-stop carbon brush set further protects the motor by automatically cutting power when the brushes reach end-of-life, preventing armature damage and extending overall tool lifespan.
- Complete Ready-to-Work Kit with Side Handle and Chuck Key: Every AD06-10 ships as a complete working package including the machine, a side handle for two-handed stability during heavy drilling, a chuck key for secure bit changes, an auto-stop carbon brush set for long-term motor protection, and a guide book — everything needed to begin work immediately without additional accessory purchases.
The AD06-10 carries CE (Machine Test) certification, confirming compliance with European electrical safety directives for professional power tools. The package includes the machine, guide book, auto-stop carbon brush set (1 pair), chuck key, and side handle — all components required for immediate professional deployment.
General Purchase & Comparison Queries
What plug type does the AD06-10 come with, and is it compatible with UAE and UK sockets?
The AD06-10 is supplied with a Type G (British 3-Pin) plug, which is the standard plug type used across the UAE, UK, and most GCC countries. It operates on 220–240V at 50/60Hz, making it fully compatible with the local mains supply without any adapter or converter required.
How does the AD06-10 differ from a standard corded drill?
A standard corded drill has its chuck aligned with the motor axis, meaning the entire tool body must fit into the work area. The AD06-10 features a fixed 90-degree angle head, positioning the chuck perpendicular to the motor. This allows the tool body to remain outside the confined space while the head and bit reach inside — making it indispensable for electrical, plumbing, HVAC, and joinery work in wall cavities, floor voids, and tight corners where a standard drill physically cannot operate.
Is the AD06-10 suitable for both professional tradespeople and serious DIY users?
Yes. The 380W motor, CE-certified double insulation, electronic 2-speed system, and auto-stop carbon brush protection are all professional-grade specifications. At the same time, the 1.9 kg lightweight body, variable speed trigger, and large paddle switch make it accessible and easy to control for experienced DIY users tackling renovation or home improvement projects that require drilling in confined spaces.
Product-Specific and Usage Queries
What is the maximum drilling capacity of the AD06-10 in steel and wood?
The AD06-10 has a maximum drilling capacity of 10mm in steel and 15mm in wood. The 10mm keyed chuck accepts standard twist drill bits, spade bits, and screwdriver bits within this range. For best results in steel, use Mode 2 (drill mode) at a controlled speed with appropriate cutting fluid to extend bit life.
What is the difference between Mode 1 and Mode 2 on the electronic 2-speed system?
Mode 1 is the screw/drive mode, optimised for driving fasteners at a controlled, lower speed range to prevent over-torquing or stripping screw heads. Mode 2 is the drill mode, which allows the motor to reach its full 0–1400 r/min variable speed range for efficient material removal when boring holes in steel, wood, or similar materials. Switching between modes is done electronically — there is no mechanical gear engagement, ensuring smooth and reliable transitions.
Does the AD06-10 support reverse operation, and when should I use it?
Yes, the AD06-10 is equipped with a forward and reverse control. Reverse operation is used primarily for removing screws and fasteners, backing a drill bit out of a hole without jamming, or freeing a bit that has become stuck in the material. Simply switch the direction control before squeezing the trigger — the variable speed trigger works in both directions for full control.
Problem/Solution-Oriented Queries
The drill has stopped working mid-job — what could be the cause?
The most likely cause is the auto-stop carbon brush system activating. The AD06-10 includes an auto-stop carbon brush set that automatically cuts power to the motor when the carbon brushes reach end-of-life, protecting the armature from damage. If the drill stops suddenly and will not restart, inspect and replace the carbon brushes using the included spare set. If the brushes appear intact, check that the power supply is live and the plug is fully seated in the socket.
The drill feels hot after extended use — is this normal, and how can I prevent overheating?
Some heat generation is normal during sustained heavy-duty drilling, particularly in dense materials like steel. To minimise heat build-up: use the correct Mode 2 (drill mode) for boring operations, apply appropriate cutting fluid when drilling steel, allow the tool to run at a moderate speed using the variable speed trigger rather than full throttle continuously, and take short rest intervals between extended drilling sequences. The double insulation construction ensures that heat from internal components does not create an electrical hazard, but prolonged overheating can reduce motor lifespan.
The chuck is not gripping the drill bit securely — how do I fix this?
The AD06-10 uses a keyed chuck, which requires the included chuck key to tighten and release bits properly. Insert the chuck key into each of the three chuck key holes in sequence and tighten firmly until the bit is fully clamped with no lateral movement. Never rely on hand-tightening alone with a keyed chuck — always use the chuck key to ensure a secure, concentric grip that prevents bit slippage during operation.
Machine (1 Pcs), Guide Book (1 Pcs), Auto-stop Carbon Set (1 Pair), Chuck Key (1 Pcs), Side Handle (1 Pcs)
