ID 827 PNEUMATIC SPRAY GUN MACHINE [AIR TOOL] - 23308

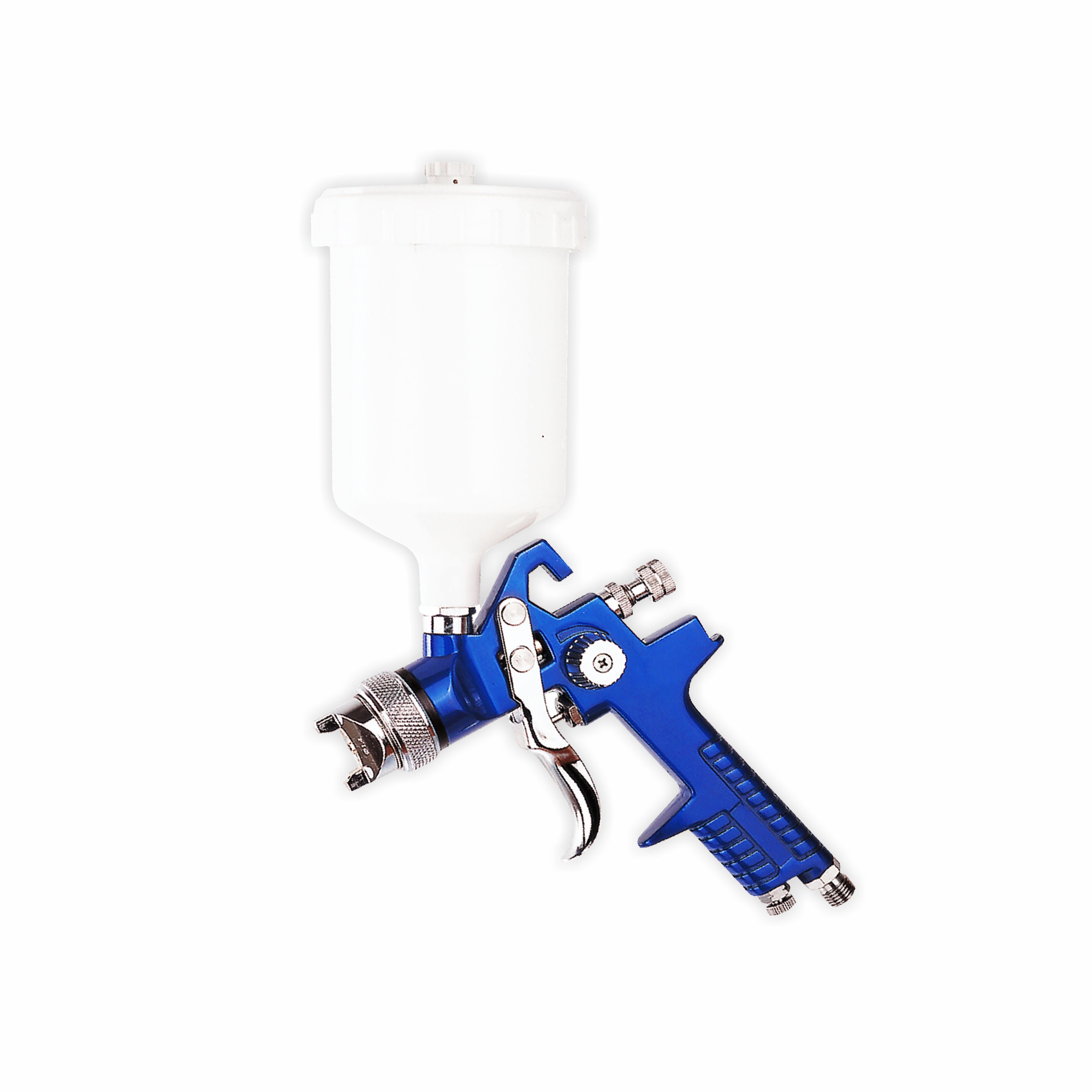

The ID 827 Pneumatic Spray Gun is an HVLP (High-Volume, Low-Pressure) air tool that uses compressed air at 410 NI/min to atomize paint and coatings into fine particles. Unlike conventional high-pressure spray guns that waste significant material through overspray, the HVLP system transfers more coating directly onto the surface, resulting in a smoother finish, less waste, and reduced cleanup time — making it a more efficient and cost-effective choice for professional and semi-professional use.

The ID 827 ships as a complete ready-to-use kit. The box contains the spray gun machine, one precision nozzle, one cleaning brush, one air inlet filter, one tool wrench, and one guide book. No additional accessories are required to begin spraying immediately after connecting to a compatible compressed air supply.

Yes. The ID 827 is engineered to meet the demands of professional automotive refinishing, industrial manufacturing, and construction finishing, while remaining accessible for serious DIY home improvement and furniture coating projects. Its adjustable spray pattern and fluid controls allow users of varying skill levels to achieve consistent, high-quality results on small to medium-sized surfaces.

The ID 827 requires a compressed air supply capable of delivering the airflow needed to sustain the gun's HVLP rating of 410 NI/min. We recommend using an air compressor with sufficient CFM (cubic feet per minute) output and a regulated pressure supply to match the gun's operating requirements. Refer to the included guide book for the exact inlet pressure specifications and compressor compatibility guidelines.

Yes. The ID 827 features independent adjustment controls for fan pattern width, fluid flow rate, and air pressure. This allows the operator to fine-tune the spray characteristics to suit different coating viscosities and surface types — from wide fan patterns for large flat surfaces to narrow patterns for detail work and edges. The included tool wrench also facilitates quick nozzle changes for different application requirements.

The ID 827 is compatible with a wide range of liquid coatings including automotive paints, lacquers, varnishes, stains, primers, and sealers. The precision nozzle and adjustable fluid controls allow the gun to handle both thin and moderately viscous materials. For very thick coatings, thinning to the manufacturer's recommended viscosity is advised to achieve optimal atomization and finish quality.

An uneven or sputtering spray pattern is most commonly caused by a blocked or partially clogged nozzle, insufficient air pressure from the compressor, or coating that is too thick for the current fluid setting. Start by removing and cleaning the precision nozzle using the included brush, then check that the air inlet filter is clean and free of moisture or debris. Verify that your compressor is delivering adequate airflow at 410 NI/min and adjust the fluid control knob to reduce output if the coating viscosity is high.

After each use, flush the gun immediately with an appropriate cleaning solvent compatible with the coating used (water for water-based paints, mineral spirits or lacquer thinner for solvent-based coatings). Use the included cleaning brush to scrub the nozzle and fluid passages. Remove the nozzle using the tool wrench for a thorough clean, and inspect the air inlet filter for moisture or contamination — replace it if blocked. Regular cleaning after every session is the single most effective way to extend the service life of the spray gun and maintain consistent finish quality.
