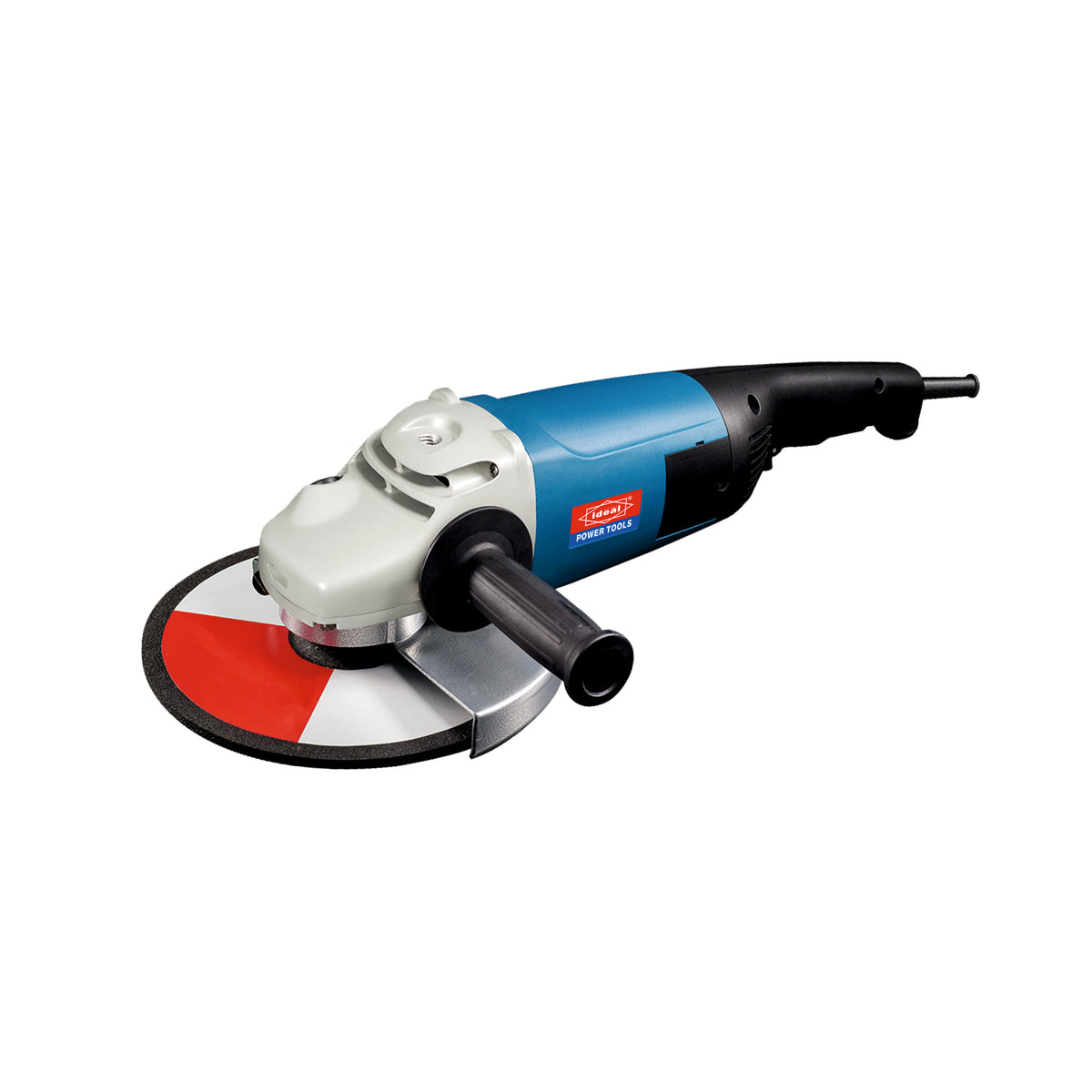

The ID 24-230DC 9" Electric Angle Grinder Machine is a 2200W heavy-duty angle grinder engineered for demanding metalworking, concrete grinding, tile cutting, and surface preparation tasks. Rated at 220-240V and compatible with 230mm grinding wheels, this Bosch-type angle grinder delivers professional-grade performance with a Type G (British 3-Pin) plug, making it ideal for UAE, UK, and GCC markets. Built with double insulation and CE & CB certified, it is a reliable workhorse for construction sites, fabrication workshops, and industrial maintenance operations.

Key Features

Perfect For

2200W Heavy-Duty Motor — engineered for sustained high-load performance
Double Insulation — electrical components fully isolated from outer casing for maximum operator safety
Spindle Lock — enables fast, single-handed disc changes with the included wrench
Large Trigger Switch — ergonomic design for precise throttle control during extended use
230mm Max Wheel Diameter — accepts standard 22mm bore grinding, cutting, and polishing discs

Heavy metal cutting and grinding on structural steel, rebar, and pipes
Concrete and masonry surface preparation on construction sites
Tile cutting and shaping for flooring and cladding installations
Weld seam removal and surface finishing in fabrication workshops
Industrial maintenance and equipment repair operations

Professional Power, Precision Control — Built to Outlast the Job

2200W Rated Power Input at 220-240V / 50-60Hz — This grinder draws a full 2200 watts of power from a standard single-phase supply, delivering consistent torque under load. Whether you are cutting through thick steel plate or grinding down a weld bead, the motor maintains speed without bogging down, making it a dependable tool for continuous professional use.
230mm Wheel Diameter with 22mm Bore — Maximum Versatility — The large 230mm (9-inch) wheel capacity allows you to tackle deep cuts and wide grinding passes that smaller 115mm or 125mm grinders simply cannot achieve. The standardized 22mm hole diameter ensures compatibility with a wide range of aftermarket grinding, cutting, flap, and polishing discs available in the UAE and GCC markets.
Double Insulation for Enhanced Operator Safety — The tool is constructed with a double-insulated housing, meaning the internal electrical components are completely separated from the outer body. This eliminates the risk of electric shock even if internal insulation fails, providing a critical layer of protection on wet or dusty job sites where grounding cannot always be guaranteed.
Spindle Lock and Auxiliary Handle for Controlled Operation — The spindle lock mechanism freezes the output shaft, allowing disc changes with a single hand using the supplied wrench — no need for a second person to hold the tool. The included auxiliary side handle provides a firm two-handed grip, reducing operator fatigue and improving directional control during heavy grinding passes.
Auto-Stop Carbon Brush Set Included — Extended Service Life — Unlike many grinders sold without consumables, this machine ships with an auto-stop carbon brush set. When the brushes reach end-of-life, the motor automatically cuts out before damage occurs, protecting the armature and significantly reducing long-term maintenance costs. The package also includes a guide book and wrench, so the tool is ready to work straight out of the box.
CE and CB Certified — Internationally Tested Compliance — This angle grinder carries CE certification (Machine Test) confirming conformity with European safety directives, and CB certification (Comprehensive Machine Test) validating performance and safety to international IEC standards. These certifications are recognized across the GCC, UK, and EU, supporting cross-border procurement and regulatory compliance for contractors and facility managers.
Net Weight of 5.5 kg — Robust Build Without Compromise — At 5.5 kg, this machine is built with the structural rigidity required for a 9-inch grinder operating at full load. The weight distribution is balanced to reduce wrist strain during overhead or lateral grinding, while the robust housing withstands the vibration and impact typical of heavy construction environments.

This machine is supplied complete with the grinder unit, an auxiliary handle for two-handed control, a disc wrench for fast accessory changes, an auto-stop carbon brush set for extended motor life, and a guide book — all included in the box. It carries CE (Machine Test) and CB (Comprehensive Machine Test) certifications, confirming compliance with international electrical safety and performance standards and making it suitable for use across UAE, GCC, UK, and EU regulated environments.

General Purchase & Comparison Queries

What plug type does this angle grinder use, and is it compatible with UAE sockets?

This grinder is fitted with a Type G plug (British 3-Pin), which is the standard plug type used across the UAE, UK, and most GCC countries. It operates on 220-240V / 50-60Hz, matching the UAE mains supply exactly. No adapter or voltage converter is required — simply plug in and start working.

How does this 9" grinder compare to a 4.5" or 5" angle grinder?

The 230mm (9-inch) wheel on this machine allows significantly deeper cuts and wider grinding passes compared to 115mm (4.5") or 125mm (5") grinders. The 2200W motor also delivers substantially more torque, making it the right choice for heavy structural steel, thick concrete slabs, and large surface areas. Smaller grinders are better suited for light finishing work and tight spaces, while this machine is built for high-volume, high-load professional applications.

Is this angle grinder CE and CB certified?

Yes. This machine holds CE certification (Machine Test), confirming compliance with European Union machinery and electrical safety directives, and CB certification (Comprehensive Machine Test), which validates the product against international IEC safety standards. These certifications are recognized by regulatory authorities across the UAE, GCC, UK, and EU, making this grinder suitable for use on regulated construction and industrial sites.

Product-Specific and Usage Queries

What disc size and bore diameter does this grinder accept?

This grinder accepts wheels up to 230mm (9 inches) in diameter with a 22mm hole (bore) diameter — the international standard for large angle grinder accessories. It is compatible with a wide range of grinding discs, cutting discs, flap discs, and wire cup brushes available from major accessory brands. Always ensure the disc's maximum RPM rating meets or exceeds the grinder's no-load speed before use.

How do I change the disc on this grinder?

Disc changes are straightforward thanks to the spindle lock feature. Press and hold the spindle lock button to freeze the output shaft, then use the included wrench to loosen the locking nut. Remove the old disc, fit the new one, and re-tighten the nut with the wrench while holding the spindle lock. The entire process can be completed single-handedly in under a minute. Always disconnect the grinder from the power supply before changing accessories.

What does the auto-stop carbon brush set do?

Carbon brushes are wear components inside the motor that transfer electrical current to the rotating armature. Over time they wear down. The auto-stop carbon brush set included with this grinder is designed to automatically cut motor power when the brushes reach the end of their service life — before armature damage can occur. This protects the most expensive internal component of the motor and significantly extends the overall service life of the machine. Replacement brush sets are a standard consumable available from power tool suppliers.

Problem/Solution-Oriented Queries

The grinder stopped working mid-use — what could be the cause?

The most common cause of a sudden mid-use shutdown is the auto-stop carbon brush set reaching end-of-life and cutting power to protect the motor — this is a normal and intentional safety function. Inspect the carbon brushes and replace them if worn. Other causes include thermal overload (the motor overheating from sustained heavy use — allow it to cool for 10-15 minutes before restarting), a tripped circuit breaker at the supply panel, or a loose connection at the plug. Always inspect the power cable and plug for damage before resuming use.

The grinder vibrates excessively — is this normal?

Some vibration is normal for a 2200W large-diameter angle grinder, particularly when using aggressive grinding or cutting discs. However, excessive or sudden vibration usually indicates a damaged, unbalanced, or incorrectly mounted disc. Stop the machine immediately, disconnect from power, and inspect the disc for cracks, chips, or improper seating on the spindle. Ensure the locking nut is fully tightened using the wrench. Always use the auxiliary handle for a firm two-handed grip to manage vibration safely during operation.

Can this grinder be used for cutting tiles and concrete, or only metal?

This grinder is a multi-material tool. By simply swapping the disc, it can handle metal grinding and cutting, concrete surface preparation, tile cutting, masonry work, and weld seam removal. Use a diamond blade for concrete and tile, a metal cutting disc for steel and rebar, and a flap disc for surface finishing and paint removal. Always match the disc type and RPM rating to the material and task, and fit the appropriate guard position as described in the included guide book.

Heavy Duty: This product is powered by innovative technology and is engineered to outlast.
Double Insulation: This product is designed in such a way that the electrical parts can never come into contact with the outer casing.
Constant Speed: This machine has constant electronics for constant speeds even under load for particularly fast drilling progress.
Metal Gear Box: Enhances durability and reliability with a robust metal gearbox. Provides smooth and efficient power transmission for optimal performance.
Spindle Lock: Enables easy and convenient bit changes with a single-handed operation. Locks the spindle in place for secure and hassle-free accessory changes.
Ergonomic Full-Hand Trigger Switch: Large extended trigger design allows multi-finger activation, significantly reducing hand fatigue during continuous, long-duration cutting and grinding.
Industrial 2200W High-Torque Motor: Heavy-duty power engine designed for relentless performance in structural steel fabrication, reinforced concrete cutting, and heavy masonry grinding.
Calibrated 6,600 RPM No-Load Speed: Optimized rotational speed specifically matched for 230 mm (9") large-diameter discs to deliver maximum torque and extend wheel longevity under extreme loads.
9" (230 mm) Maximum Cutting Depth: Built for deep slicing through thick pipes, beams, paving slabs, and masonry blockwork with a standard 22 mm wheel bore.
5.5 kg Robust Frame: Provides essential down-force and stability during heavy grinding and straight-line cutting, absorbing operation vibration.
Universal M14 Spindle Thread: Standard 14mm spindle ensures fast accessory installation and broad fitment across all standard 230 mm discs, diamond blades, and wire cups.
Adjustable Guard: Features an adjustable protective guard that can be easily rotated to deflect sparks away from the operator at any working angle.
Multi-Position Side Handle: Equipped with a 3-position auxiliary side handle (left or right or top mounting) for enhanced stability, controlled handling, and optimal comfort for both left- and right-handed users.
